Revised July-2017 I/O 4-19
Note: You must connect the return lines (such as pin 17 on SKT-E) to
a 24 Volts dc source. The DIGIN lines (such as pin 13 on SKT-
E) expect typical “open collector” (referenced to GND)
connections.

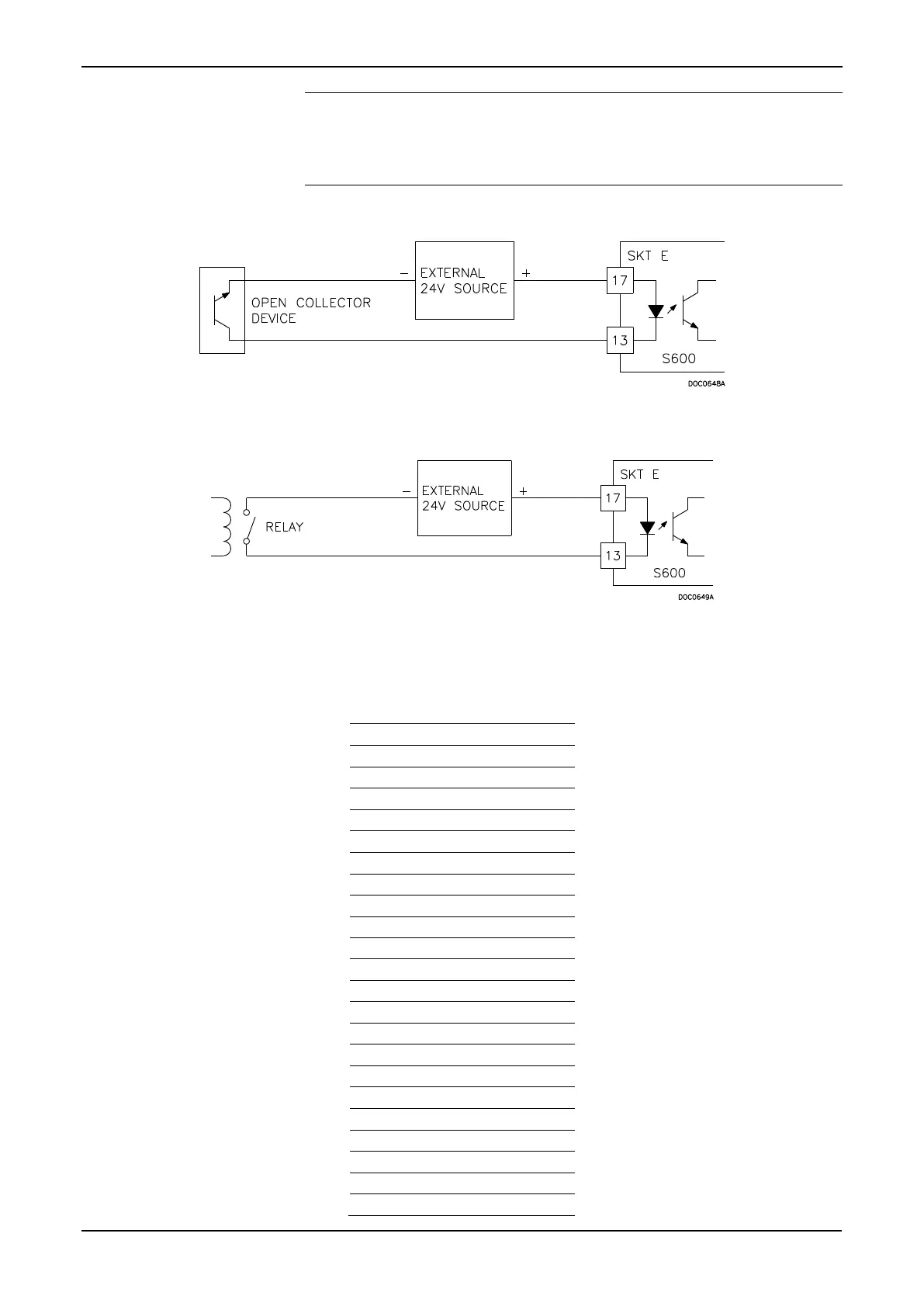

Refer to Figures 4-23 and 4-24 for field wiring schematics.
Figure 4-23. Digital Input Schematic (Open Collector Device)
Figure 4-24. Digital Input Schematic (Relay)
Table 4-15. DIGIN Pin Connections for SKT-E
Pin
Function
13
DIGIN-CH1
14
DIGIN-CH2
15
DIGIN-CH3
16
DIGIN-CH4
17
RETURN CH1-4
18
DIGIN-CH5
19
DIGIN-CH6
1
DIGIN CH-17
2
DIGIN CH-18
3
DIGIN CH-19
4
DIGIN CH-20
5
RETURN CH-17-20
6
DIGIN CH-21
7
DIGIN CH-22
8
DIGIN CH-23
9
DIGIN CH-24
10
RETURN CH 21-24
20
DIGIN CH-25
21
DIGIN CH-26
22
DIGIN CH-27
23
DIGIN CH-28
24
RETURN CH 25-28
25
DIGIN CH-29
