S600+ Instruction Manual
2-10 Installation Revised July-2017

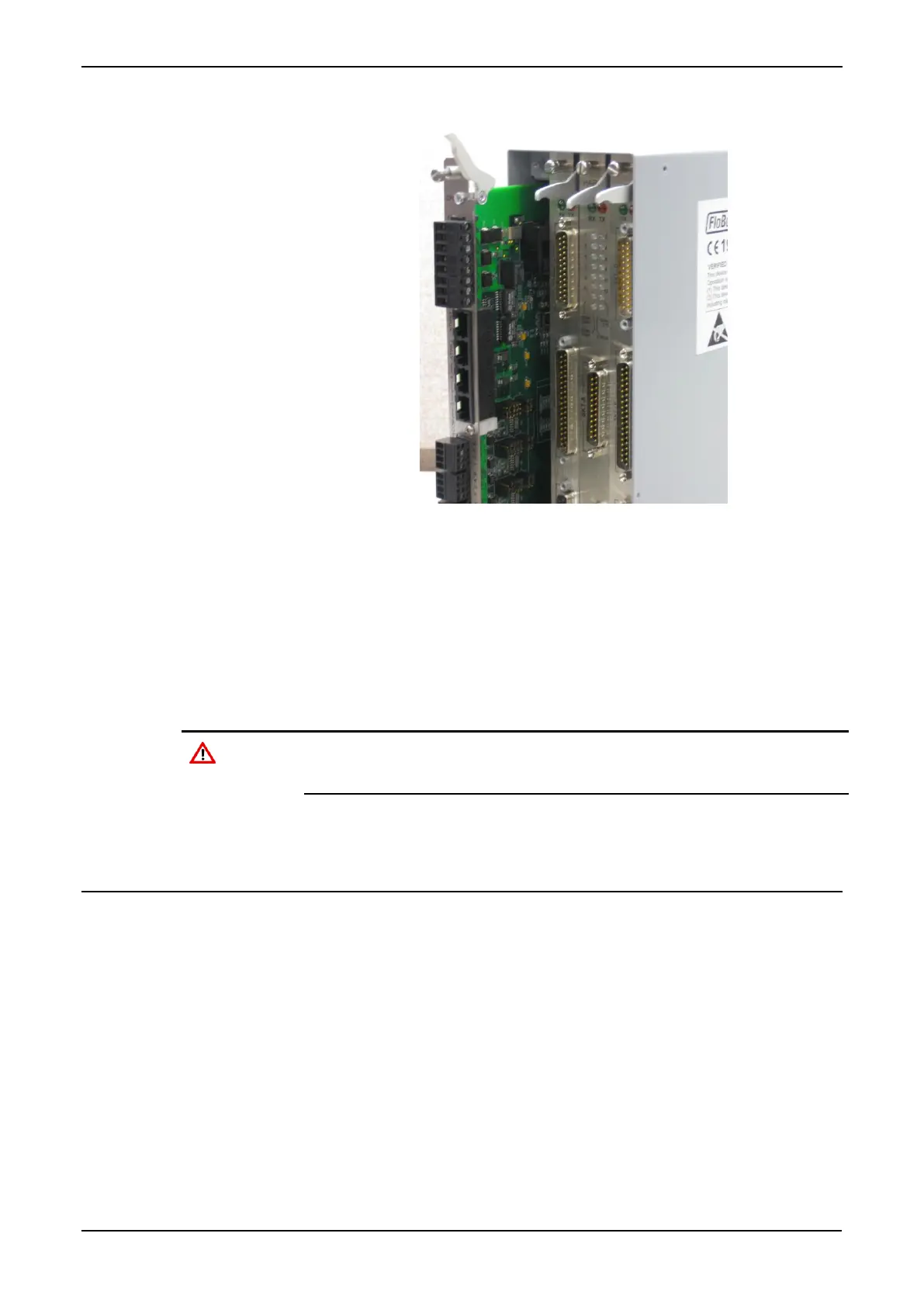

Figure 2-10. Module Ready for Removal or Insertion
Installation
1. Carefully align the module with the guides (located at the top and
bottom of the case). Gently slide the module into the case until it
seats fully with the appropriate connector on the backplane.
2. Press each of the two ejectors securely into place once the module
is fully inserted.
Caution
Inserting and seating a module along the guides does not require
excessive force. Take care not to twist or otherwise distort the module
during the installation.
3. Secure the module with the retention screws (two per board).
2.6 Installing EMC Protection
Your site may require you to install electromagnetic compatibility
(EMC) shielding on the S600+ to minimize electromagnetic
interference. The S600+ EMC protection kit (which came with your
S600+) typically has the following components:
1 security backplate (place over the installed modules)
1 25-way EMISTOP Inline T Filter Adaptor (attach to the 25-pin
socket A on the I/O module)
1 37-way EMISTOP Inline T Filter Adaptor (attach to the 37-pin
socket B on the I/O module)
3 large (for 13mm cable) ferrite clamps
3 medium (for 10mm cables) ferrite clamps
1 small (for 6.5mm cables) ferrite clamp
