S600+ Instruction Manual
Revised July-2017 Installation 2-11
 2 M3 x 6mm screws (which secure the EMC backplate to the sides
of the S600+ housing)
 5 TY523 Ty-Rap self-locking cable fasteners (use as necessary to
secure cables)
Note: These are standard components for a standard configuration. If
your S600+ has a different configuration (for example,
additional modules), you may have more components.
Install the EMC kit after you install the S600+ but before you wire the
modules.
To install the EMC components:
1. Unscrew and remove the small Phillips-head screws on the I/O
module (see Figure 2-11).

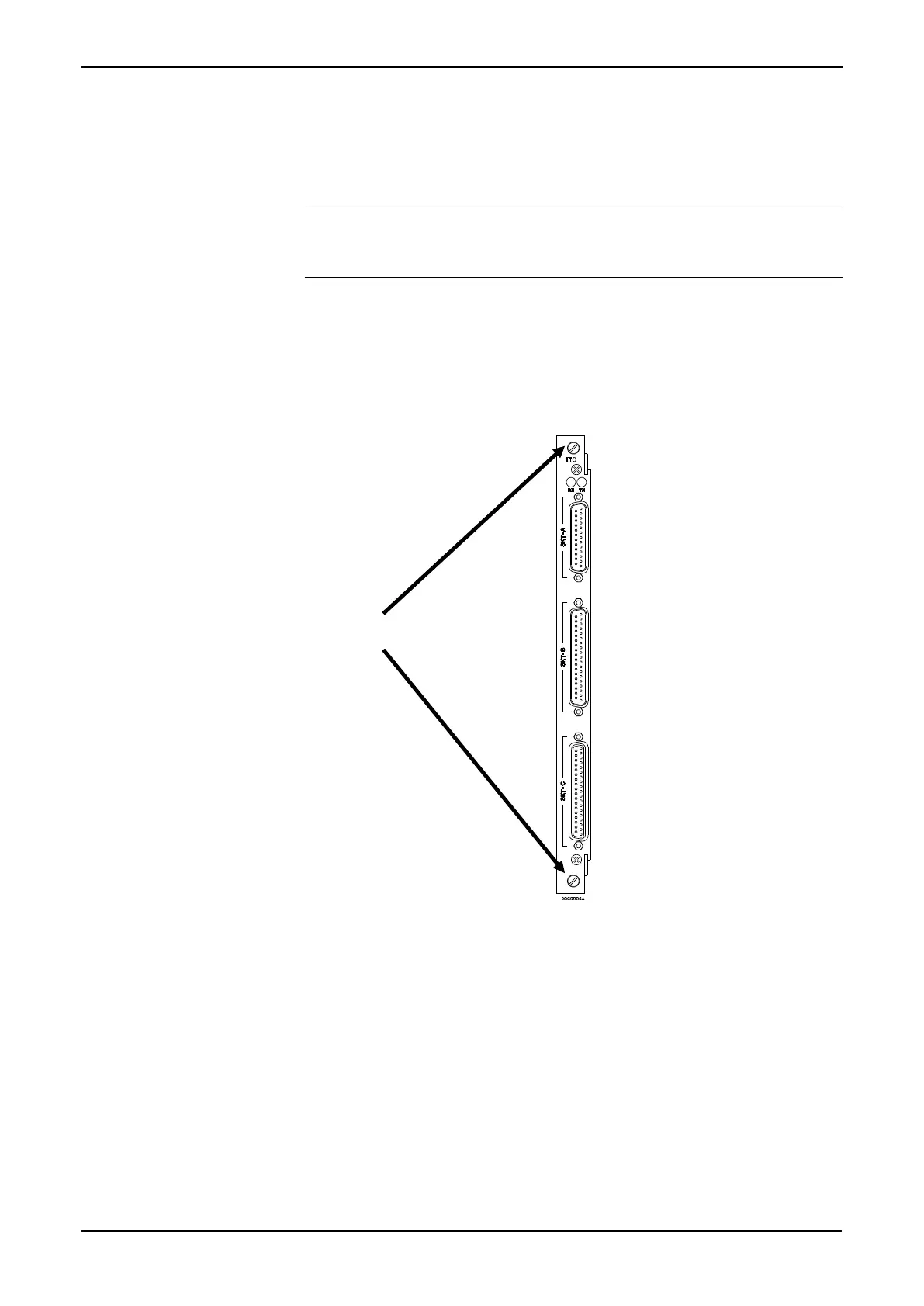

Figure 2-11. Screws on I/O Module
2. Place the security backplate over the modules already installed in
the S600+ and secure the backplate to the I/O module using the two
screws you removed in step 1 (see Figure 2-12).
Remove screws
