Chapter 6
Webserver Access
Provides instructions on accessing the S600+
through a webserver interface, including
descriptions of screen displays and interface
navigation basics.
Chapter 7
Startup
Describes how to initiate a warm or cold system
start.
Chapter 8
Troubleshooting
Provides maintenance and troubleshooting
procedures, including basic board-level test
procedures.
Appendix A
Glossary
Provides definitions for pertinent terms and
acronyms.
Appendix B
Front Panel Display
Navigation
Lists the front panel display screens; provides a
navigation reference.
Appendix C
Chromatographs
Describes the operation of the gas chromatograph
software application module for the S600+.
Index
Provides an alphabetic listing of items and topics
contained in this manual.
1.2 FloBoss S600+ Flow Computer

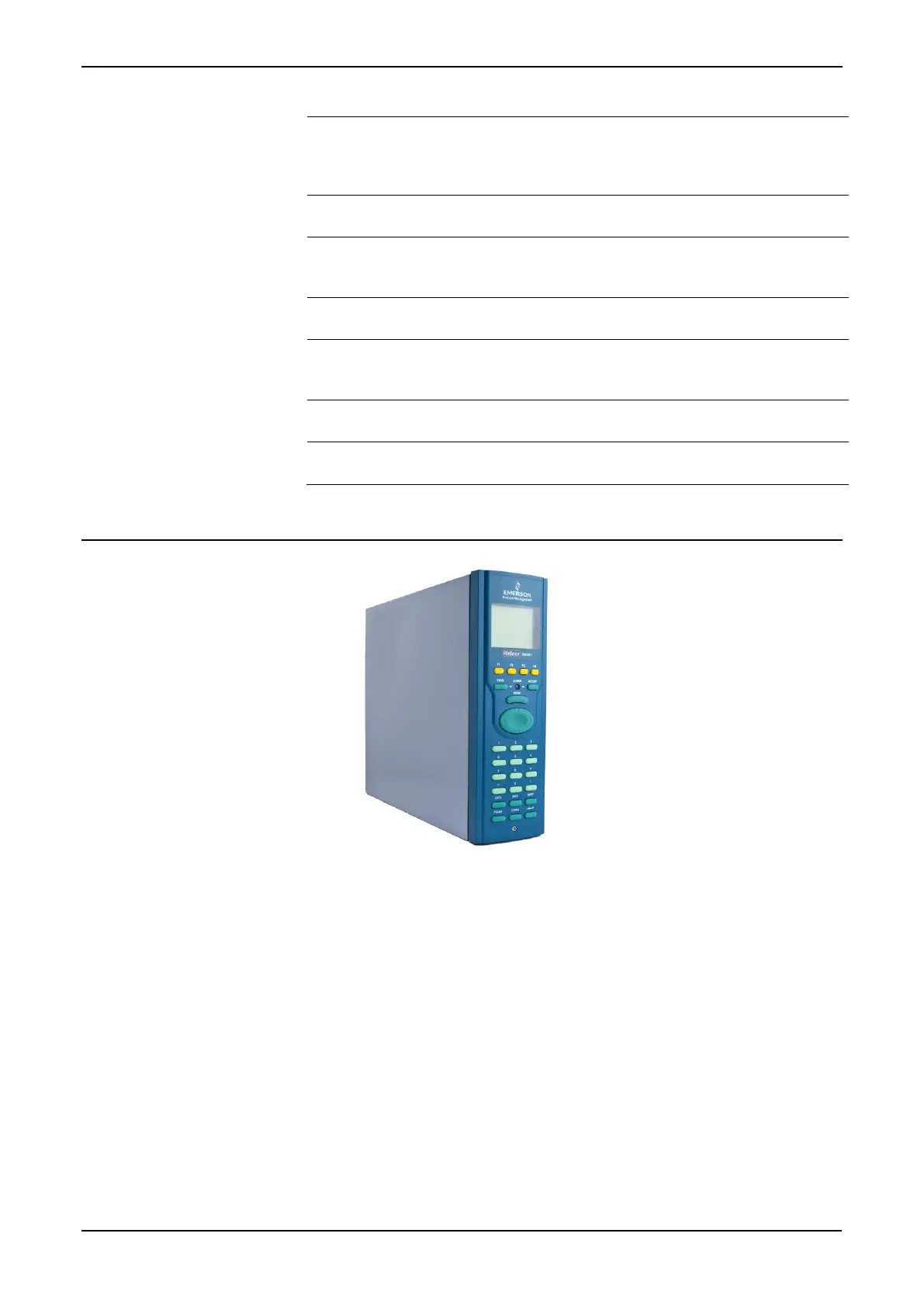

Figure 1-1. The FloBoss S600+ Flow Computer
The FloBoss S600+ Flow Computer is a panel-mounted (for indoor-
use) flow computer designed specifically to measure hydrocarbon
liquid and gas where versatility and accuracy matter. The standard
features of the S600+ make it ideal for fiscal measurement, custody
transfer, batch loading, and meter proving applications. The S600+
allows you to configure multi-stream, multi-station applications,
enabling you to simultaneously meter liquids and gasses.
The S600+ is designed for use either as a stand-alone flow computer or
as a system component. The intelligent I/O modules fit both gas and
liquid applications and typically support two dual-pulsed streams and a
header. Adding I/O modules (up to a maximum of three) allows you to
configure up to six dual-pulsed streams or up to 10 single-pulsed
streams and two headers. The S600+ supports orifice, ultrasonic,
