Figure 2-14. Clamps on I/O Module Wiring
7. Attach a large ferrite clamp onto the wiring to the CPU’s power
connections and one medium clamp to the COM3 and COM 4
connections (see Figure 2-15).

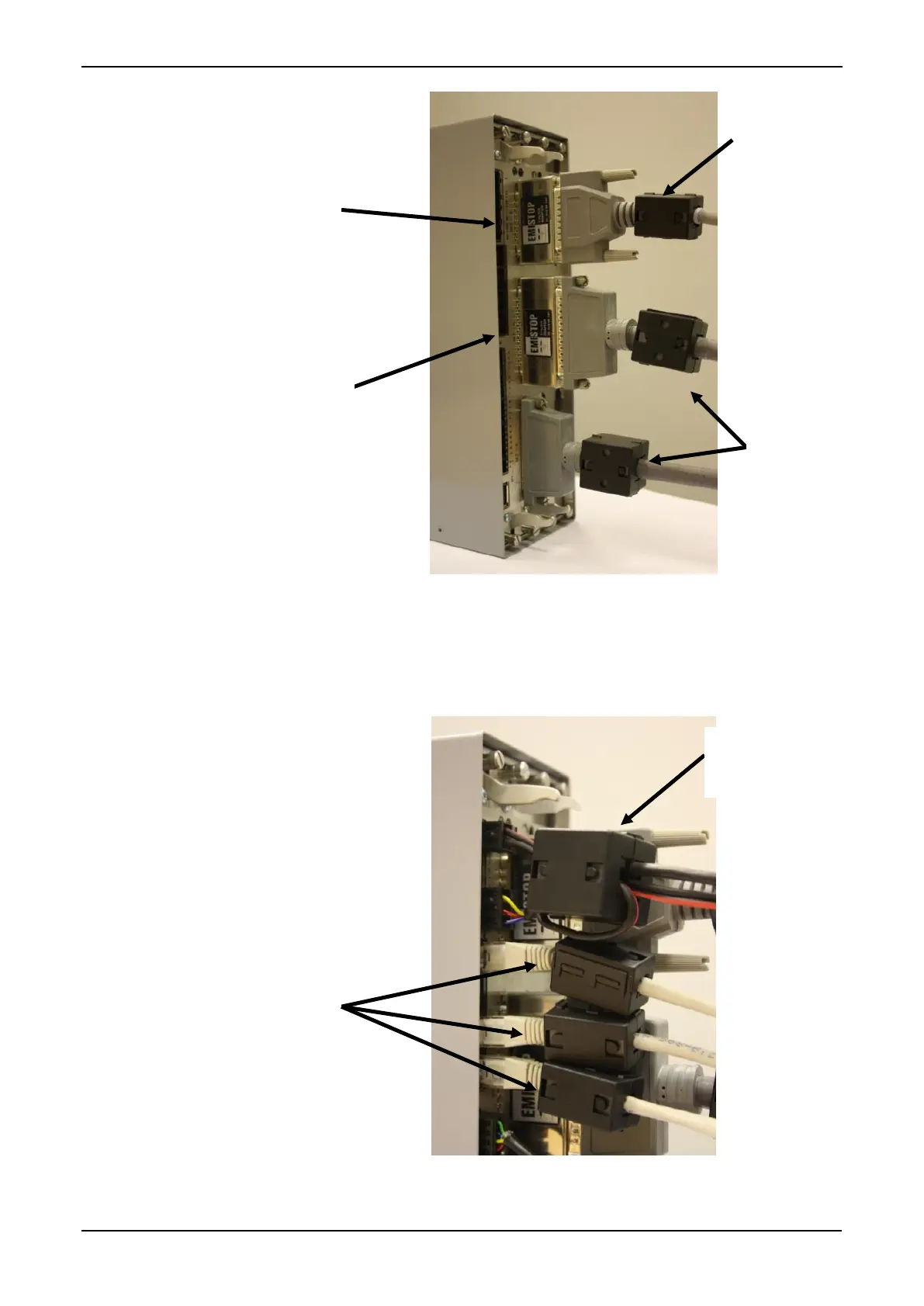

Figure 2-15. Clamps on CPU Module Power & COM Connections
Large
ferrite
clamps
Large
ferrite
clamp
Medium
ferrite
clamps
Medium
ferrite
clamp
25-way
EMISTOP
37-way
EMISTOP
