5.12 Using the Print Key
By default, the S600+ is configured to output reports to a serial printer
or a terminal. The S600+ also outputs reports to its internal webserver
(see Chapter 6, Webserver Access).

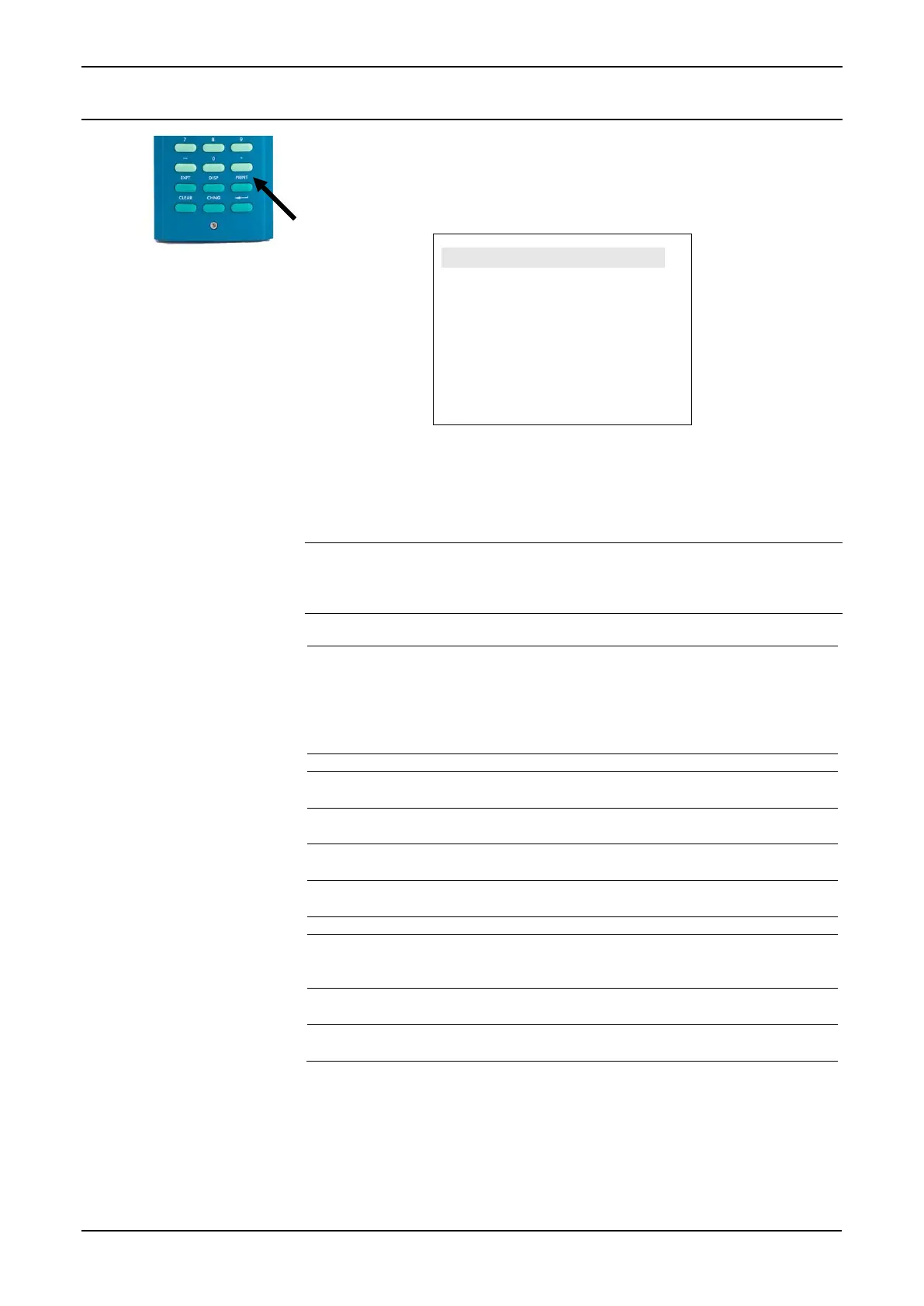

When you press PRINT, the Print Options menu displays:
PRINT OPTIONS----
1. HELP
2* CONFIGURATION
3* REPORTS
4* COMMUNICATIONS
5. CURRENT ALARMS
6* LOGS
7. ABORT PRINTING
Figure 5-14. Print Options Menu
You use PRINT key to generate either a constant log or one of several
pre-configured reports. These pre-configured reports include:
Note: When requesting report printouts, a five second delay should be
observed between print requests to allow the report to be
generated.
Lists all the constant parameters and values that
are available for change from the display
(excluding those on menu 8).
Note: You can print the Constants Log as either a
text (.TXT) file or with commas separating the
items (CSV).
Lists the whole display matrix.
Lists the whole display matrix, along with the
current security levels assigned to data items.
Lists all possible alarms that can be generated by
the alarm system on this configuration.
Lists the current report as configured, normally this
would consist of the meter run totals.
Lists the configuration-specific parameters,
including any configured installed calculation sets.
Lists all archived reports, sorted by time and date.
Lists all the acknowledged and un-acknowledged
alarms currently set in the flow computer in
separate chronological lists.
Lists the Modbus maps stored in the S600+ that
are assigned to a telemetry link.
Lists history of all alarms and events.
