S600+ Instruction Manual
Revised July-2017 I/O 4-7
Note: You must connect the feed lines (such as pin 17 on SKT-B) to a
24 Volts dc source. The DIGIN lines (such as pin 13 on SKT-
B) expect typical “open collector” (referenced to GND)
connections.

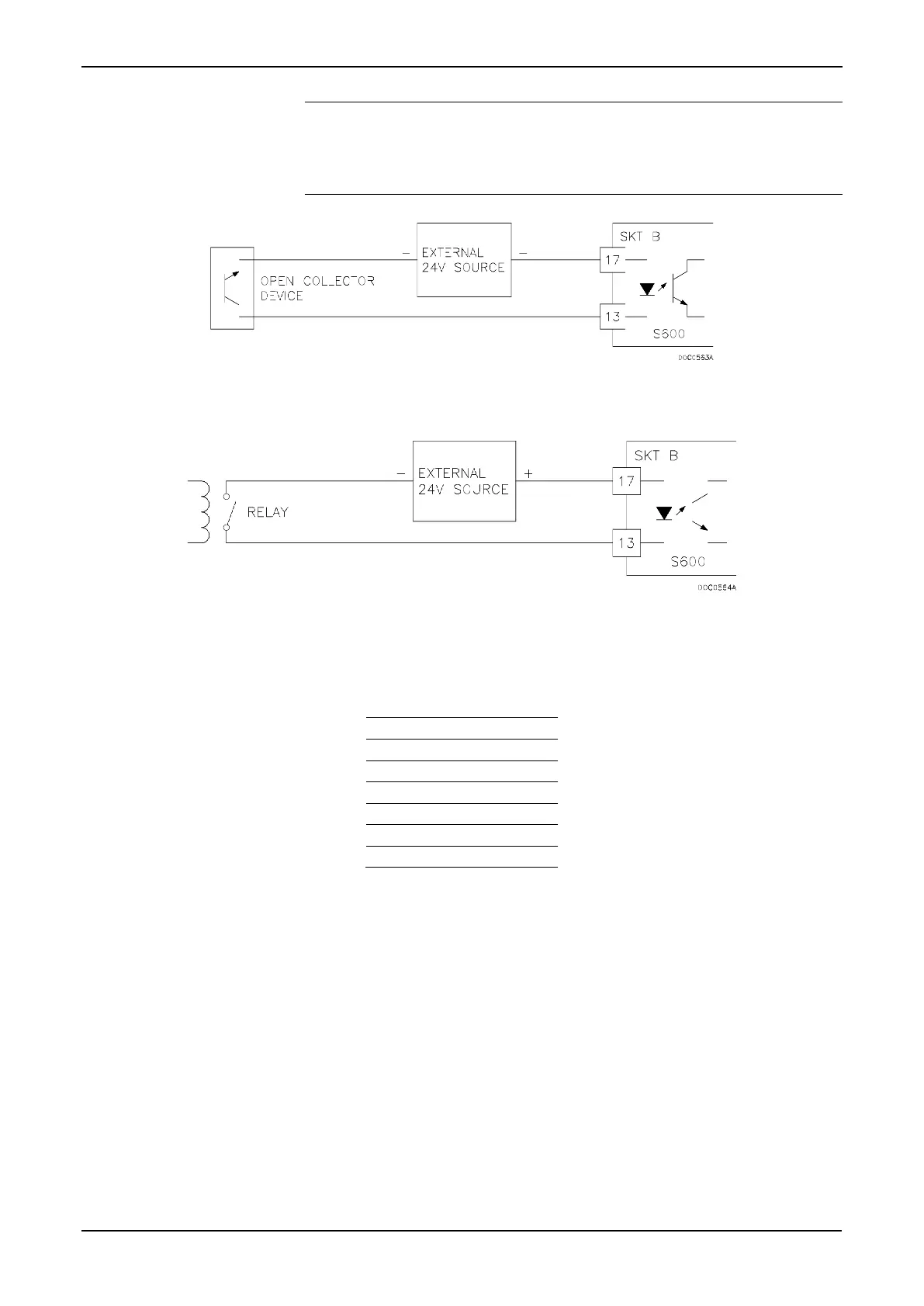

Figure 4-9. Digital Input Schematic (Open Collector Device)
Figure 4-10. Digital Input Schematic (Relay)
Table 4-4. DIGIN Pin Connections for SKT-B
Pin
Function
13
DIGIN-CH1
14
DIGIN-CH2
15
DIGIN-CH3
16
DIGIN-CH4
17
RETURN CH1-4
18
DIGIN-CH5
19
DIGIN-CH6
