Emerson FloBoss S600+ User Manual

S600+ Instruction Manual
4-26 I/O Revised July-2017
Socket A
Channel Number
Socket A
Pin Number
Channel 5+
5
Channel 5-
18
Channel 6+
6
Channel 6-
19
Channel 7+
7
Channel 7-
20
Channel 8+
8
Channel 8-
21
Table 4-25. HART Pin Connections (Socket B)
Socket B
Channel Number
Socket B
Pin Number
Channel 9+
13
Channel 9-
25
Channel 10+
12
Channel 10-
24
Channel 11+
11
Channel 11-
23
Channel 12+
10
Channel 12-
22
Caution
Each channel on the HART module requires an external 270Ω (270R)
resistor to terminate the HART signal for that channel.

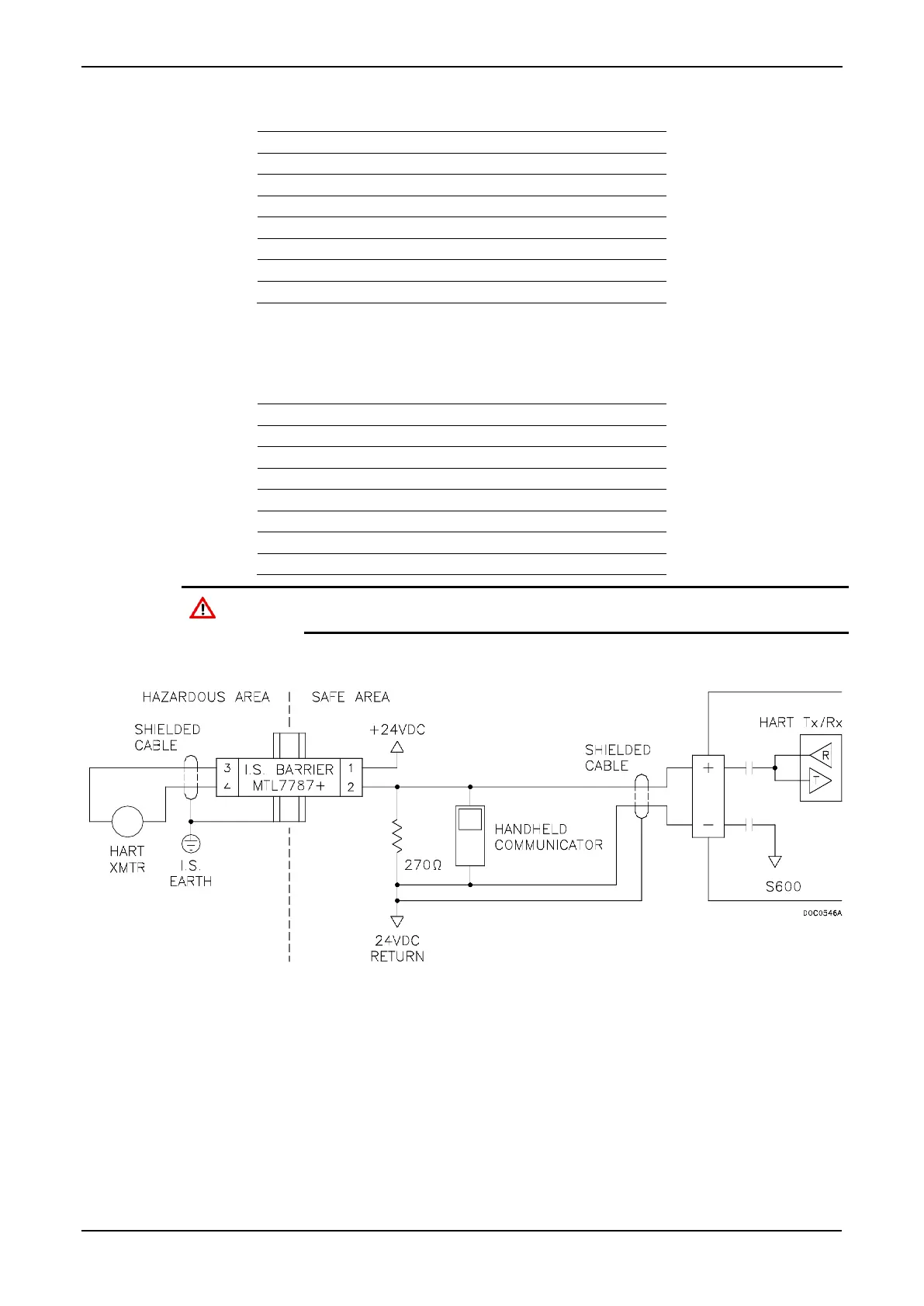

Figure 4-32. HART Device Beyond the IS Barrier
