4-22 I/O Revised July-2017

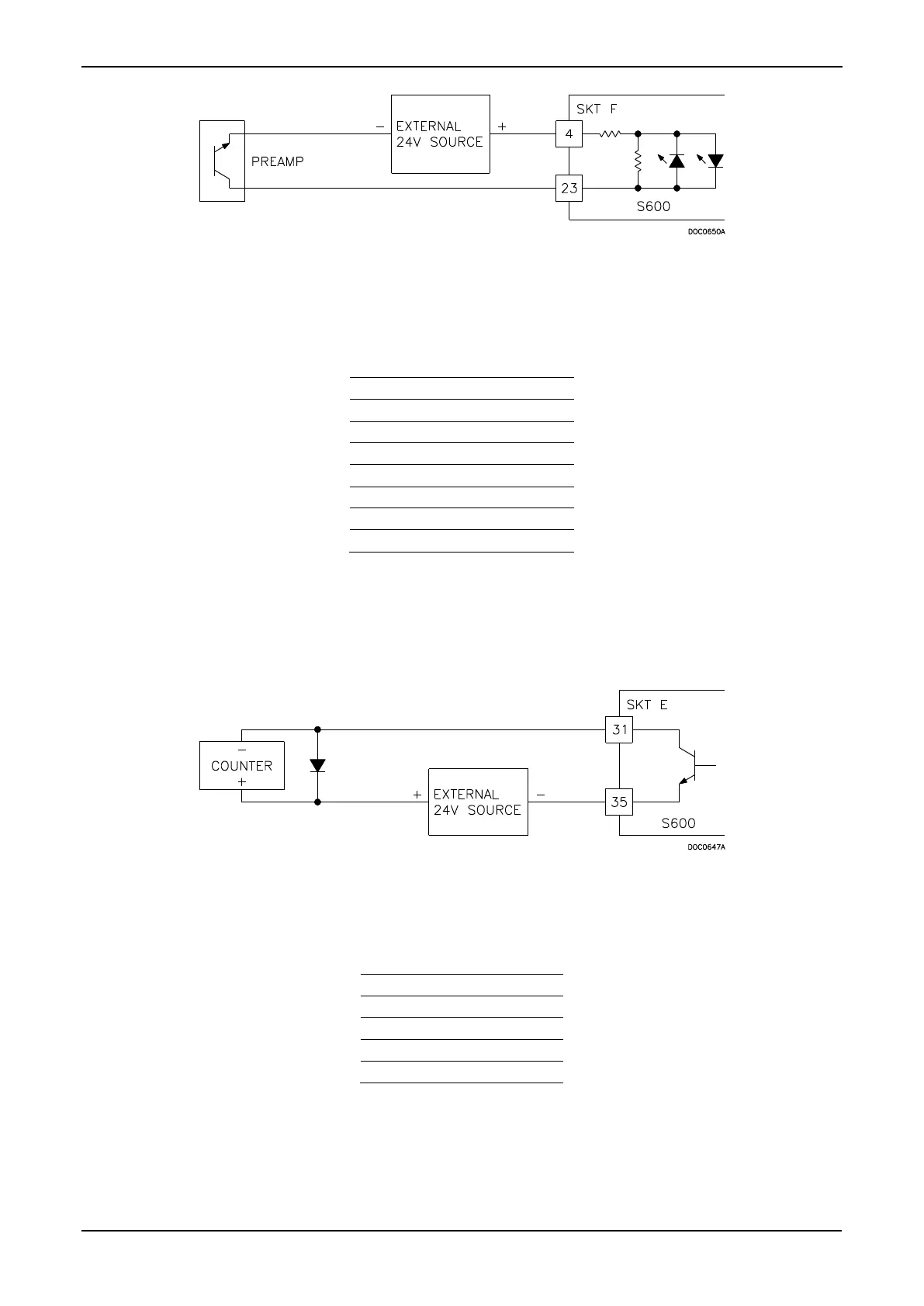

Figure 4-27. Pulse Input Schematic (with 24 V P148 Mezzanine
Module)
Table 4-19. Dual-Pulse Input Pin Connections for SKT-F
Pin
Function
4
DUAL PULSE-CH1+
23
DUAL PULSE-CH1-
3
DUAL PULSE-CH2+
22
DUAL PULSE-CH2-
2
DUAL PULSE-CH3+
21
DUAL PULSE-CH3-
1
DUAL PULSE-CH4+
20
DUAL PULSE-CH4-
4.2.4 Pulse Outputs (PULSEOUT)
The S600+ provides four programmable pulse outputs, typically used
for electronic counters. Refer to Table 4-20 for the PULSEOUT pin
connections. Refer to Figure 4-28 for field wiring schematics.
Figure 4-28. Pulse Output Schematic
Table 4-20. PULSEOUT Pin Connections for SKT-E
Pin
Function
31
PULSEOUT-CH1
32
PULSEOUT-CH2
33
PULSEOUT-CH3
34
PULSEOUT-CH4
35
RETURN CH1-4
4.2.5 Frequency Inputs
The S600+ supports two frequency inputs, typically used for density
transducer signals. Each input has an input range of 0 to 10 KHz.
