S600+ Instruction Manual
5-2 Front Panel Revised July-2017
5.2 Front Panel Port
The front panel port, located on the bottom of the front panel, is the
primary connection for the Config600 software program to use when
transferring configuration files. The port requires a six-pin RJ-12
connector (part number 3080017) for RS-232 (RS-232D)
communications (see Figure 5-2).
Table 5-1 shows the pinout connections for a six-pin connector. You
may also want to refer to Table 3-7 in Section 3.3.4, Local Operator
PC or Remote Display Port, which describes the pinouts when using
the 15-way D-type female connector.
Table 5-1. Front Panel Port Connections
Pin
Function
1
RTS
2
TX
3
GND
4
GND
5
RX
6
CTS

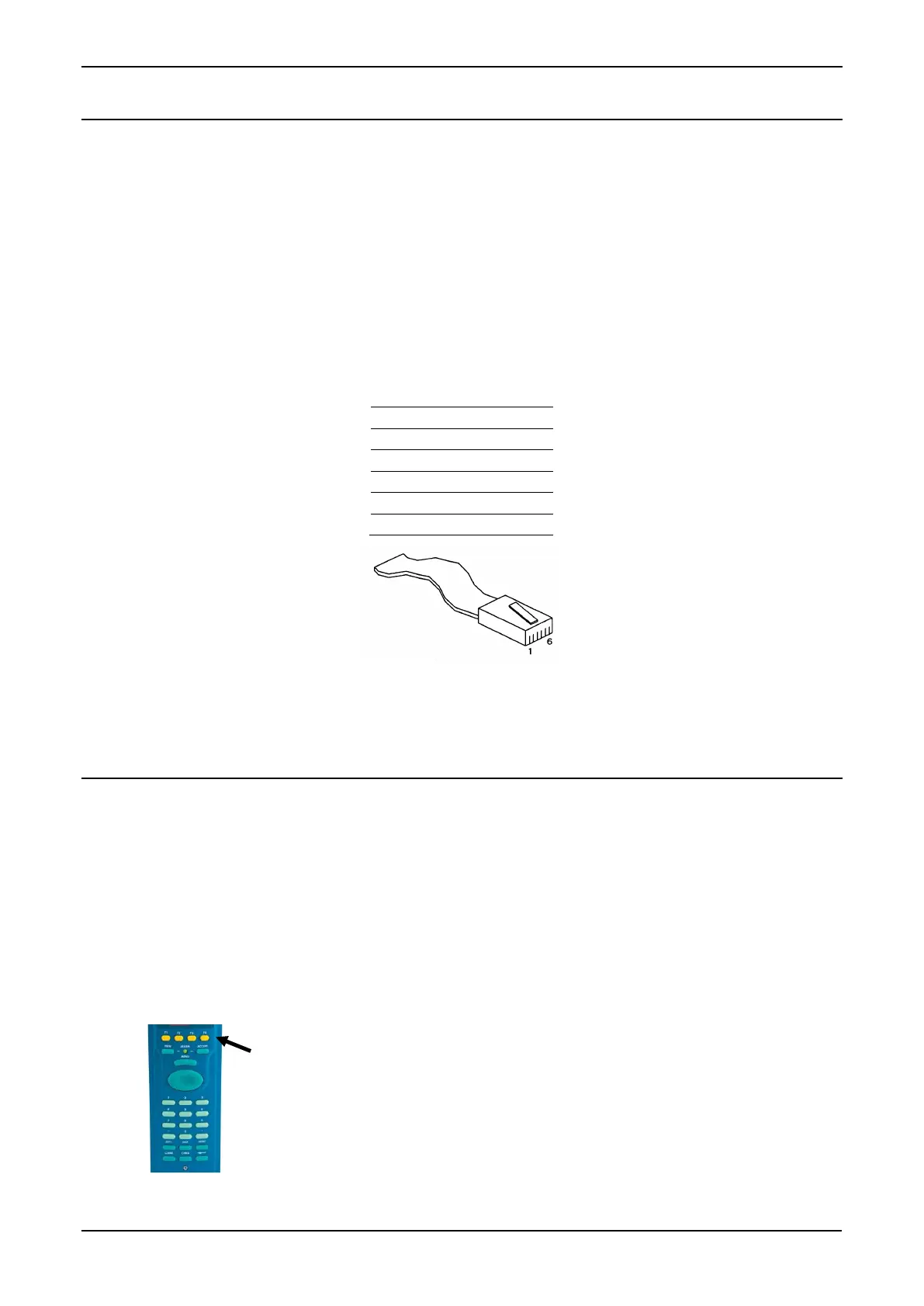

Figure 5-2. Front Panel Port Connector
5.3 Keypad
The keypad for the front panel has been designed for ease-of-use and
to reduce the possibility of error. Keys on the keypad are color-coded
by type:
Yellow: Function.
Dark green: Four-direction and MENU.
Light green: Numeric.
Dark green: Operation
5.3.1 Function Keys (F1 - F4)
