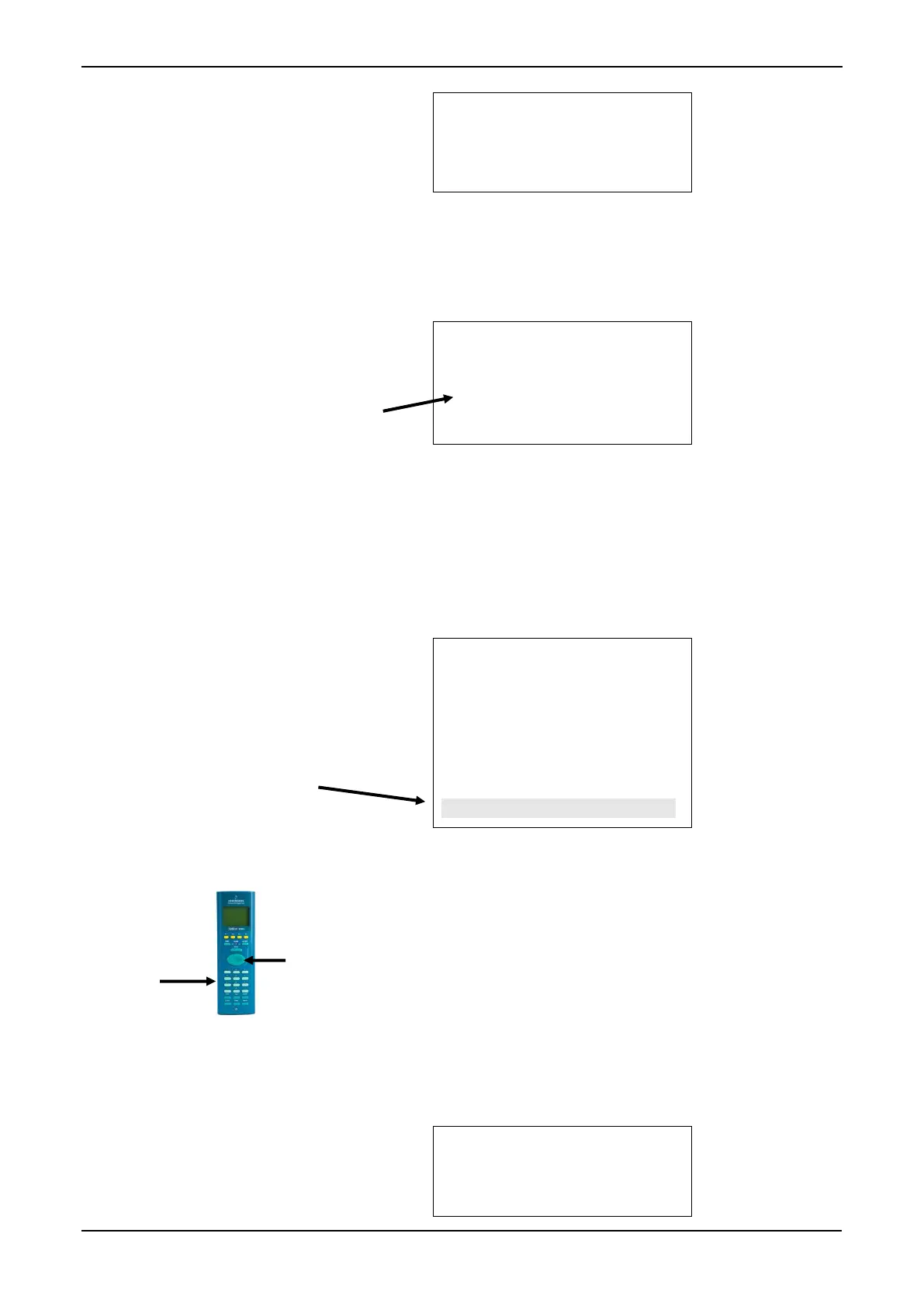

Figure 5-6. S600+ Main Menu
Sub-menus (as shown in Figure 5-7) may either have an asterisk or a
period after the option number. A period indicates that option accesses
a data page.
Figure 5-7. Submenu
Figure 5-8 shows a sample data page, which you access through a
series of menus. Data pages show system values (here, the current
volume flow rate for stream 1). Data pages also have a unique page
reference number, shown in the shaded section at the bottom of the
age. The shaded area also indicates if other data pages are available to
view.
Figure 5-8. Data Display Page
You can move from menu to submenu to data page by pressing the
number keys on the keypad. In our example in Figure 5-5, pressing 1
followed by 2 takes us to the data page shown in Figure 5-8.
Once you have accessed a data page, you can press the oval direction
key to display any additional related values. For example, from the
data page in Figure 5-8, press to access the second data page in the
sequence.
Figure 5-9 shows that you can press or to quickly access adjacent
data pages. The data page address changes as you move from page to
page.
