S600+ Instruction Manual
Revised July-2017 Webserver Access 6-5
6.3 Navigating the Webserver Interface
The webserver interface allows you to view reports and data from the
front panel display screens. Depending on your security level, you may
also be able to change values and navigate through the interface using
two navigation bars. Elements of the database display in a menu bar at
the top of the screen.
The interface has two basic formats: a data report and a screen format
that corresponds to the screens displayed on the S600+ front panel (see
Figures 6-3 and 6-4).

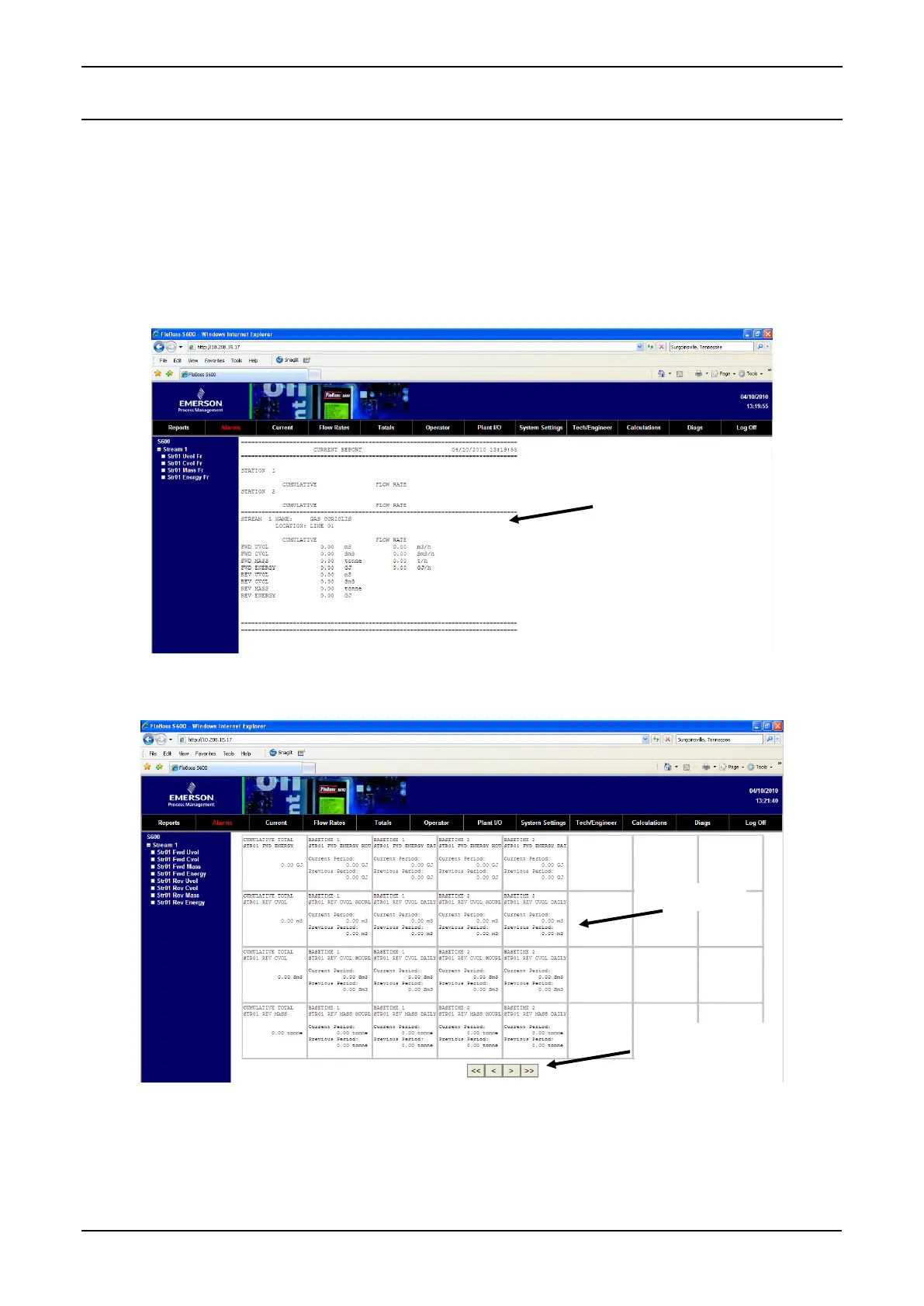

Figure 6-3. Webserver Access (Report Format)
Figure 6-4. Webserver Access (Page Format)
With the screen format, you use the navigational controls at the bottom
of the screen to display additional screens.
