FAX Board (IF-B Board) (Artisan 800/PX800FW/TX800FW only)
1. Disconnect the I/F-B FFC from the FAX Board. (See Fig. 4-43.)
2. Remove the screws (x4) that secure the Shield Plate FAX, and remove the
Shield Plate FAX from the Upper Shield Plate M/B.

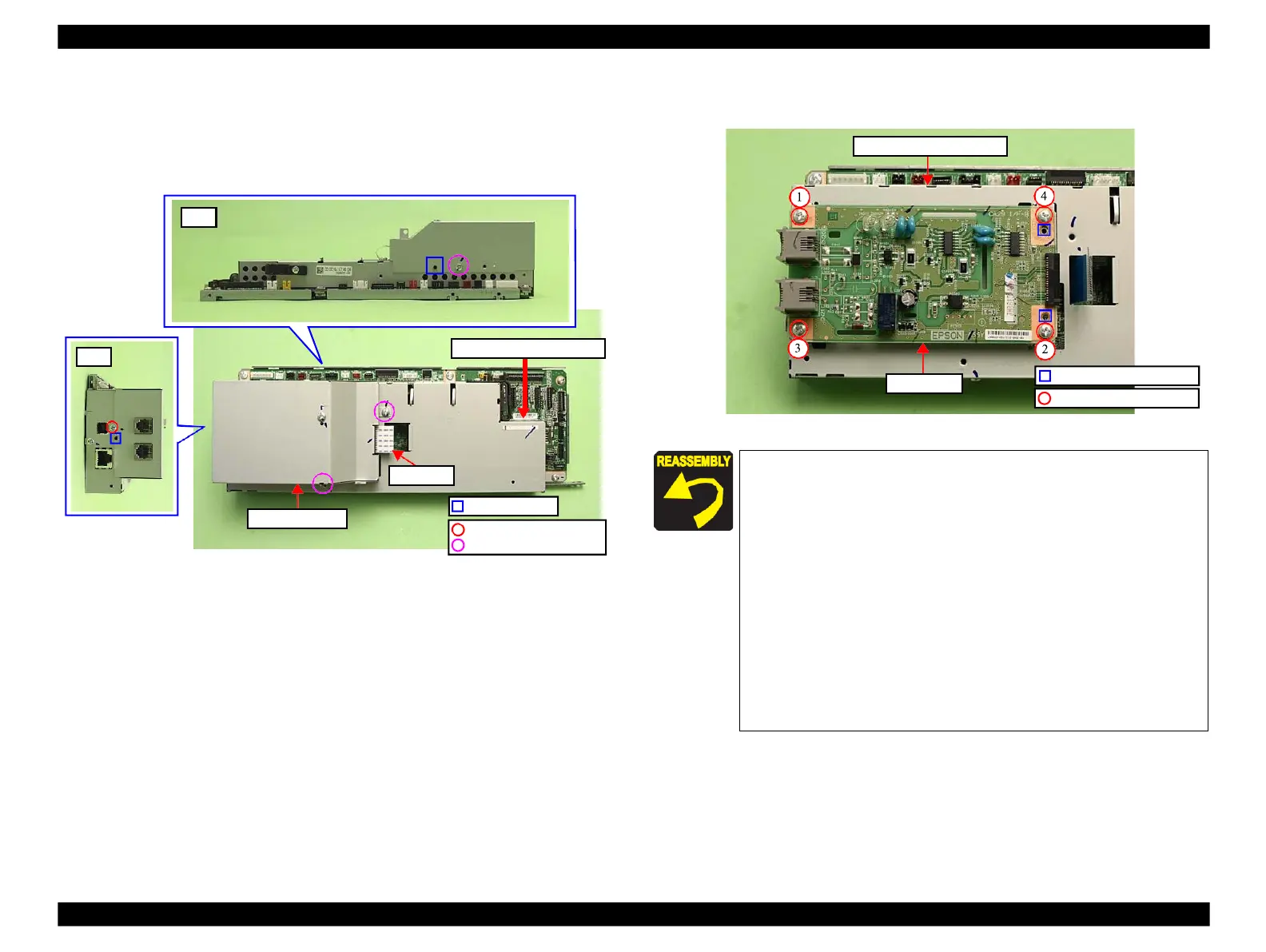

Figure 4-43. Removing the FAX Board (1)
3. Remove the screws (x4) that secure the FAX Board and remove the FAX
Board from the Upper Shield Plate M/B.
Figure 4-44. Removing the FAX Board (2)
C.B.S. 3x6 (4±0.5Kgfcm)
Positioning hole & dowel
FAX Board
Upper Shield Plate M/B
C.P. 3x6 (4±1Kgfcm)
C.B.S. 3x6 (4±1Kgfcm)
Dowel & groove
Upper Shield Plate M/B
Shield Plate FAX
I/F-B FFC
Rear
Top
Align the positioning holes (x2) of the Main Board with the
dowels (x2) of the Upper Shield Plate M/B. (See Fig. 4-42.)
When installing the Main Board, tighten the screws in the order
shown in Fig. 4-42.
Align the dowels (x2) of the Lower Shield Plate M/B with the
grooves (x2) of the Upper Shield Plate M/B. (See Fig. 4-41.)
Align the positioning holes (x2) of the FAX Board with the
dowels of the Upper Shield Plate M/B. (See Fig. 4-44.)
When installing the FAX Board, tighten the screws in the order
shown in Fig. 4-44.
Align the grooves (x2) of the Shield Plate FAX with the dowels
(x2) of the Upper Shield Plate M/B. (See Fig. 4-43.)
Align the positioning hole (x1) of the Main Board with the dowel
(x1) of the Upper Shield Plate M/B. (See Fig. 4-40.)
