Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Routing FFC/cables
https://www.manualsbooks.com
207
Confidential
ROUTING THROUGH THE FFC HOLDER
See Fig. 4-245 for the connector positions on the Main Board.

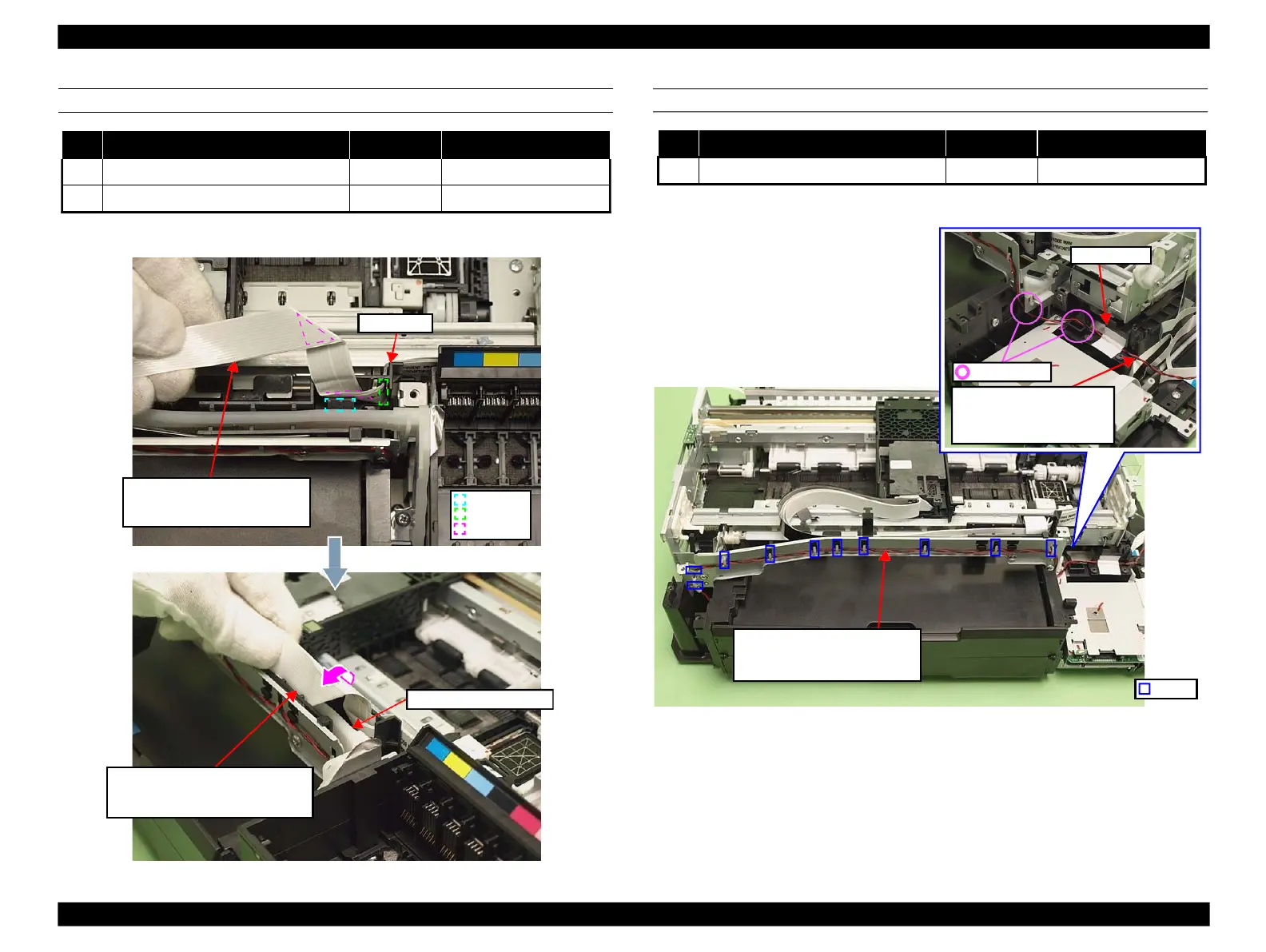

Figure 4-253. Routing to the FFC Holder
ROUTING AROUND THE PRINTER MECHANISM
No.
FFC/cable name
CN No.
*
Remarks
1
Plunger cable
CN19
---
Note * : See Fig. 4-245 for the connector positions on the Main Board.
Figure 4-254. Plunger Cable
(Continued to the next page.)
Ink Supply Tube Assy
Cover Ink Supply Tube Assy with CR
Encoder FFC and Head FFC (x4), and
secure them to the FFC Holder.
Rib
Hole
Fold line
Insert the CR Encoder FFC and
Head FFC (x4) together to the rib
on the FFC Holder and the hole.
FFC Holder
No.
FFC/cable name
CN No.
*
Remarks
1
CR Encoder FFC
CN6
---
2
Head FFC (x4)
CN1,2,3,4
---
Route this not to let it get
caught between Cartridge Slot
Assy and Cartridge Box.
Do not tuck
Hook
Plunger cable:
Route this to the hooks (x10) and
secure it with acetate tape (x1).
Acetate tape
