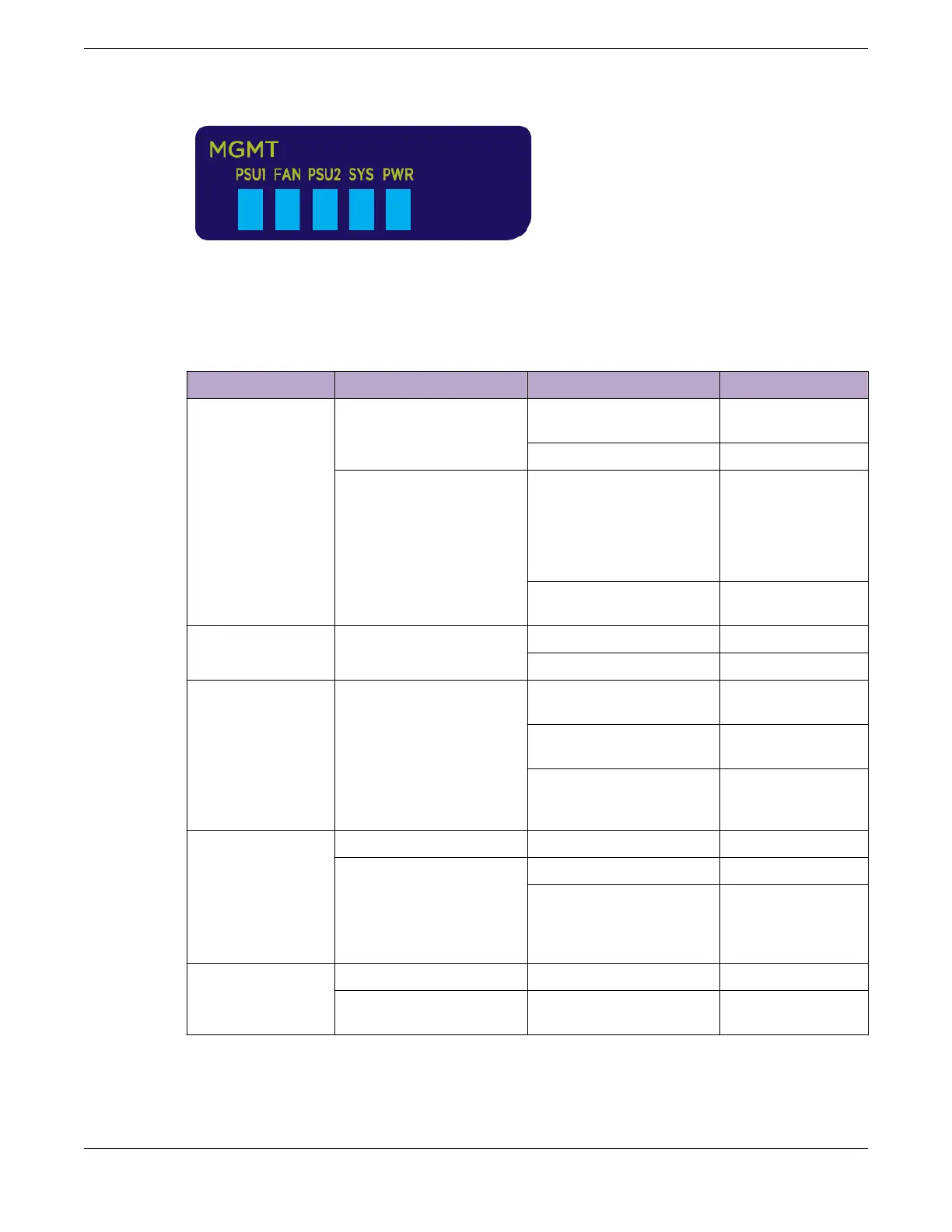

Figure 109: X695 Switch LED
The X695 front panel LEDs behave as follows:
Table 36: X695 System LEDs
LED indication Color Behavior Description
SYS Green Blinking POST Passed,
normal operation
Light oîš‚ Power Oîš‚
Amber Blinking • POST failed
• Overheated
• System booting
• Initial system
booting
Solid POST or Diagnostics
in progress
Power Green Solid Power On
Light Oîš‚ Power Oîš‚
Link
(Left of Mgmt port)
Green Solid Management port
link up
Light oîš‚ No link up or port
disabled
Blinking Management port
packet transmitting
or receiving
PSU1, PSU2
(Front Faceplate)
Green Solid Power On
Amber Blinking Power supply failure
Solid Module not present
or
POST in progress if
SYS is solid amber
PSU1, PSU
(Back)
Green Solid Operational
Amber Solid Voltage, fan, or temp
failure
ExtremeSwitching X695 Switch LEDs ExtremeSwitching Switches
110 ExtremeSwitching Hardware Installation Guide
