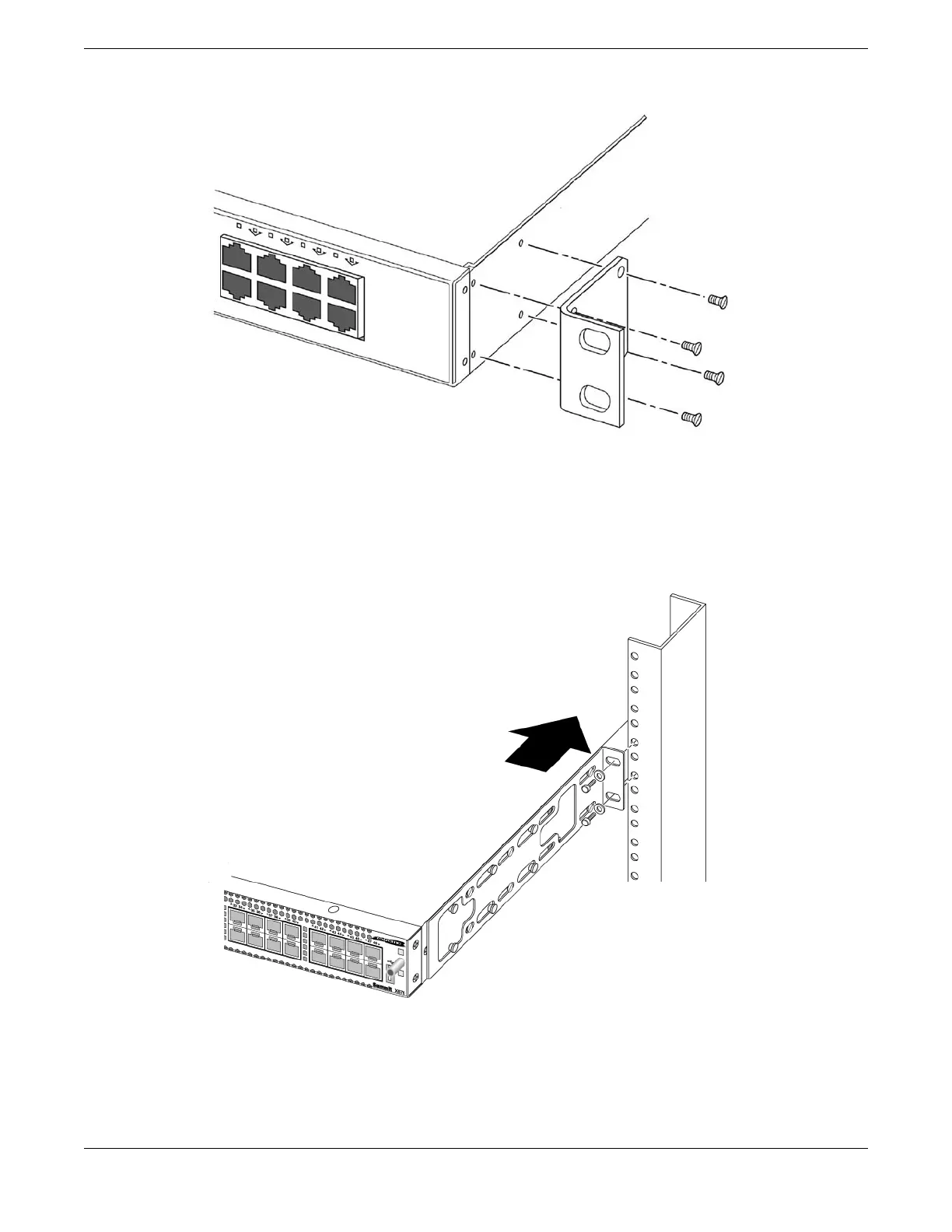

Figure 170: Front Mount: Attaching a Short Mounting Bracket
2. Use the small bracket-mounting screws (provided) to secure the bracket to the switch housing.
3. Repeat step 1 and step 2 to attach the other bracket to the other side of the switch.
4. Slide the switch into the equipment rack or cabinet.
Figure 171 shows an example of a mid-mount installation.
Figure 171: Sliding the Switch into the Rack
5. Secure the mounting bracket flanges to the rack, using screws that are appropriate for the rack.
(Rack-mounting screws are not provided.)
Installing Your Extreme Networks Switch
Attaching the Switch to a Rack or Cabinet
ExtremeSwitching Hardware Installation Guide 225
