To install the STK-RPS-1005PS in a rack, follow these steps.
1. Secure the front of the three-slot modular shelf (STK-RPS-1005CH3) to the rack by screwing four
rack screws into the mounting ears on the right and left front of the shelf.
See Figure 4.

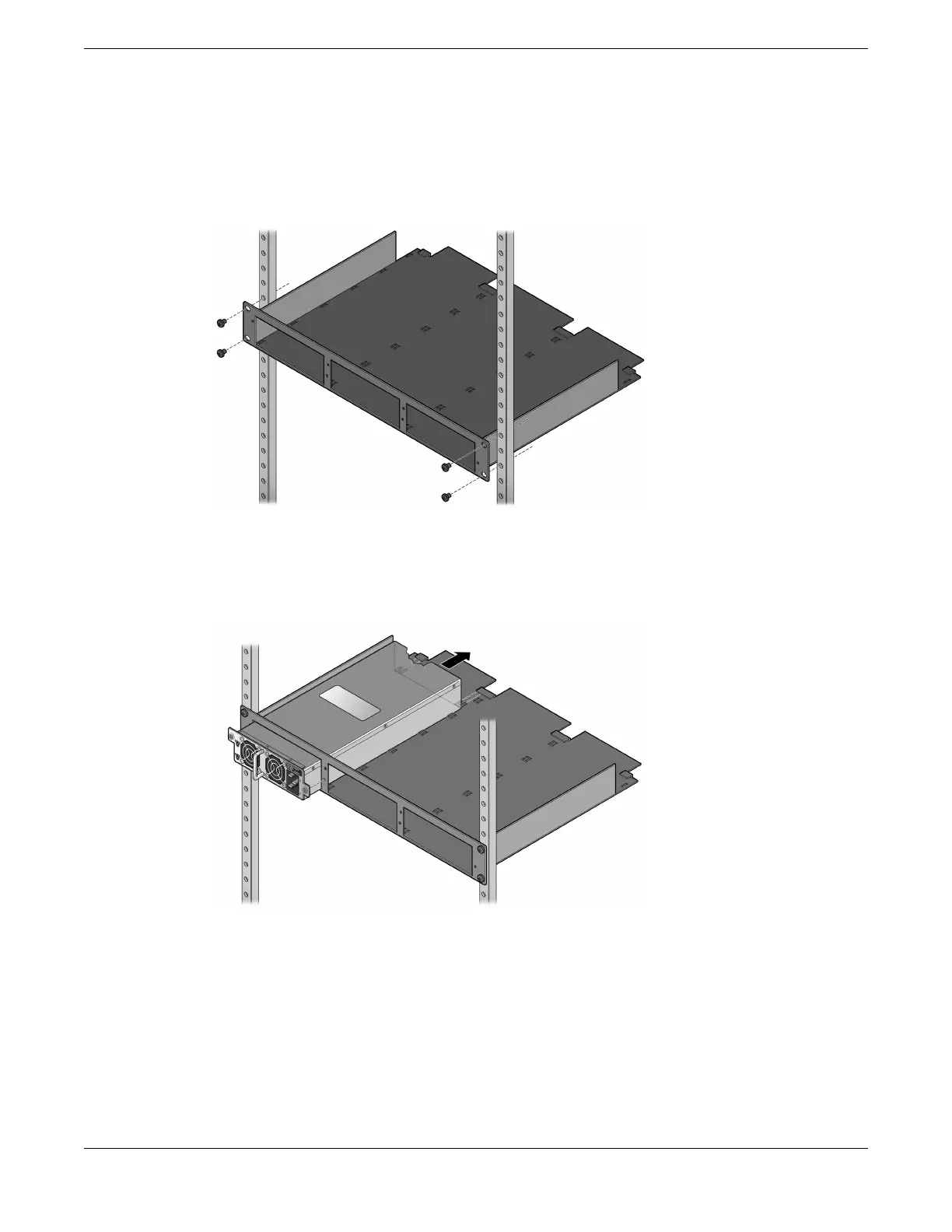

Figure 228: Securing the Three-slot Modular Shelf to a Rack
2. Slide the power supply into an empty bay in the shelf.
See Figure 229.
Figure 229: Installing an STK-RPS-1005PS Power Supply Unit in a Shelf
3. Tighten the captive screws to secure the power supply to the shelf.
4. Connect the STK-RPS-1005PS to its power source.
See Connecting the RPS Cable and AC Power Cord to an STK-RPS-1005PS on page 288.
Installing External Power Supplies
Installing an STK-RPS-1005PS in a Rack
ExtremeSwitching Hardware Installation Guide 287
