c. Slide the spade terminal of the positive wire (+24 V) under the captive square washer on the
positive terminal (labeled +24 V).
See Figure 288.
(+)
(–)
+24V
-24V

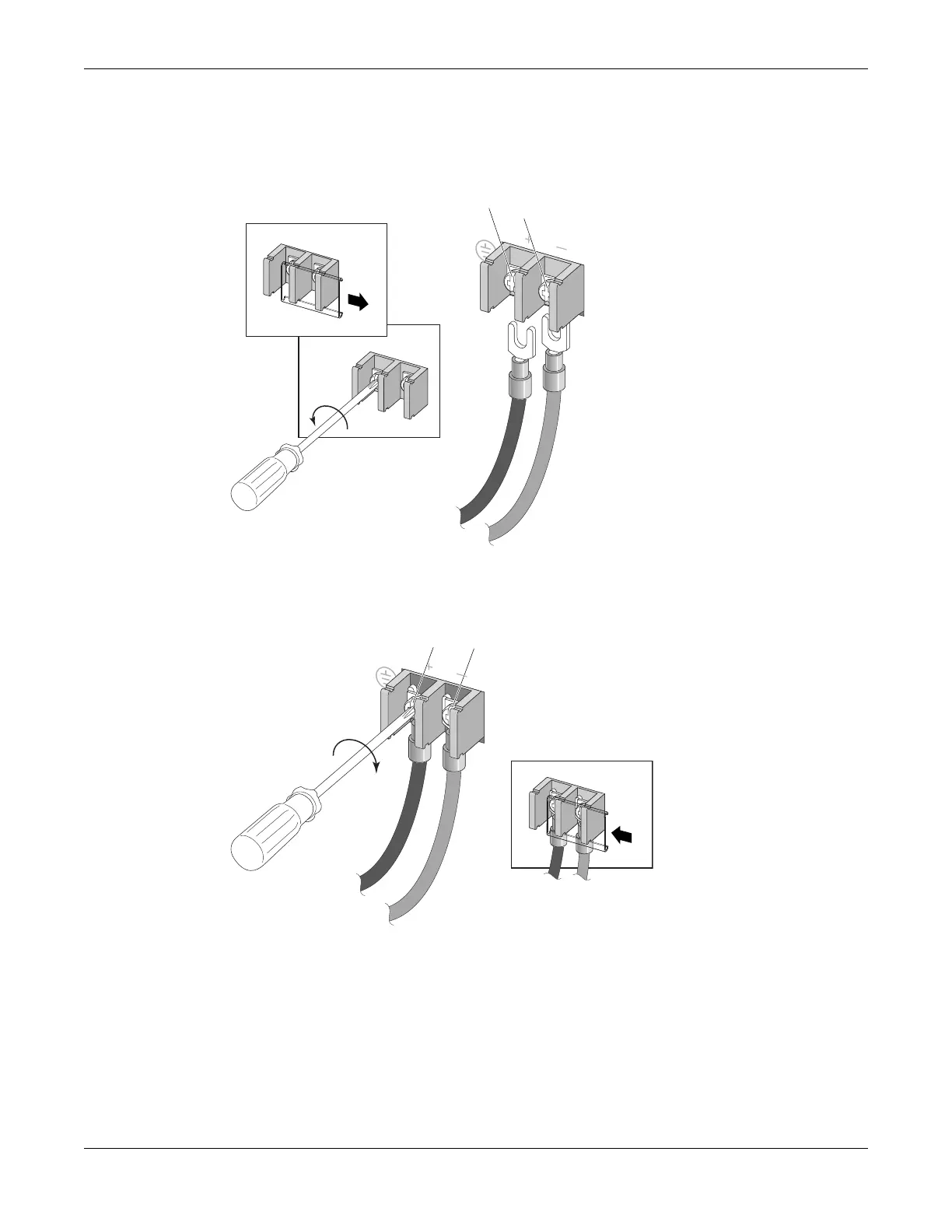

Figure 288: Connecting the DC Power Cables: Part 1
d. Tighten both screws on the terminal block to 15.9 in-lb (1.8 N-m) as shown in Figure 289.
(+)
(–)
+24V
-24V
Figure 289: Connecting the DC Power Cables: Part 2
6. Slide the cover into place over the terminal block.
7. Energize the DC circuit.
Replacing DC Power Supplies
Connecting DC Power Cables to a 300 W DC Power
Supply
ExtremeSwitching Hardware Installation Guide 349
