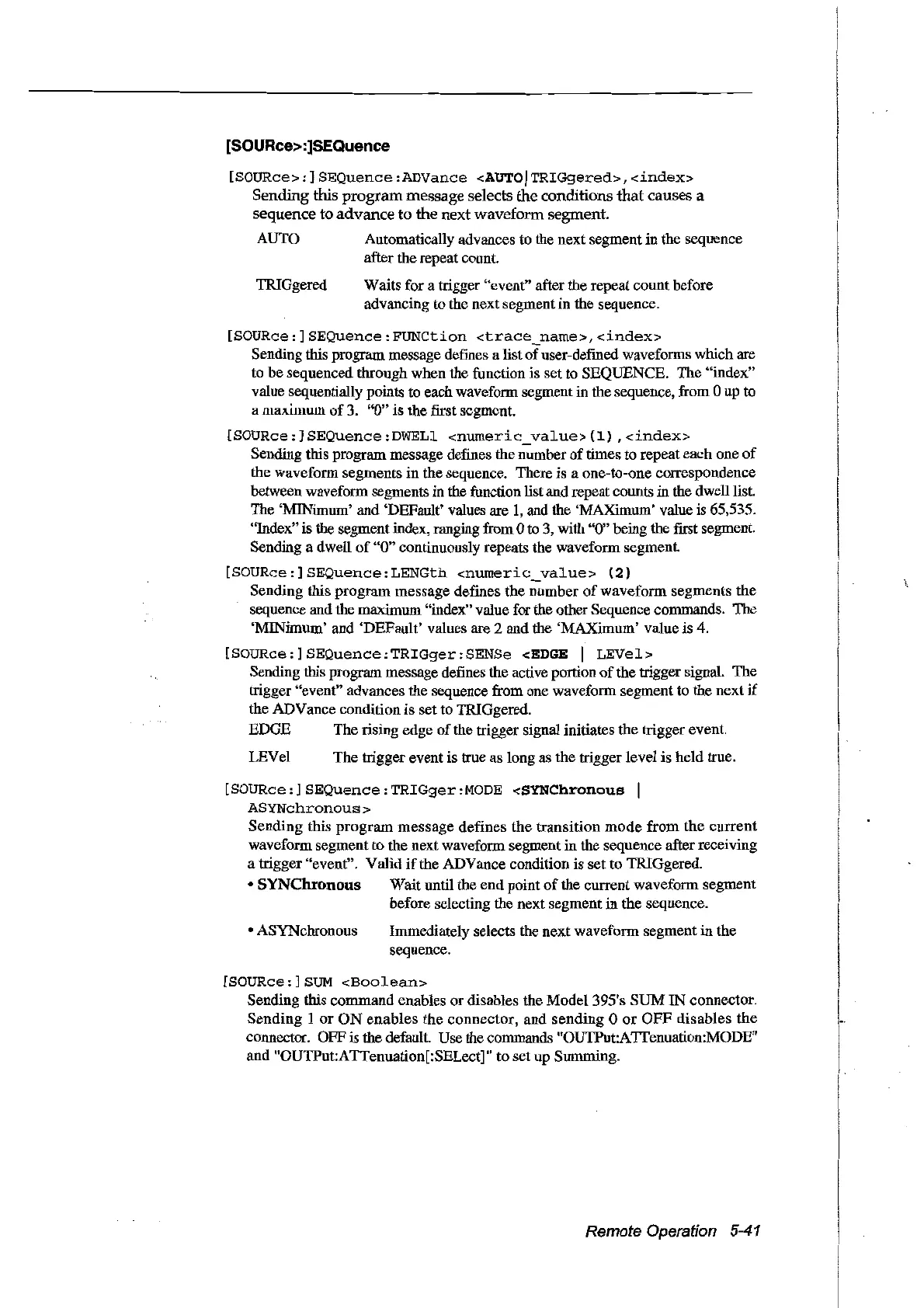

[SOURce>:]SEQuence
[SOURce>:]SEQuence:ADVance
<AUTOITRIGgered>,<index>
Sending this
program
message selects the conditions
that
causes a
sequence to advance to the next waveform segment.
AUTO Automatically advances to the next segment in the sequence
after the repeat count.
1RIGgered Waits for a trigger "event" after the repeat count before
advancing
to the next segment in the sequence.
[SOURce:]SEQuence:FUNCtion
<trace_name>,<index>
Sending this program message defines a list
of
user-defined waveforms which are
to be sequenced through when the function is set to SEQUENCE. The "index"
value sequentially points
to each waveform segment in the sequence, from 0
up
to
a maxImum
of
3.
"0"
is the fust segment.
[SOURce:]SEQuence:DWELl
<numeric_value>(1),<index>
Sending this program message defines the number
of
times to repeat each one
of
the waveform segments in the sequence. There is a one-to-one correspondence
between waveform segments in the function list and repeat counts in the dwelllist.
The 'MINimum' and 'DEFault' values are
1,
and the 'MAXimum' value is 65,535.
"Index" is the segment index, ranging from 0
to 3, with "0" being the frrst segment.
Sending a dwell
of
"0"
continuously repeats the waveform segment.
[SOURce:]SEQuence:LENGth
<numeric_value>
(2)
Sending this program message defines the number
of
waveform segments the
sequence and the maximum "index" value for the other Sequence commands. The
'MINimum' and 'DEFault' values are 2 and the 'MAXimum' value is 4.
[SOURce:]SEQuence:TRIGger:SENSe
<EDGE 1
LEVel>
Sending this program message defines the active portion
of
the trigger signal. The
trigger "event" advances the sequence from one waveform segment to the
neXt
if
the ADVance condition is set to 1RIGgered.
EDGE Therising edge
of
the trigger signal initiates the trigger event.
LEVel
The trigger event is true as long as the trigger level is held true.
[SOURce:]SEQuence:TRIGger:MODE
<SYNChronous
1
ASYNchronous>
Sending this
program
message defines the transition
mode
from
the current
waveform segment to the next waveform. segment in the sequence after receiving
a trigger "event". V
alid
if
the ADVance condition is set to 1RIGgered.
• SYNChronous Wait until the end point
of
the current waveform segment
before selecting the next segment in the sequence.
• ASYNchronous
Immediately selects the next waveform segment in the
sequence.
[SOURce:]SUM
<Boolean>
Sending this command enables or disables the Model 395's SUM IN connector.
Sending 1 or
ON
enables
the connector, and sending 0
or
OFF
disables
the
connector. OFF is the default. Use the commands "OUTPutATIenuation:MODE"
and "OUTPutATTenuation[:SELect]" to set up Summing.
Remote Operation
5-41
