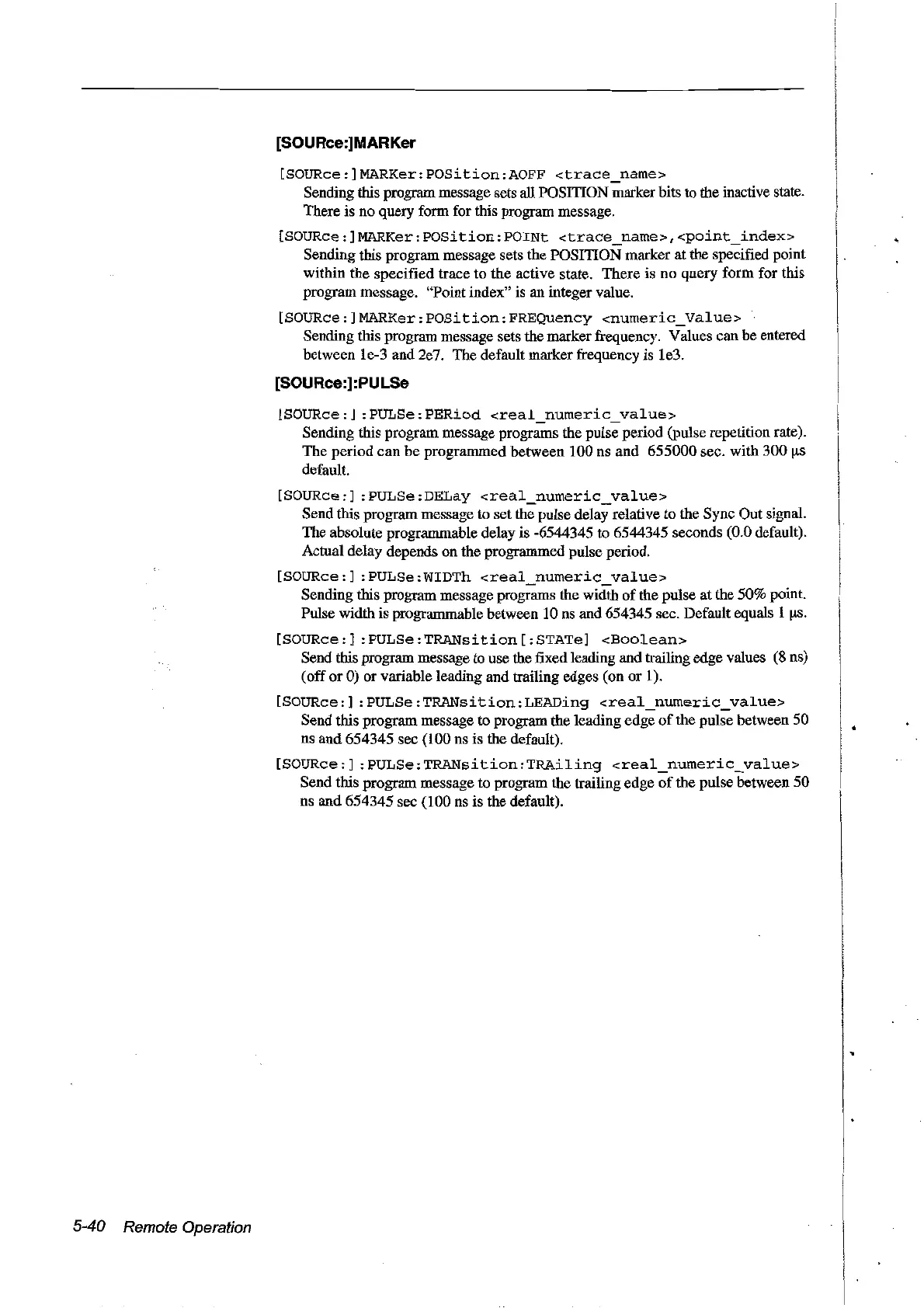

5-40 Remote Operation
[SOURce:]MARKer
[SOURce:]MARKer:POSition:AOFF
<trace_name>
Sending this prograrn message sets
aIl
POSmON
marker bits to the inactive state.
There is no query form for this prograrn message.
[SOURce:]MARKer:POSition:POINt
<trace_name>,<point_index>
Sending this prograrn message sets the POSITION marker at the specified point
within the specified trace to the active state. There is no query form for this
program message. "Point index" is an integer value.
[SOURce:]MARKer:POSition:FREQuency
<numeric_Value>
Sending this prograrn message sets the marker frequency. Values can be entered
between
le-3
and 2e7. The default marker frequency is
le3.
[SOURce:]:PUL5e
lSOURce:J
:PULSe:PERiod
<real_numeric_value>
Sending this prograrn message programs the pulse period (pulse repetition rate).
The
period
can
be
programmed between 100 ns and 655000 sec. with 300!-ts
default.
[SOURce:] :PULSe:DELay
<real_numeric_value>
Send this prograrn message to set the pulse delay relative to the Sync Out signal.
The absolute programmable delay is -6544345 to 6544345 seconds (0.0 default).
Actual delay depends on the prograrnmed pulse period.
[SOURce:] :PULSe:WIDTh
<real_numeric_value>
Sending this prograrn message prograrns the width
of
the pulse
at
the 50% point.
Pulse width is programmable between 10 ns and 654345 sec. Default equals 1
!-tS.
[SOURce:]
:PULSe:TRANsition[:STATe]
<Boolean>
Send this prograrn message
ta
use the fixed leading and trailing edge values (8 ns)
(off
or
0)
or
variable leading and trailing edges (on
or
1).
[SOURce:]
:PULSe:TRANsition:LEADing
<real_numeric_value>
Send this prograrn message to prograrn the leading edge
of
the pulse between
50
ns and 654345 sec (100 ns is the default).
[SOURce:]
:PULSe:TRANsition:TRAiling
<real_numeric_value>
Send this prograrn message to prograrn the trailing edge
of
the pulse between
50
ns and 654345 sec (100 ns is the default).
