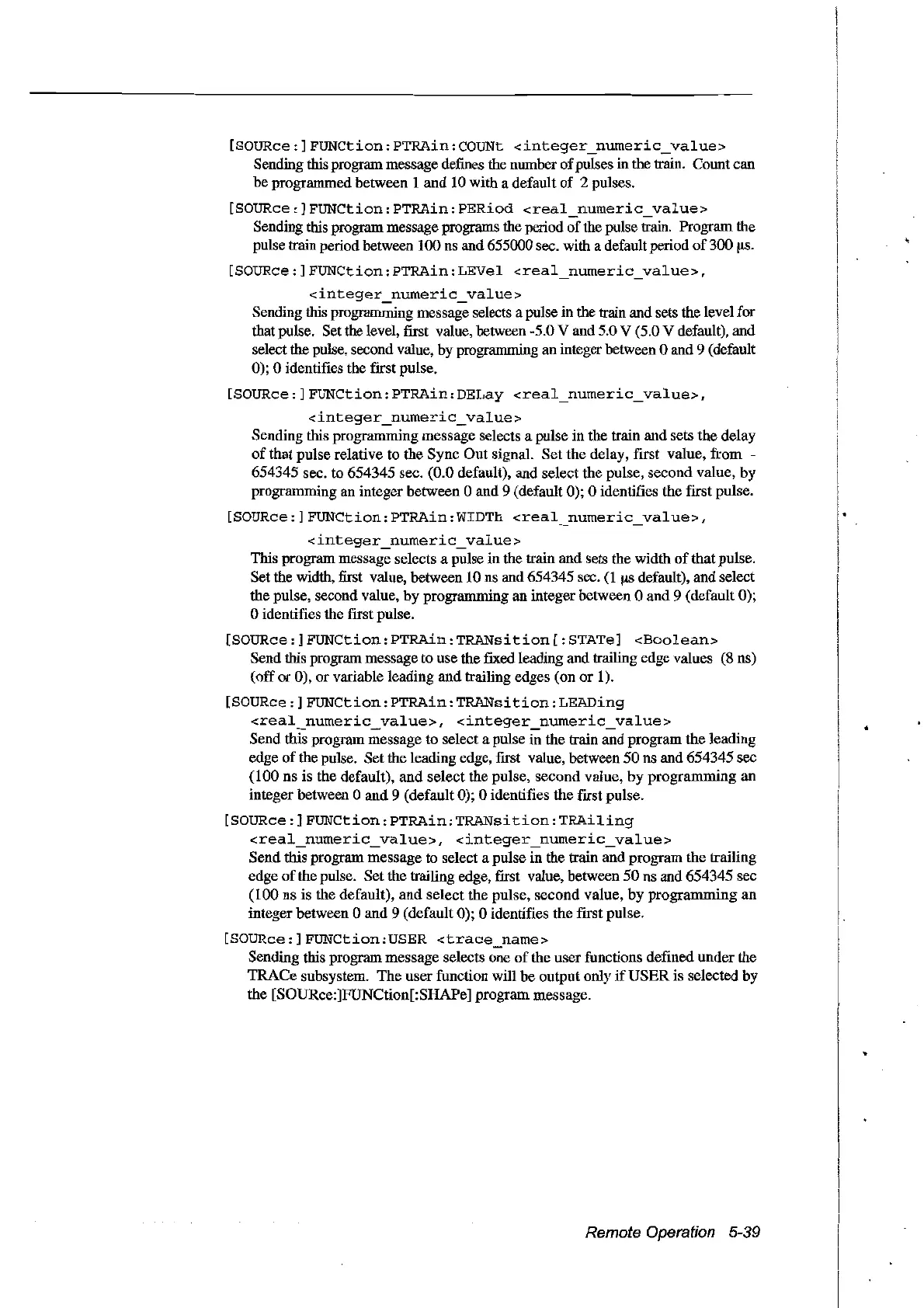

[SOURce:]FUNCtion:PTRAin:COUNt
<integer_numeric_value>
Sending this program message defines the number
of
pulses in the train. Count can
be
programmed between 1 and 10 with a default
of
2 pulses.
[SOURce:]FUNCtion:PTRAin:PERiod
<real_numeric_value>
Sending this program message programs the period
of
the pulse train. Program the
pulse train period between 100 ns and 655000 sec. with a default period
of
300
""s.
[SOURce:]FUNCtion:PTRAin:LEVel
<real_numeric_value>,
<
integer_numeric_value>
Sending this programming message selects a pulse in the train and sets the level for
that pulse. Set the level, fust value, between -5.0 V and 5.0 V (5.0 V default), and
select the pulse, second value, by programming an integer between 0 and 9 (default
0); 0 identifies the frrst pulse.
[SOURce:]FUNCtion:PTRAin:DELay
<real_numeric_value>,
<
integer_numeric_value
>
Sending this programming message selects a pulse in the train and sets the delay
ofthat
pulse relative to the Sync
Out
signal. Set the delay, first value, from -
654345 sec. to 654345 sec. (0.0 default), and select the pulse, second value, by
programming an integer between 0 and 9 (default 0); 0 identifies the first pulse.
[SOURce:]FUNCtion:PTRAin:WIDTh
<real_numeric_value>,
<
integer_numeri
c_value
>
This program message selects a pulse
in
the train and sets the width
of
that pulse.
Set the width, fust value, between
IOns
and 654345 sec.
(1
f,tS
default), and select
the pulse, second value,
by
programming an integer between 0 and 9 (default 0);
oidentifies the first pulse.
[SOURce:]FUNCtion:PTRAin:TRANsition[:STATe]
<Boolean>
Send this program message to use the
flXed
learling and trailing edge values (8 ns)
(off
or
0), or variable leading
and
trailing edges (on
or
1).
[SOURce:]FUNCtion:PTRAin:TRANsition:LEADing
<real_numeric_value>t
<integer_numeric_value>
Send this program message to select a pulse in the train and program the leading
edge
of
the pulse. Setthe leading edge, first value, between 50 ns and 654345 sec
(IOO
ns is the default),
and
select the pulse, second value,
by
programming an
integer between 0 and 9 (default 0); 0 identifies the first pulse.
[SOURce:]FUNCtion:PTRAin:TRANsition:TRAiling
<real_numeric_value>t
<integer_numeric_value>
Send this program message to select a pulse
in
the train and program the trailing
edge
of
the pulse. Setthe trailing edge, flfst value, between
50
ns and 654345 sec
(100 ns is the default),
and
select the pulse, second value,
by
programming an
integer between 0 and 9 (default 0); 0 identifies the first pulse.
[SOURce:]FUNCtion:USER
<trace_name>
Sending this program message selects one
of
the user fonctions defined under the
TRACe subsystem.
The
user function will
be
output only
if
USER
is selected by
the [SOURce:]FUNCtion[:SHAPe] program message.
Remote Operation 5-39
