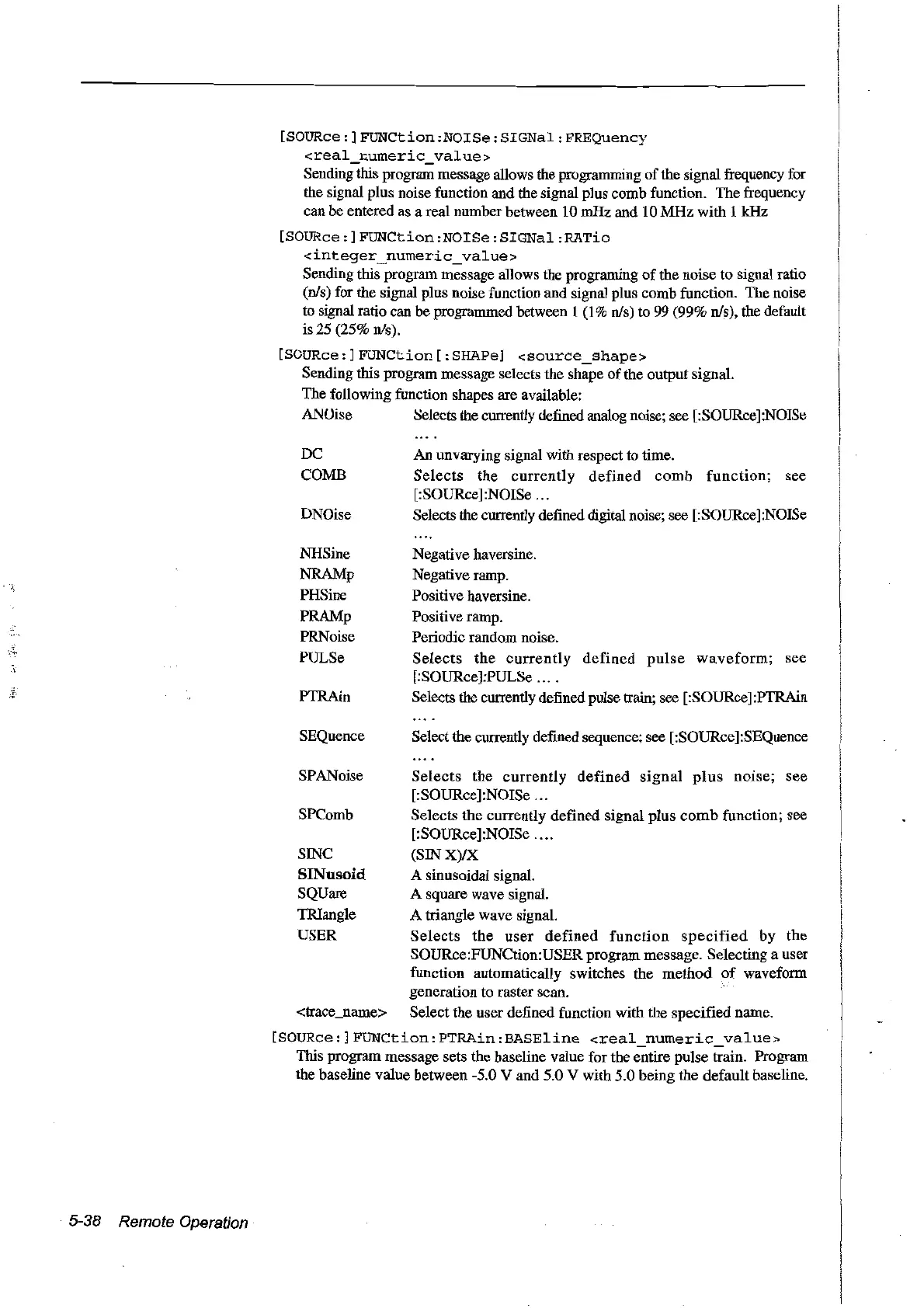

[SOURce:]FUNCtion:NOISe:SIGNal:FREQuency
<real
numeric
value>
- -
Sending this prograrn message allows the programming
of
the signal frequency for
the signal plus noise function and the signal plus comb function.
The
frequency
can be entered as a real number betwecn 10 mHz and 10
MHz
with 1 kHz
[SOURce:]FUNCtion:NOISe:SIGNal:RATio
<
integer_numeric_value>
Sending this program message allows the programing
of
the noise to signal ratio
(n/s) for the signal plus noise function and signal plus comb function. The noise
to signal ratio can be prograrnmed between 1
(l
% n/s) to 99 (99% nls), the default
is
25 (25% n/s).
[SOURce:]FUNCtion[:SHAPe]
<source_shape>
Sending this program message selects the shape
of
the output signal.
The following function shapes are available:
ANOise Selects the currently defined analog noise; sec [:SOURce):NOISt;j
DC
COMB
DNOise
NHSine
NRAMp
PHSine
PRAMp
PRNoise
PULSe
PTRAin
SEQuence
An unvarying signal with respect to time.
Selects
the
currently
defined
comb
function;
see
[:SOURce):NOISe
...
Selects the currently defined digital noise; sec [:SOURce):NOISe
Negative haversine.
Negative ramp.
Positive haversine.
Positive ramp.
Periodic random noise.
Selects
the
currently
defined
pulse
waveform;
see
[:SOURce):PULSe
....
Selects the currently defined pulse train; sec [:SOURce]:PTRAin
Select the currently defined sequence; see [:SOURce):SEQuence
SPComb
SPANoise
SINe
SINusoid
SQUare
TRIangle
USER
5-38
Remote
Operation
Selects
the
currently
defined
signal
plus
noise;
see
[:SOURce):NOISe
...
Selects
the
currently defined signal plus
comb
function; see
[:SOURce]:NOISe .
ou
(SINX)/X
A sinusoidal signal.
A square wave signal.
A triangle wave signal.
Selects
the
user
defined
function
specified
by
the
SOURce:FUNCtion:USER program message. Selecting a user
function automatically switches the
methodof
waveform
generation to raster scan.
<trace_name> Select the user defined function with the specified name.
[SOURce:]FUNCtion:PTRAin:BASEline
<real_numeric_value>
This program message sets the baseline value for
the
entire pulse train. Program
the baseline value between -5.0 V and
5.0
V with
5.0
being
the
default baseline.
