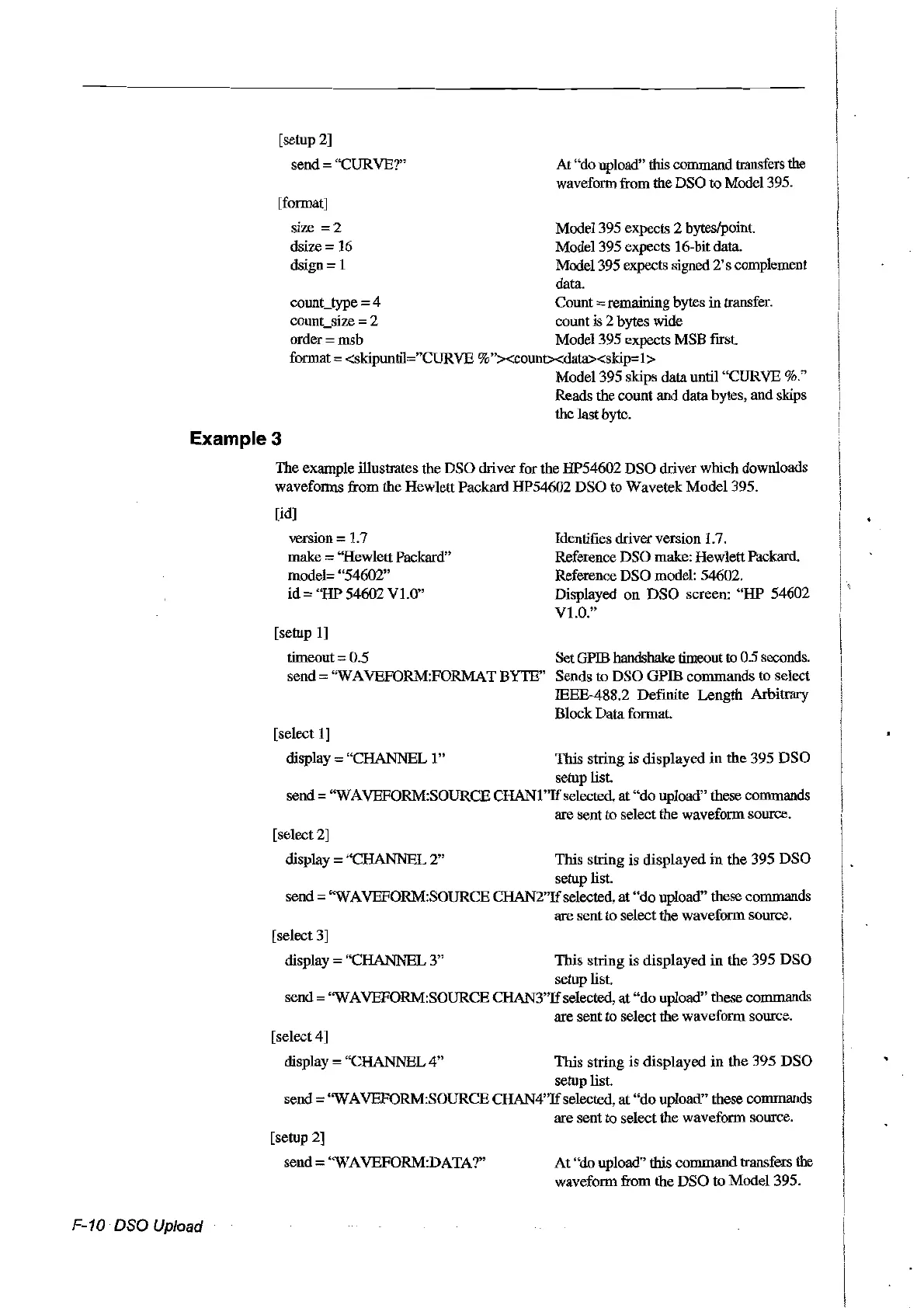

[setup 2]
send = "CURVE?"
[fonnat]
At "do upload" this command transfers the
wavefonn from the OSO to Mode1395.
size
=2
dsize 16
dsign= 1
Model 395 expects 2 bytes/point.
Madel 395 expects 16-bitdata.
Model395 expects signed
2' s complement
data.
counctype= 4 Count = remaining bytes in transfer.
councsize = 2 count is 2 bytes wide
order = msb Madel 395 expects MSB frrst.
fonnat = <skipuntil="CURVE %"><count><data><skip=1>
Model395 skips data until "CURVE %."
Reads the count and data bytes, and skips
thc last byte.
Example3
The example illustrates the OSO driver for the HP54602 OSO driver which downloads
wavefonns from the Hewlett Packard HP54602 OSO to Wavetek Mode1395.
[id]
version = 1.7
make = "HewlettPackard"
model= "54602"
id "HP 54602 V1.0"
[setup
1]
timeout=0.5
send
= "W AVEFORM:FORMAT BY1E"
Identifies driver version 1.7.
Reference OSO make: Hewlett Packard.
Reference OSO model: 54602.
Oisplayed on
OSO screen: "HP 54602
V1.0."
SetGPIB handshake timeout
ta 0.5 seconds.
Sends to OSO GPIB commands to select
IEEE-488.2 Oefinite Length Arbitrary
Block Oata fonnat.
[select
1]
display ="CHANNEL 1" This string is displayed in the 395 OSO
setup list.
send
= "W AVEFORM:SOURCECHAN1 "If selected, at "do upload" these commands
are sent to select the waveform source.
[select
2]
display ="CHANNEL 2" This string is displayed in the 395 osa
setup list.
send
= "W AVEFORM:SOURCE CHAN2"Ifselected, at "do upload" these commands
are sent to select the wavefonn source.
[select 3]
display = "CHANNEL
3" This string is displayed in the 395 osa
setup list.
send
"W AVEFORM:SOURCE CHAN3"Ifselected, at "do upload" these commands
are sent to select the waveform source.
[select 4]
display
= "CHANNEL 4" This string is displayed in the 395 osa
setup list.
send
= "W AVEFORM:SOURCE CHAN4"Ifselected, at "do upload" these commands
are sent to select the waveform source.
F-10 osa Upload
[setup 2]
send
= "WA VEFORM:OATA?" At "do upload" this commandtransfers the
waveform from the osato Model 395.
