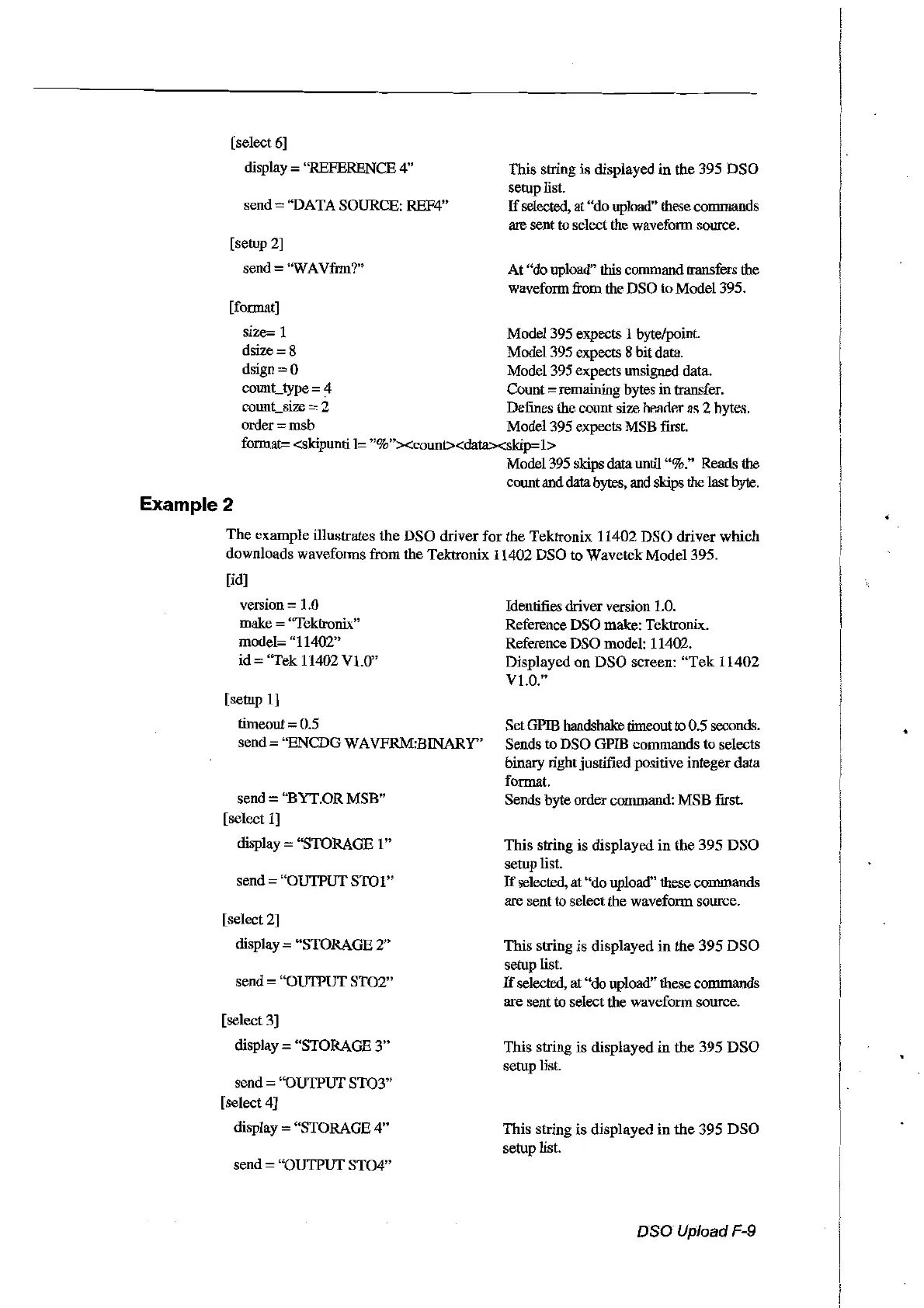

[select 6]
display = "REFERENCE 4"
send = "DATA SOURCE: REF4"
[setup 2]
send "WAVfrm?"
This string is displayed in the 395
DSO
setup list.
If
selected.,
at "doupload" these commands
are sent
to selectthe waveform source.
At"do upload" this command transfers the
waveform from the DSO
ta
Model 395.
[format]
size=
1 Madel 395 expects 1 byte/point.
dsize =
8 Model 395 expects 8 bitdata.
dsign = 0 Model 395 expects unsigned data.
counUype
4 Count = remaining bytes in transfer.
counCsize
= 2 Defmes the count
Si7..e
heAôeT
ilS
2 hytes.
order
=msb Model 395 expects MSB first.
format= <skipunti
1=
"%"><count><data><skip=1>
Model395 skips
data
until "%." Reads the
countand data
bytes,
and skips the last byte.
Example 2
The
example illustrates the
DSO
driver for the Tektronix 11402 DSO
driver
which
downloads waveforms from the Tektronix 11402 DSO to Wavetek Model 395.
[id]
version = 1.0
make = "Tektronix"
model= "11402"
id
=
'Tek
11402 V1.0"
[setup
1]
timeout = 0.5
send "ENCDG WAVFRM:BINARY"
send "BYT.OR MSB"
[select
1]
display = "STORAGE 1"
send=
"OUTPUT
STOl"
[select 2]
display = "STORAGE
2"
send = "OUTPUT
ST02"
[select 3]
display "STORAGE
3"
send = "OUTPUT
ST03"
[select4]
display = "STORAGE
4"
send = "OUTPUT
ST04"
Identifies driver version 1.0.
Reference DSO make: Tektronix.
Reference DSO model: 11402.
Displayed
on
DSO
screen:
"Tek
11402
V1.0."
SetGPIB handshake timeoutto 0.5 seconds.
Sends to DSO GPIB commands
ta
selects
binary rightjustified positive integer
data
format.
Sends byte ordercommand: MSB fust.
This string is displayed
in
the
395
DSO
setup list.
If
selected.,
at"do upload" these commands
are sent to select the waveform source.
This string is displayed
in
the
395
DSO
setup list.
If
selected, at "do upload" these commands
are sent to select the waveform source.
This string
is
displayed
in
the
395
DSO
setup list.
This string is displayed
in
the
395
DSO
setup list.
Dsa
Upload F-9
