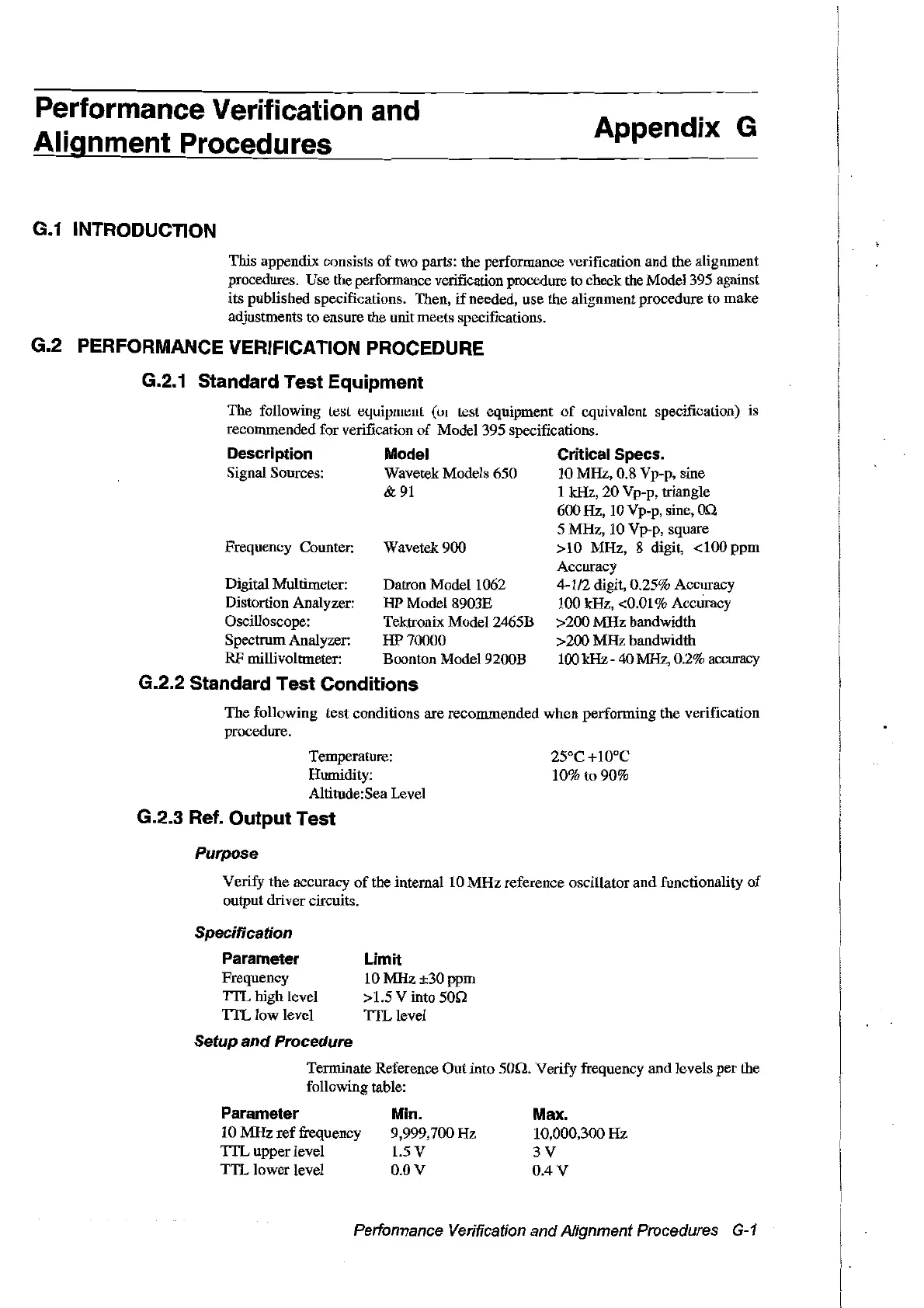

Performance Verification and
Alignment Procedures
Appendix G
G.1
INTRODUC"nON
This appendix consists
of
two parts: the performance verification and the alignment
procedures. Use the performance verification procedure to check
the Model395 against
its published specifications. Then,
if
needed, use the alignment procedure
to
make
adjustments to ensure the unit meets specifications.
G.2 PERFORMANCE VERIFICATION PROCEDURE
G.2.1 Standard Test Equipment
Digital Multimeter: Datron Model 1062
Distortion Analyzer:
HP
Model 89ü3E
Oscilloscope: Tektronix Model 2465B
Spectrum Analyzer: HP 70000
RF
millivoltrneter: Boonton Model 9200B
G.2.2 Standard Test Conditions
Wavetek900
The following ltlsl
tXJ.uipultml
(01
test equipment
of
cquivlllcnt specification) is
recommended for verification
of
Model 395 specifications.
Description
Model
Critical Specs.
Signal Sources: Wavetek Models 650 10 MHz, 0.8 Vp-p, sine
&
911kHz,
20
Vp-p, triangle
600 Hz, 10 Vp-p, sine,
on
5 MHz, 10 Vp-p, square
>10 MHz, 8 digit, <100
ppm
Accuracy
4-112
digit, 0.25% Accuracy
100 kHz, <0.01% Accmacy
>200
MHz
bandwidth
>200
MHz
bandwidth
100
kHz- 40
MHz,
0.2% accuracy
Frequency Counter:
The
following test conditions are recommended when performing the verification
procedure.
Temperature:
Humidity:
Altitude:Sea Level
G.2.3 Ref. Output Test
25°C+I0°C
10%t090%
Purpose
Verify the accuracy
of
the internaI 10
MHz
reference oscillator
and
functionality
of
output driver circuits.
Specification
Parameter
Frequency
TTL
high level
TTL
low
level
Setup
and
Procedure
Limit
10 MHz ±30
ppm
>1.5 V into
500
TTL level
Max.
10,000,300 Hz
3V
0.4 V
Terminate Reference Outinto
500.
Verify frequency and levels per the
following table:
Parameter Min.
10
MHz
reffrequency 9,999,700 Hz
TTL
upper level 1.5 V
TTL
lower level 0.0 V
Performance Verification andAlignment Procedures
G-1
