Limit
OV±0.5V
10V ±0.5V
1
kQ±5%

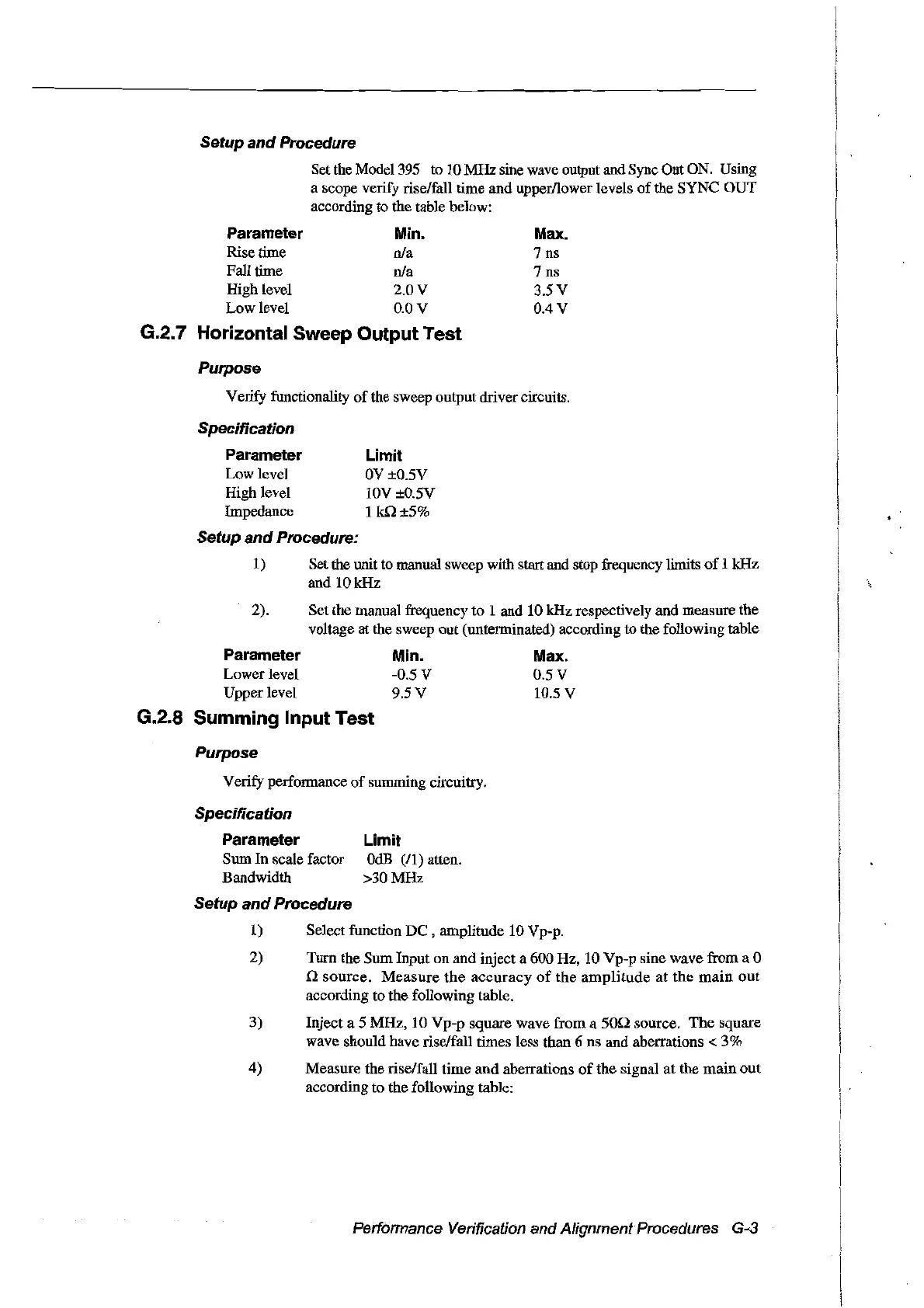

Setup and Procedure
Set the Model 395 to 10
MHz
sine wave output and Sync OutON. Using
a scope verify rise/faIl time and upperlIower leveIs
of
the SYNC OUT
according to the table below:
Parameter
Min.
Max.
Rise time nia 7 ns
FaU
time nia 7 ns
High level 2.0 V 3.5 V
Low level 0.0 V 0.4 V
G.2.7 Horizontal Sweep Output Test
Pur
pose
Verify functionality
of
the sweep output driver circuits.
Specification
Parameter
Lowlevel
High level
Impedance
Setup
and
Procedure:
1) Set the unit to manuaI sweep with start and stop frequency limits
of
1 kHz
and
10kHz
2). Set the manual frequency to 1 and 10 kHz respectively and measure the
voltage at the sweep out (unterminated) according to the following table
Parameter Min.
Max.
Lower level -0.5 V 0.5 V
Upper level 9.5
V 10.5 V
G.2.8 Summing Input Test
Purpose
Verify performance
of
summing circuitry.
Specification
Parameter
Sum In scale factor
Bandwidth
Limit
OdB
(/1) atten.
>30 MHz
Setup
and
Procedure
1) Select function
De,
amplitude 10 Vp-p.
2) Turn the Sum Input on and inject a 600 Hz,
10 Vp-p sine wave from a 0
n
source.
Measure
the
accuracy
of
the
amplitude
at
the
main
out
according to the following table.
3) Inject a 5 MHz, 10 Vp-p square wave from a
50n
source.
The
square
wave should have rise/faIl times less than 6 ns and aberrations
< 3%
4) Measure the rise/faIl time
and
aberrations
of
the signal
at
the main out
according to the following table:
Performance Verification
and
AlignmentProcedures
G-3
