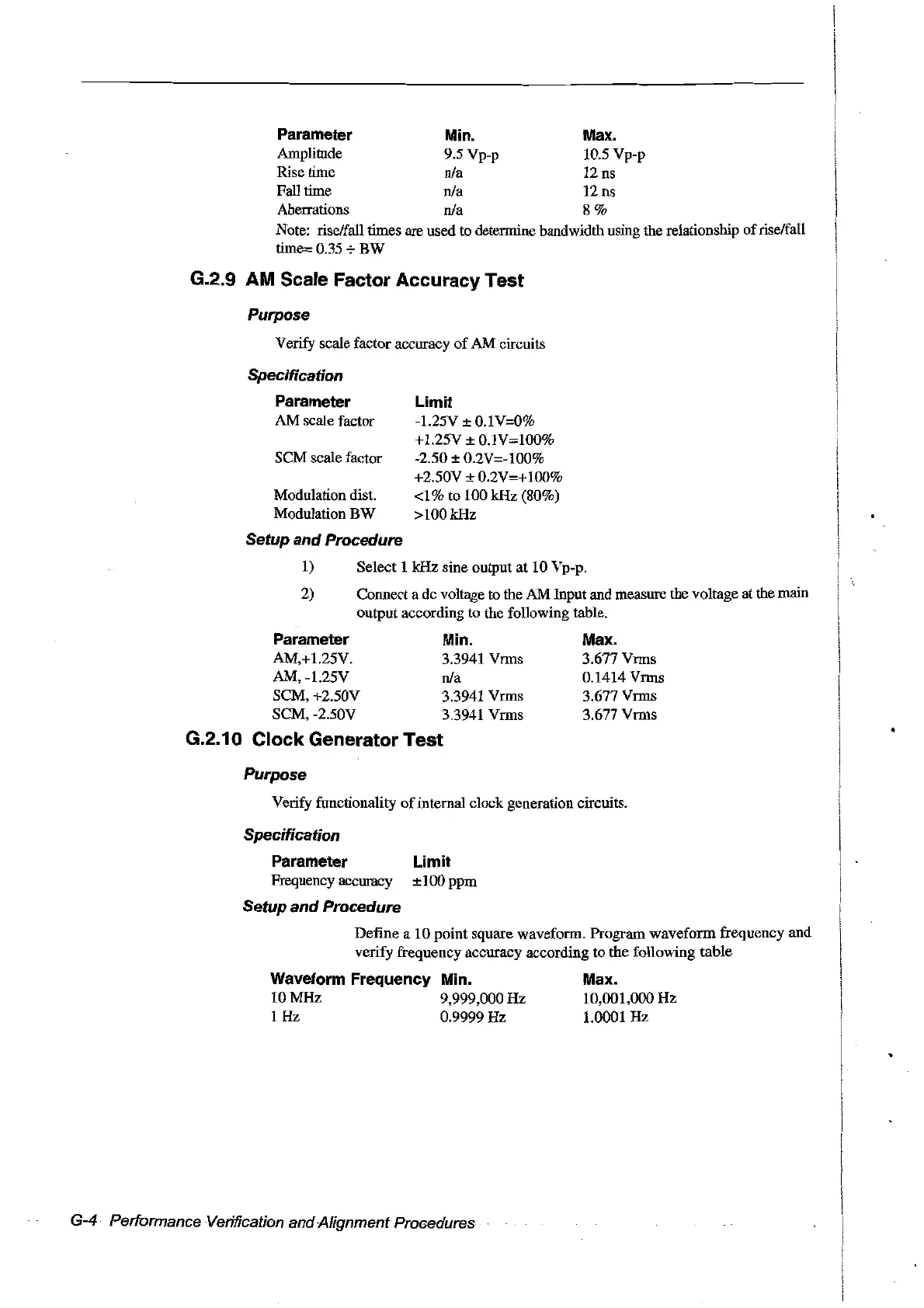

Parameter Min.
Max.
Amplitude 9.5 Vp-p 10.5 Vp-p
Rise time nia
12
ns
Fall time nia
12
ns
Aberrations nia 8 %
Note: rise/fall times are used to deterrnine bandwidth using the relationship ofrise/faIl
time:
0.35 7 BW
G.2.9 AM Scale Factor Accuracy Test
Purpose
Verify scale factor accuracy ofAM circuits
Specification
Parameter
AM scale factor
SCM scale factor
Modulation dist.
Modulation BW
Limit
-1.25V ±
O.IV=O%
+1.25V ± O.IV=loo%
-2.50 ±
0.2V=-IOO%
+2.S0V ± 0.2V=+100%
<1
% to 100 kHz (80%)
>100 kHz
Setup
and
Procedure
1)
Select 1 kHz sine output at 10 Vp-p.
2) Connect a dc voltage
to the
AM
Input and rneasure the voltage at the main
output according to the fol1owing table.
Parameter Min.
AM,+1.25V. 3.3941 Vrrns
AM, -1.25V nia
SCM, +2.50V 3.3941 Vrrns
SCM, -2.50V 3.3941 Vrrns
G.2.10 Clock Generator Test
Max.
3.677 Vrrns
0.1414 Vrrns
3.677 Vrrns
3.677 Vrrns
Pur
pose
Verify functionality
of
internal clock generation circuits.
Specification
Parameter Limit
Frequency accuracy ±100 pprn
Setup
and
Procedure
Define a 10 point square waveforrn. Prograrn waveform frequency and
verify frequency accuracy according to the following table
Waveform Frequency Min.
10 MHz 9,999,000 Hz
1 Hz 0.9999 Hz
G-4 Performance Verification
and
Alignment Proeedures
Max.
10,001,000 Hz
1.0001 Hz
