22 Problem Solving
876
Problem Solving
22

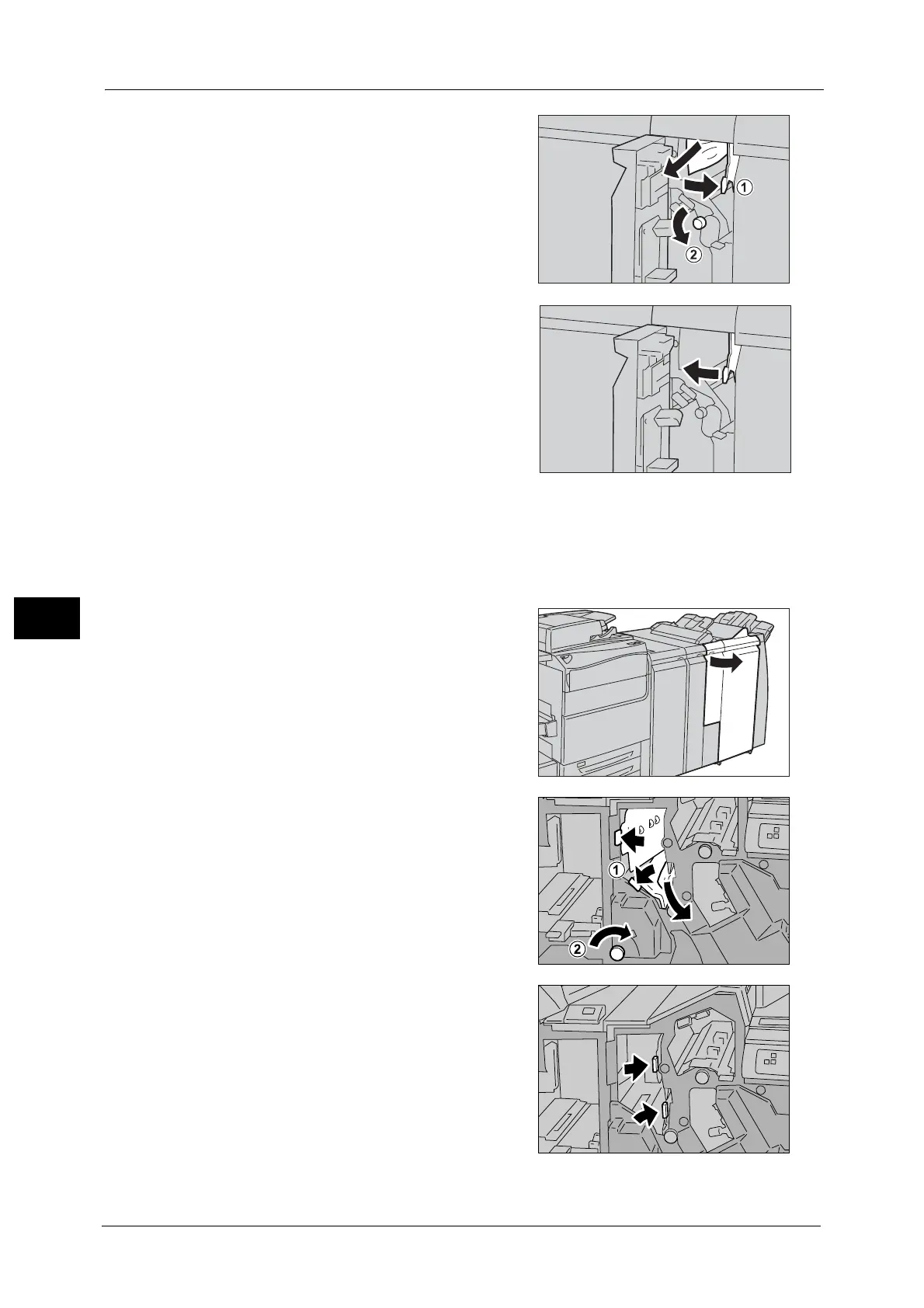

2 Move the handle [1b] to the right (1), turn the
knob [1c] to the left (2), and remove the
jammed paper.
Note • If paper is torn, check for any torn pieces of
paper inside the machine.
• If you cannot see jammed paper, check
handle [1d] as well.
• When the D4/D5 Folder Unit is installed,
check the handle [2a] as well.
3 Return the handle [1b] to its original position.
4 Close the finisher left door.
Note • A message will be displayed and the machine will not operate if the finisher left door is even slightly
open.
Paper Jams at the Handles [3b], [3d], and Knob [3a]
1
Make sure that the machine has stopped, and
open the finisher right door.
2 Move the handles [3b] and [3d] (1), turn the
Knob [3a] to the right (2), and remove the
jammed paper.
Note • If paper is torn, check for any torn pieces of
paper inside the machine.
• If you cannot see jammed paper, check
handle [1d] as well.
• When the D4/D5 Folder Unit is installed,
check the handle [2a] as well.
3 Return the handles [3b] and [3d] to their
original position.
To Next Page
