Fujitsu 8FX User Manual

MB95630H Series
MN702-00009-2v0-E FUJITSU SEMICONDUCTOR LIMITED 145
CHAPTER 11 8/16-BIT COMPOSITE TIMER
11.6 Operation of Interval Timer Function
(One-shot Mode)

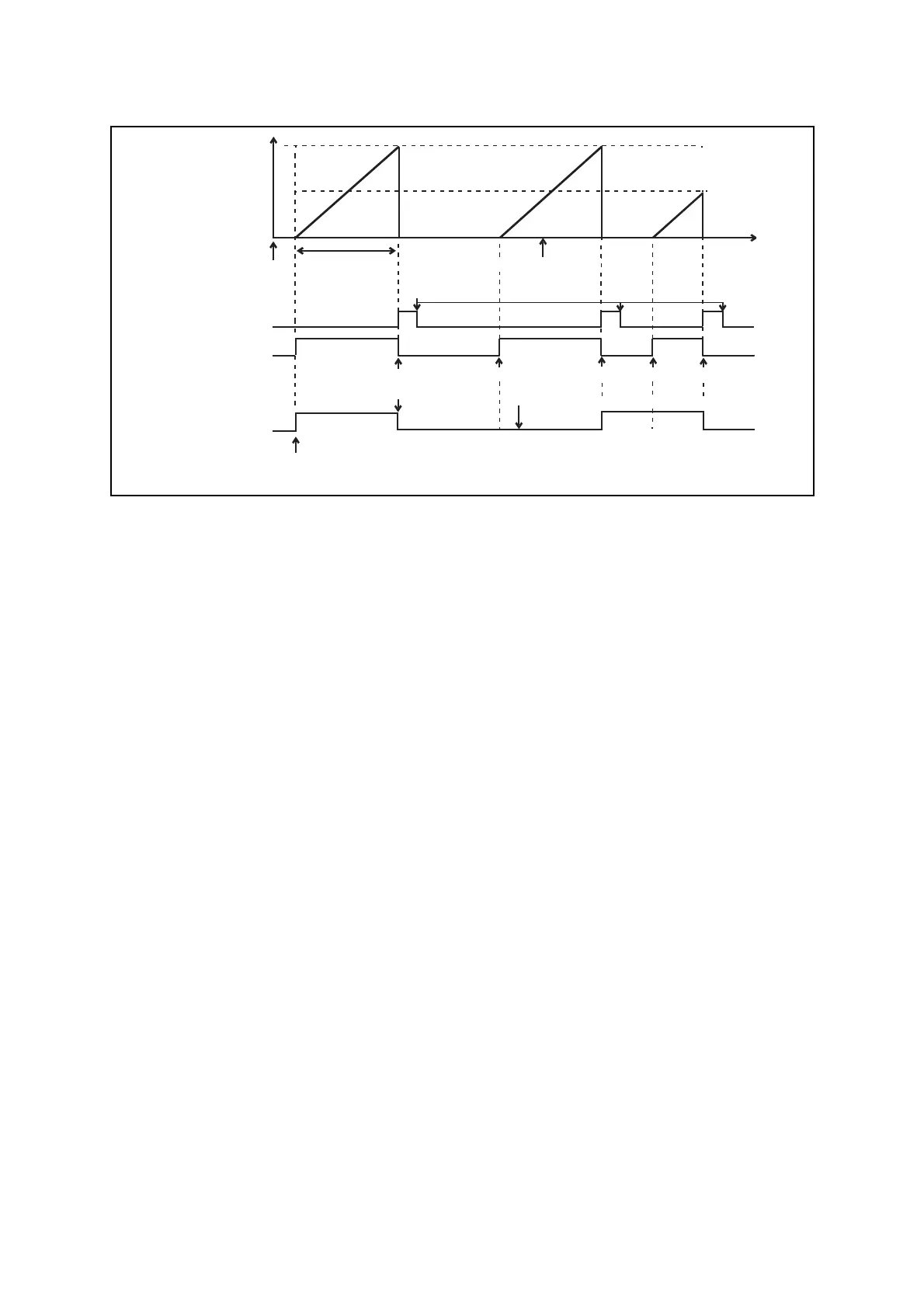

Figure 11.6-2 Operation of Interval Timer Function in 8-bit Operation (One-shot Mode)
Counter value
0xFF
0x80
0x00
Timer cycle
Cleared
by program
Time
IF bit
STA bit
Tn0DR/Tn1DR
value (0xFF)
Timer output pin
Automatically cleared
Reactivated
Inverted
For initial value "1" on activation
*: If the Tn0DR/Tn1DR data register value is modified during operation, the new value is used from the next active cycle.
Automatically cleared Automatically cleared
Reactivated
Reactivated with output initial value unchanged ("0")
Tn0DR/Tn1DR value modified (0xFF→0x80)*
