CHAPTER 28 COMPARATOR
28.2 Configuration
28.2 Configuration
The comparator module consists of the following blocks:
• Comparator
• Edge detection circuit
• Comparator control register (CMR0C)

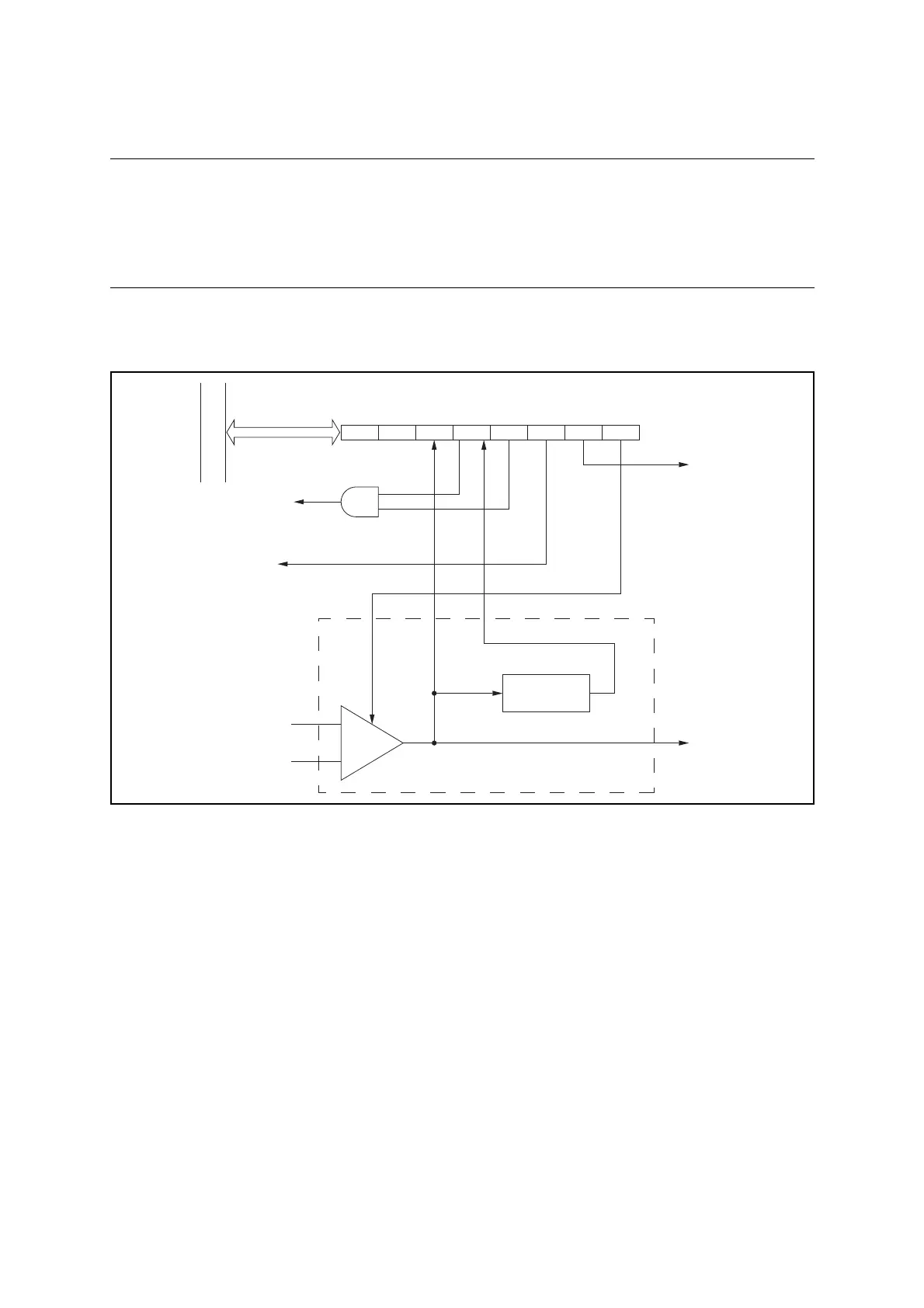

■ Block Diagram of Comparator
Figure 28.2-1 Block Diagram of Comparator
VCID
Edge detection
circuit
Comparator
IEIFOS-
CMPn_P
CMPn_N
(From an external pin)
(From an external pin)
- VCOE PD
Comparator control register (CMR0C)
Internal bus
Interrupt request
CMPn_O (To an external pin)
To the external pin
control circuit
(Enable CMPn_O output
via an external pin)
To the external pin control circuit
(When CMPn_P and CMPn_N
analog input is enabled (VCID = 0),
the corresponding GPIO input and
output is disabled.)
+
−
