Fujitsu 8FX User Manual

MB95630H Series
MN702-00009-2v0-E FUJITSU SEMICONDUCTOR LIMITED 405
CHAPTER 21 MULTI-PULSE GENERATOR
21.5 Operations
21.5.4.2 At 16-bit Reload Timer Underflow
The timing change of the output pin OPTx, which is triggered by the 16-bit
reload timer underflow, is shown in Figure 21.5-14 and Figure 21.5-15.
■ Timing Generated by Reload Timer Underflow

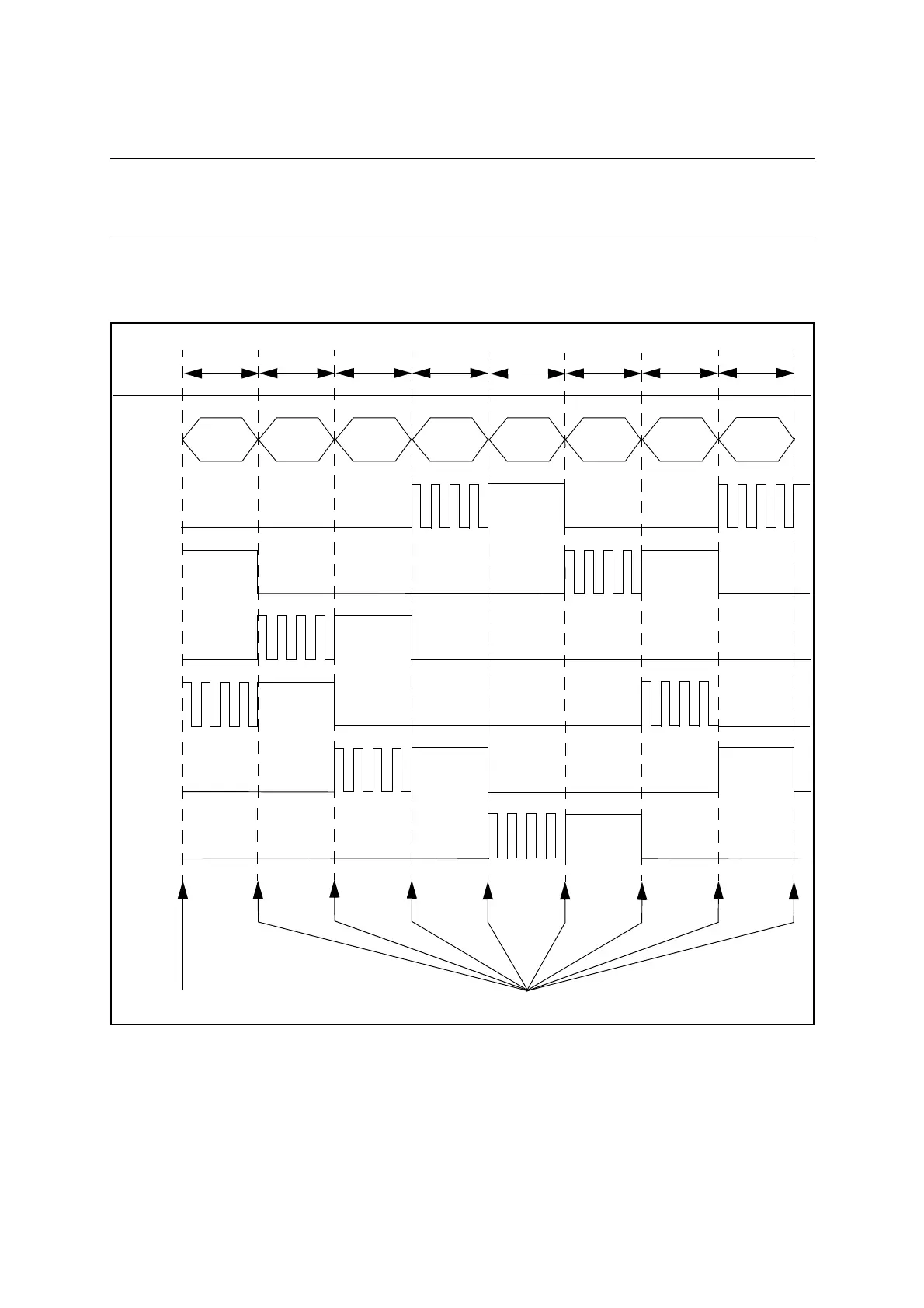

Figure 21.5-14 Timing Generated by Reload Timer Underflow
No. 0
No. 4
No. 6
No. 2
No. 3
No. 1
No. 5 No. A
0b0100 0b0110 0b0010 0b0011 0b0001 0b0101 0b1010 0b1011
BNKF,
RDA2,
RDA1,
OPT5
OPT4
OPT3
OPT2
OPT1
OPT0
Timer
16-bit reload timer underflow occurs
RDA0
starts
