CHAPTER 21 MULTI-PULSE GENERATOR
21.5 Operations
The data transfer from the 16-bit MPG output data buffer register (upper/lower) (OPDBRHx/
OPDBRLx) specified by the BNKF bit and the RDA[2:0] bits to the 16-bit MPG output data
register (upper) (OPDUR) is updated automatically whenever a 16-bit reload timer underflow
is generated as shown in Figure 21.5-15.
In order to use this method, use the 16-bit reload timer in reload mode. use the software trigger
to start the 16-bit reload timer. The 16-bit reload timer is needed for setting the update time in
advance and executing the continuous control action.
■ Timing Generated by Reload Timer Underflow (OPS[2:0] = 0b001)

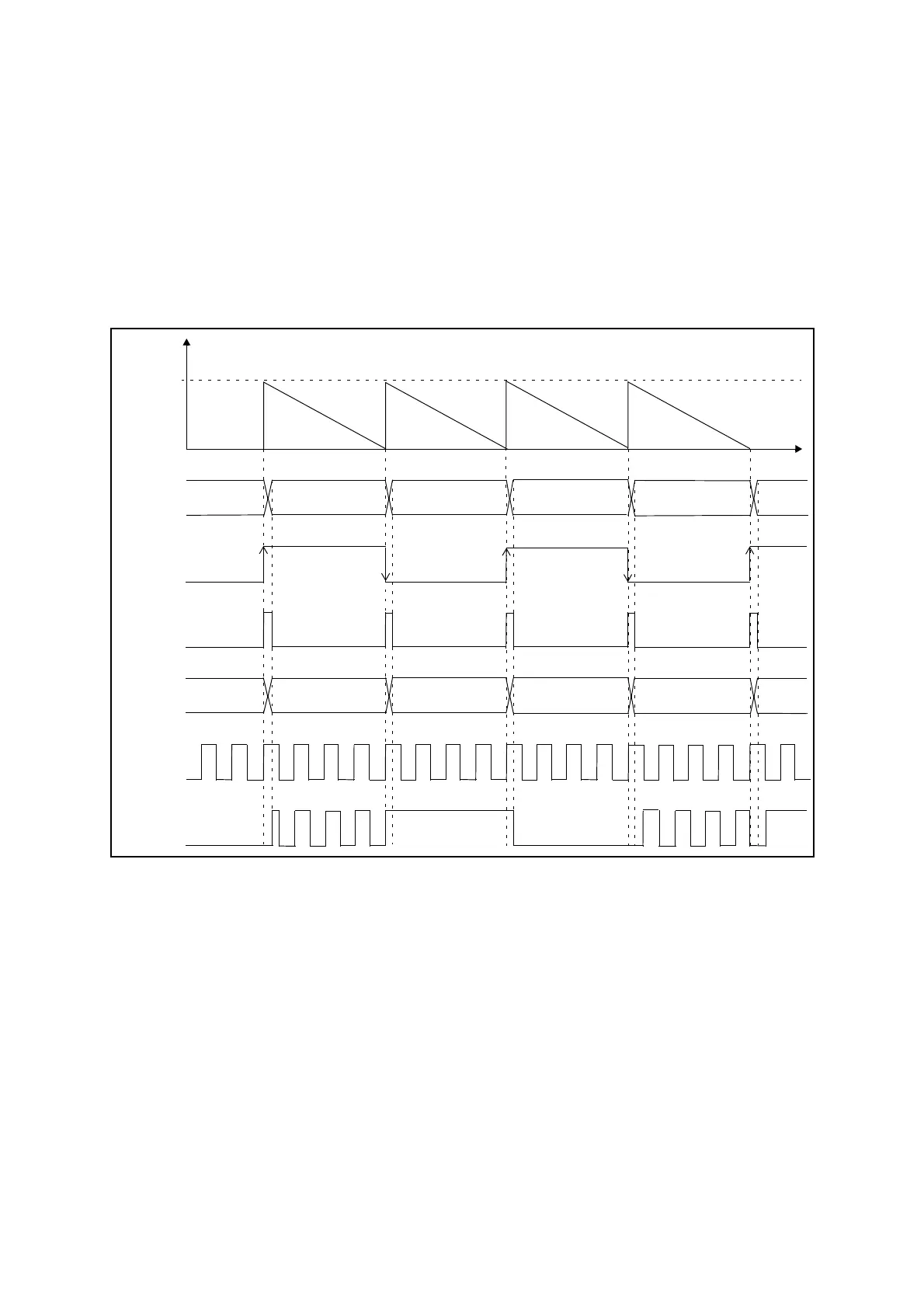

Figure 21.5-15 Timing Generated by Reload Timer Underflow (OPS[2:0] = 0b001)
OP0[1:0]
(OPDLR)
PPG
OPT0
0b010b00 0b11
0b00
0b10
0b1100b100 0b101
0b011
0b001
WTO
RDA[2:0]
(OPDUR)
Reload
timer
counter
action
WTIN0
(TOUT)
