CHAPTER 21 MULTI-PULSE GENERATOR
21.5 Operations
■ Using 16-bit Timer of Multi-pulse Generator
The timer is reset when write timing or position detection interrupt flag is set, which is
selectable by the MODE bit in the 16-bit MPG timer control status register (TCSR).
The timer can be started or stopped by setting the TMEN bit in the 16-bit MPG timer control
status register (TCSR). There is no timer overflow interrupt. Whenever the timer is restarted,
the current counter value is latched to a buffer for speed calculation.
If the counter value matches the 16-bit MPG compare clear register (upper/lower) (CPCUR/
CPCLR), it interrupts the CPU and the timer is reset.
Note:
If the values loaded to the 16-bit MPG compare clear register (upper) (CPCUR) and the
16-bit MPG compare clear register (lower) (CPCLR) are the same as the timer counter
value, the comparison operation will not be performed until the next occasion in which the
values of CPCUR and CPCLR are the same as the timer counter value.
The Compare Clear interrupt shares the same interrupt vector with the Write Timing interrupt
while Compare Match interrupt shares the same vector as that of the Position Detect interrupt.
■ 16-bit Timer in Multi-pulse Generator Operation Diagram

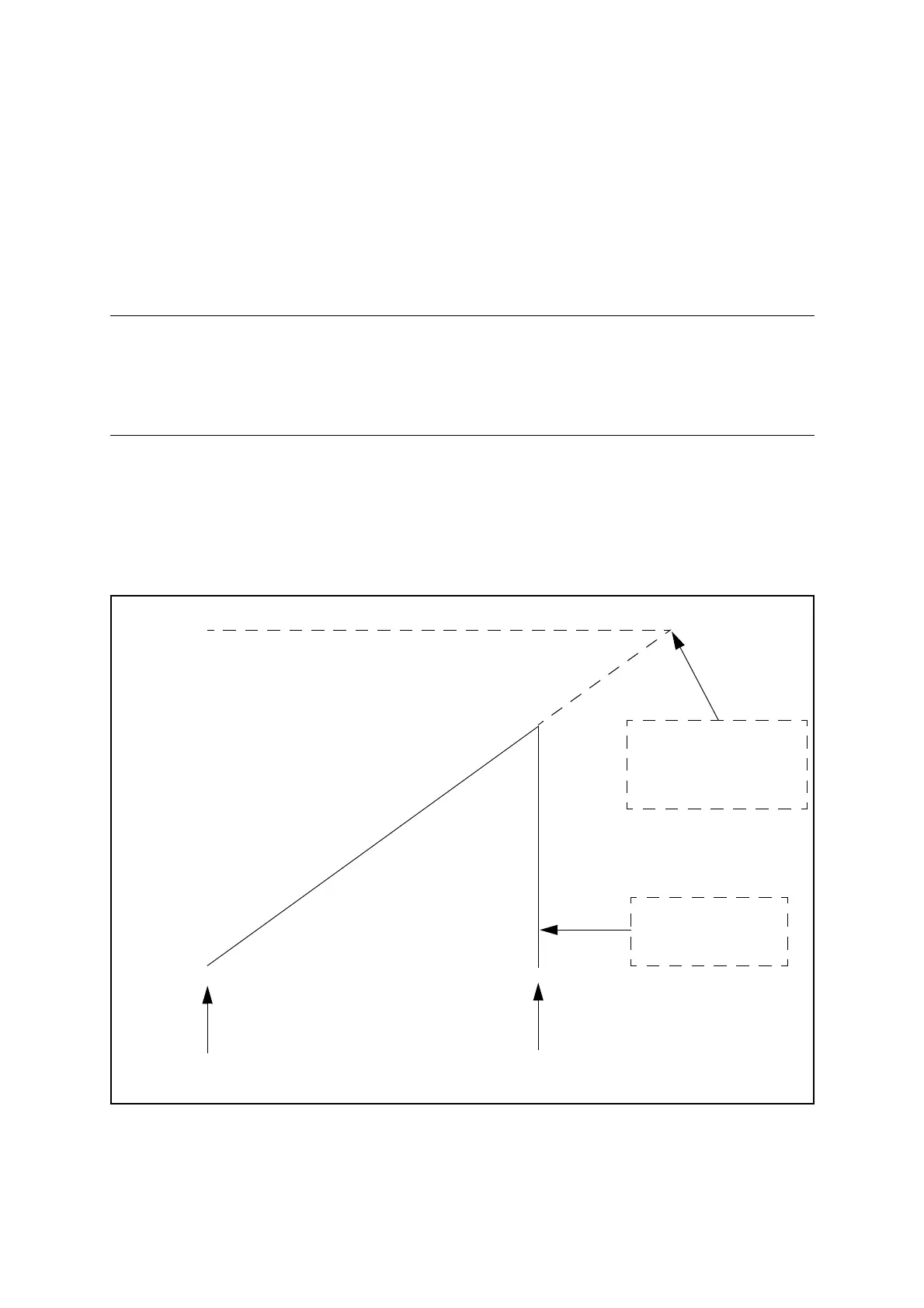

Figure 21.5-32 16-bit Timer in Multi-pulse Generator Operation Diagram
Counter value
Compare
Clear
Register
Timer is reset, which is triggered
by write timing or position detection.
Timer is reset, which is triggered
by write timing or position detection.
Current counter
value is latched
into buffer.
If no desired position
detect signal appears
before a timeout period,
it means abnormal.
(CPCUR,
CPCLR)
