MB95630H Series
MN702-00009-2v0-E FUJITSU SEMICONDUCTOR LIMITED 575
CHAPTER 26 DUAL OPERATION FLASH MEMORY
26.8 Registers

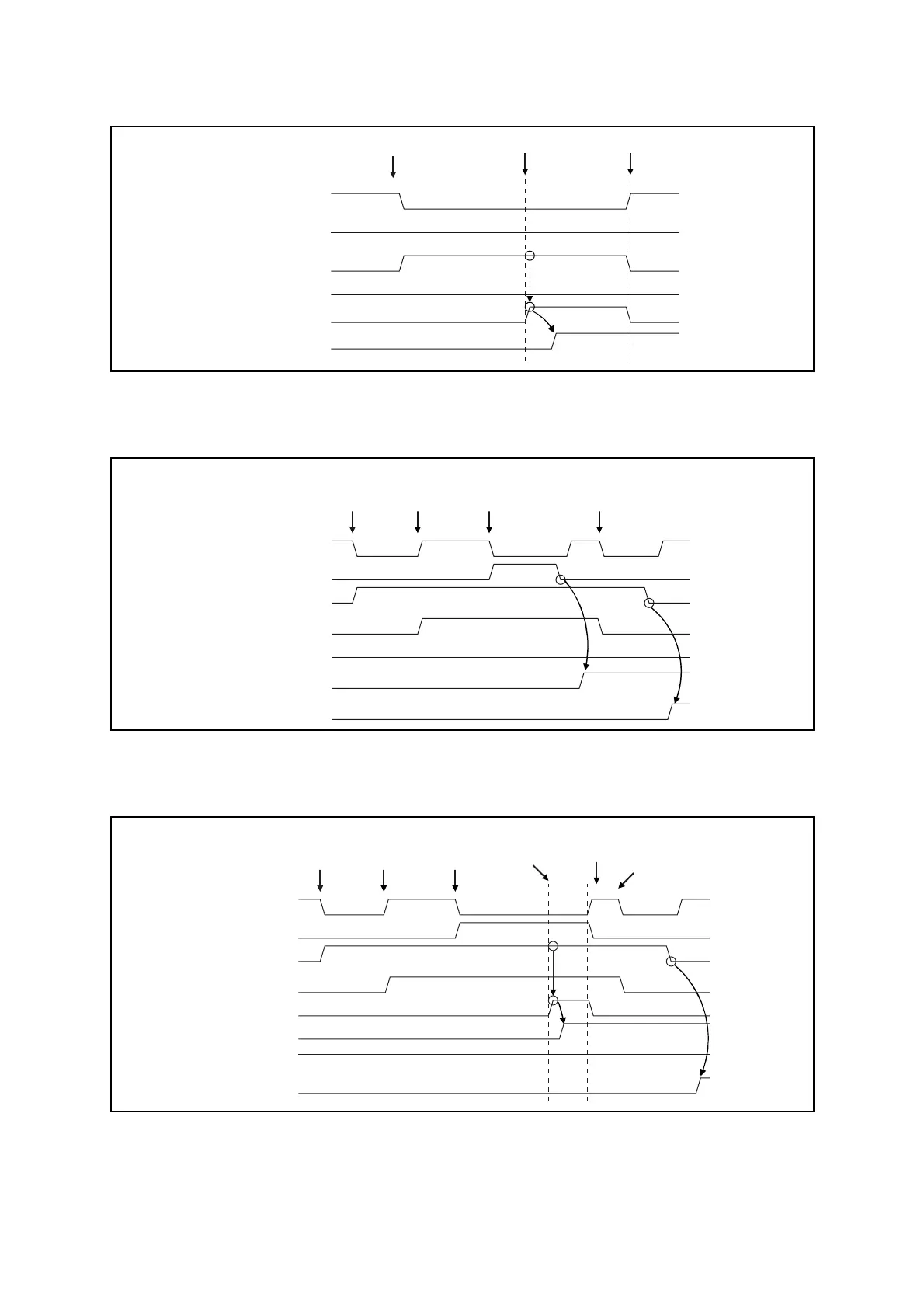

Figure 26.8-6 FSR2:ERSTO when Flash Memory Sector Erase Failed
Figure 26.8-7 FSR2:PGMEND and FSR2:ERSEND when Flash Memory Programming Is in
Progress with Flash Memory Sector Erase Suspended
Figure 26.8-8 FSR2:PGMTO and FSR2:ERSEND when Flash Memory Programming Failed with
Flash Memory Sector Erase Suspended
FSR:RDY
FSR3:PGMS
FSR3:SERS
FSR3:ESPS
FSR3:HANG
FSR2:ERSTO
Sector erase command
Sector erase timeout Reset command
FSR:RDY
FSR3:PGMS
FSR3:SERS
FSR3:ESPS
FSR3:HANG
FSR2:PGMEND
FSR2:ERSEND
Sector erase
command
Sector erase
suspend
command
Program
command
Sector erase
suspend
resume command
FSR:RDY
FSR3:PGMS
FSR3:SERS
FSR3:ESPS
FSR3:HANG
FSR2:PGMTO
FSR2:ERSTO
FSR2:ERSEND
Sector erase
command
Sector erase
suspend
command
Program
command
Program
timeout
Reset
command
Sector erase
suspend
resume command
