108 Upgrade and Maintenance Manual MX130 S2
HDDs and accessible drives
Ê Disconnect cables to the ODD.
3 Power cable connector P4 (see "Power cable T26139-Y4012-V211"
on page 239)
4 SATA cable T26139-Y4028-V201
Ê Close the front cage as described in section "Closing the front cage" on
page 53.

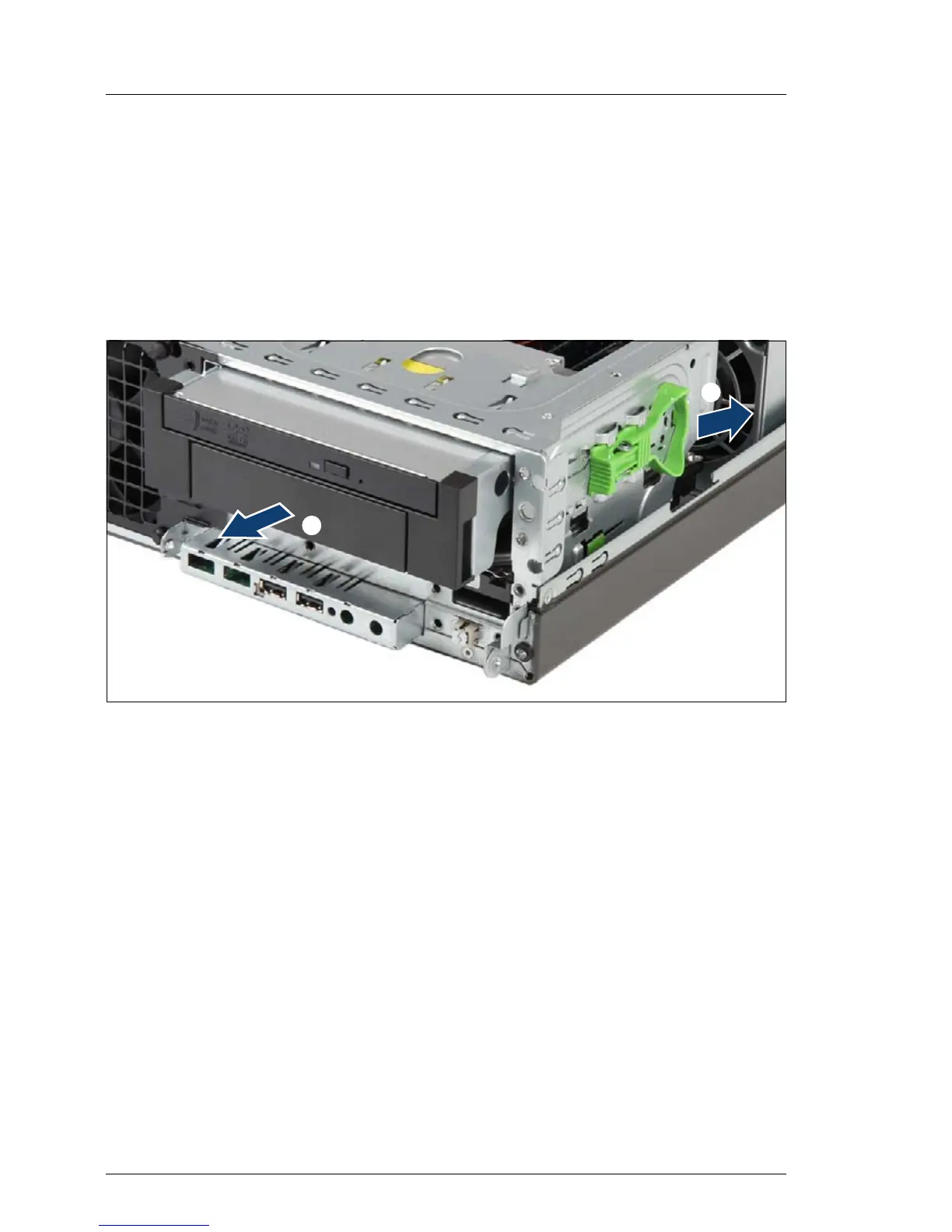

Figure 47: Removing the 5.25-inch ODD/HDD bracket
Ê Push the green handle backward (1) and pull the ODD/HDD bracket out of
its bay (2).
V CAUTION!
Always replace dummy modules into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
/
