MX130 S2 Upgrade and Maintenance Manual 147
System fan
8.1.3 Removing the system fan module

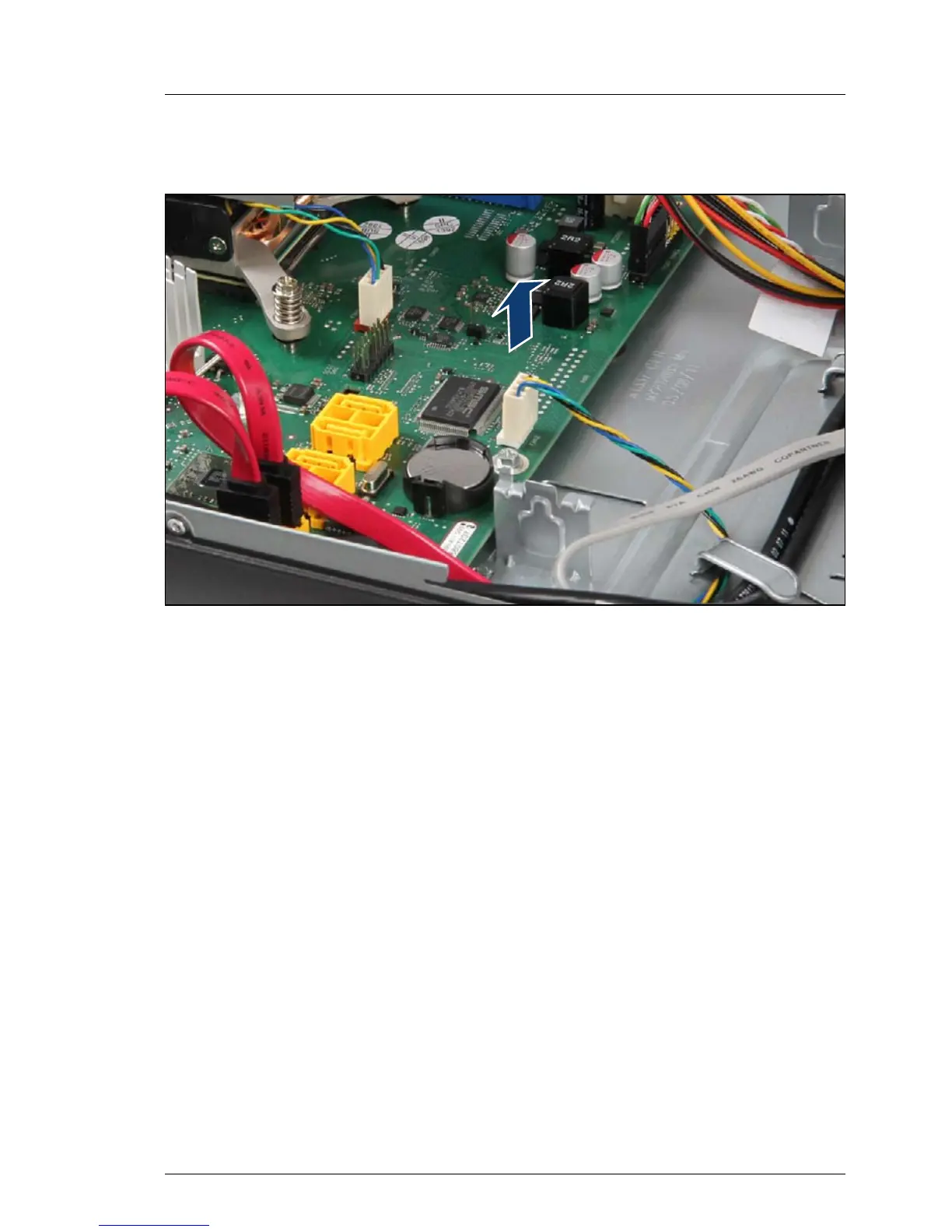

Figure 81: Disconnecting the cable of the system fan module
Ê Disconnect the fan cable from system board connector FAN2.
