15.3.1.4 I/O panel indicators

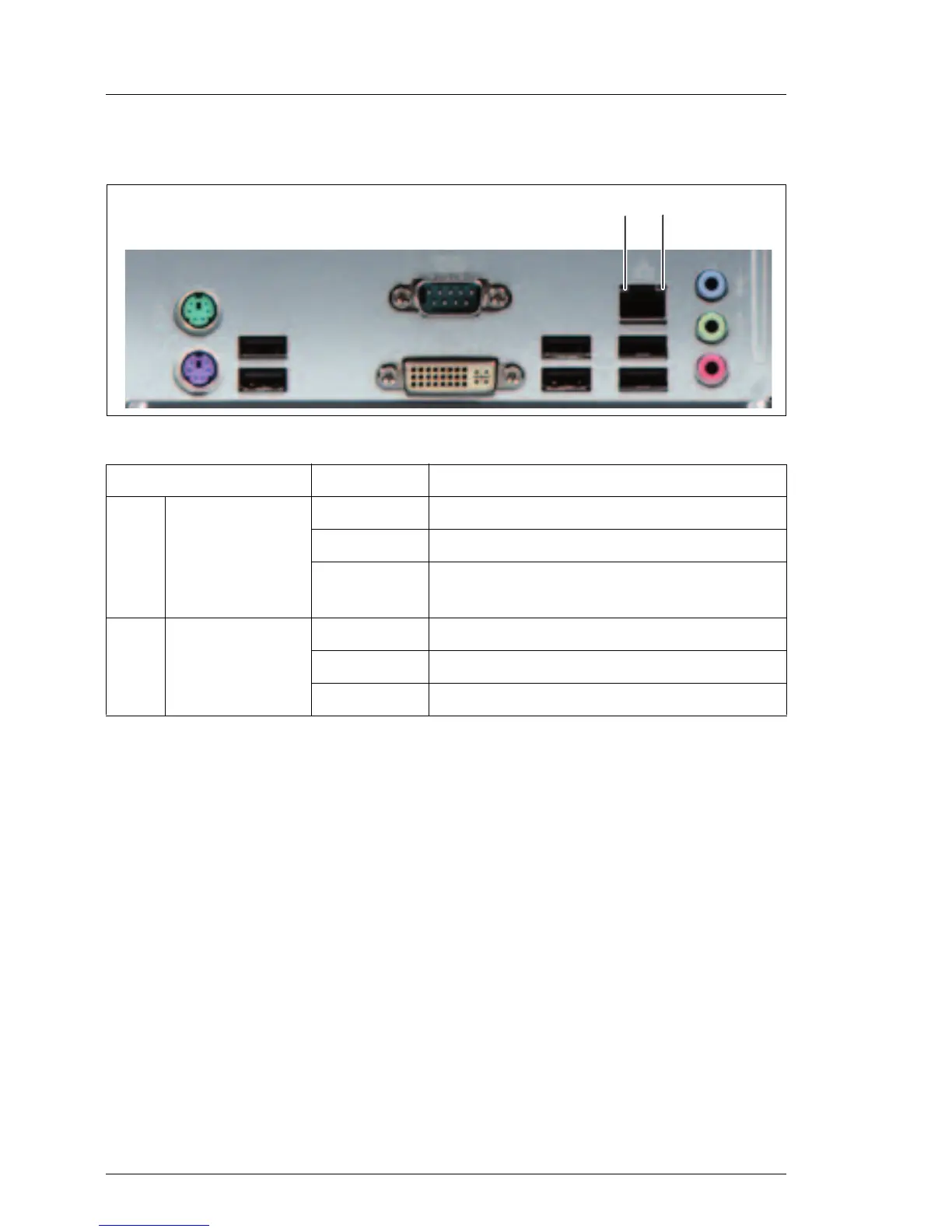

Figure 163: Indicators on the connector panel: LAN indicators

I Note on the onboard LAN controller

The system board is equipped with a Gigabit Ethernet Controller that

supports transfer rates of 10 Mbit/s, 100 Mbit/s and 1 Gbit/s.

Indicator Status Description

LAN

link/transfer

green on LAN connection established

off no LAN connection

green

flashing

data transfer in progress

2 LAN speed

yellow on traffic a transfer rate of 1 Gbit/s

green on traffic a transfer rate of 100 Mbit/s

off traffic a transfer rate of 10 Mbit/s
