76 Upgrade and Maintenance Manual MX130 S2
Power supply
6.1.1.6 Reconnecting internal power cables

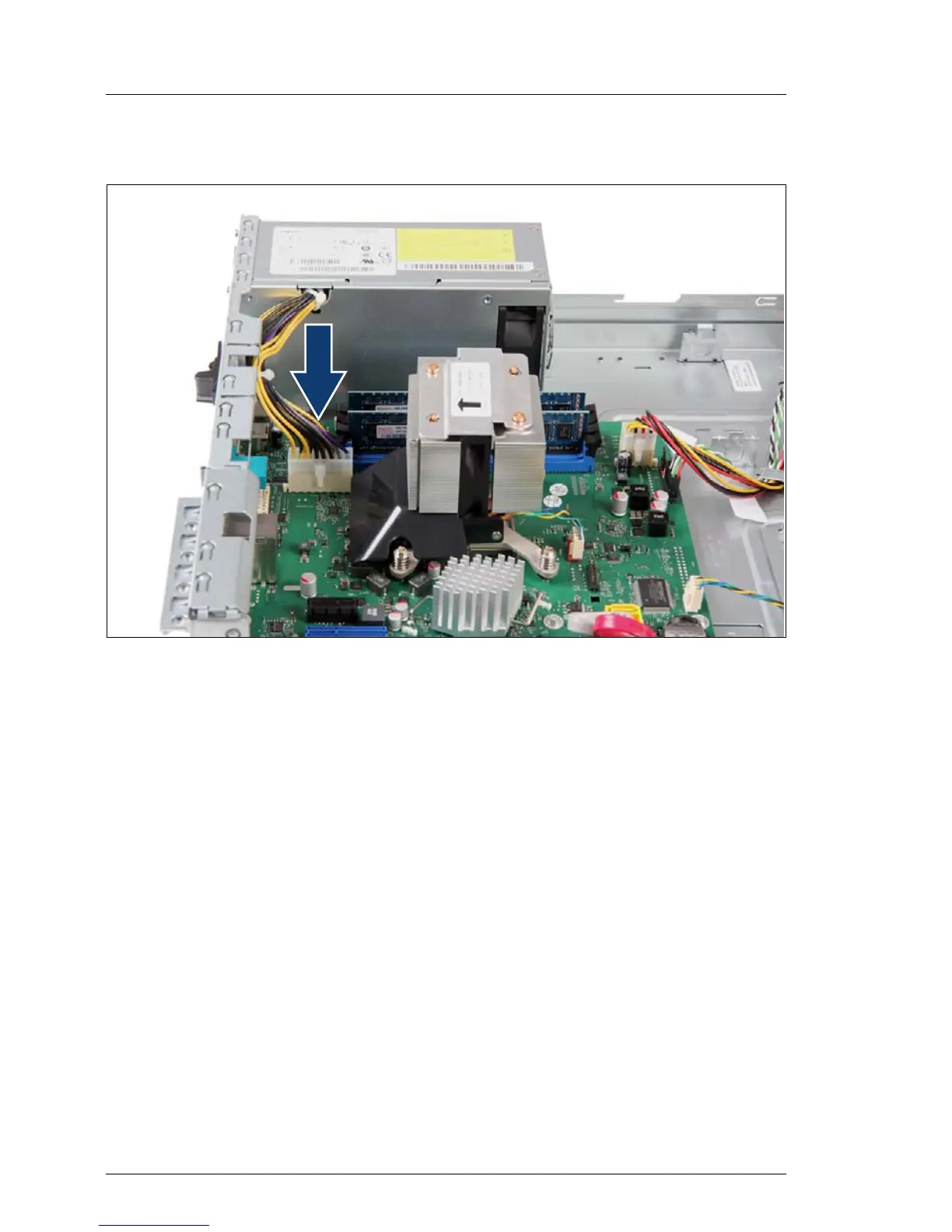

Figure 20: Connecting internal power cables
Ê Connect the PSU ATX power connector to system board connector
POWER12V.
