126 Upgrade and Maintenance Manual MX130 S2
HDDs and accessible drives
7.16.3 Removing a slimline ODD out of 5.25-inch
ODD/HDD bracket

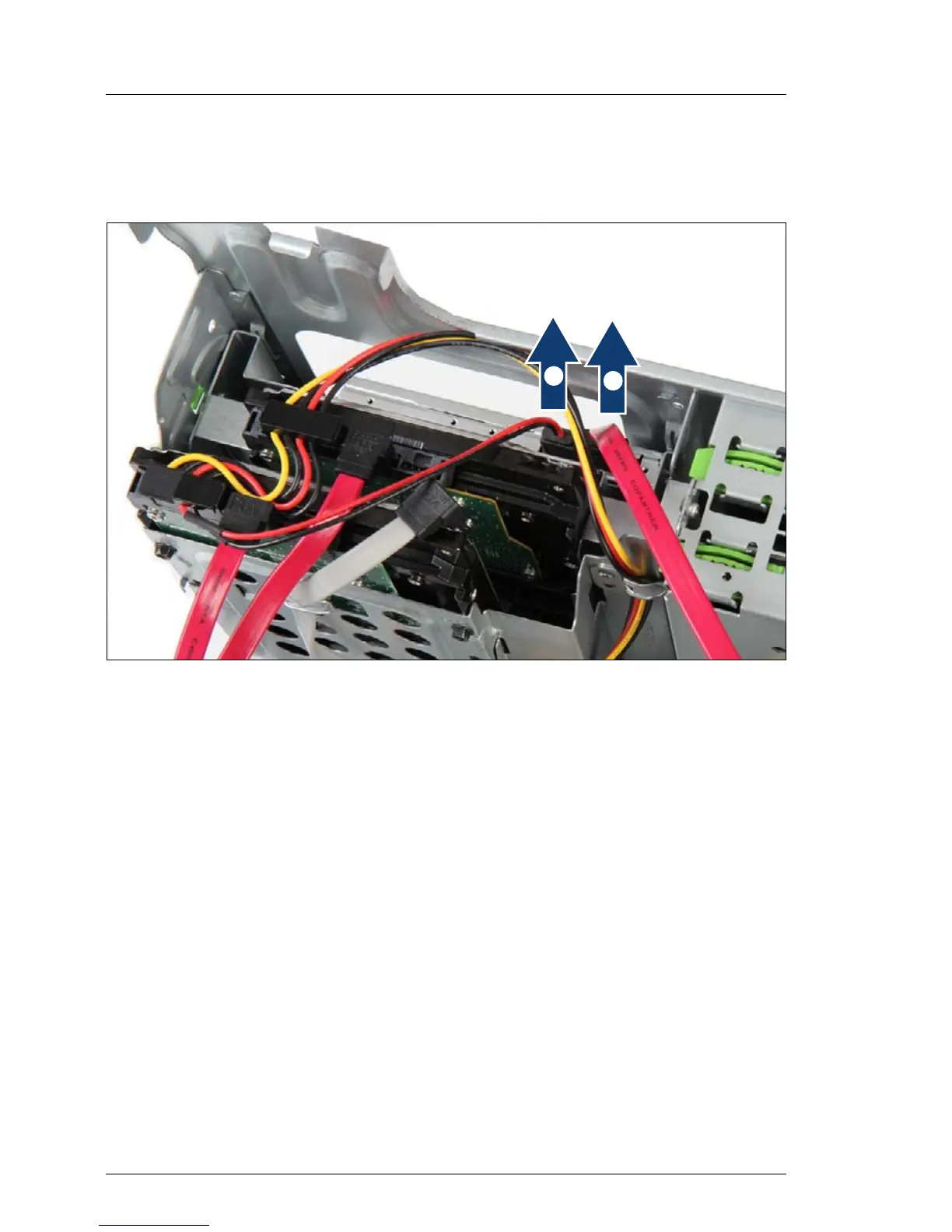

Figure 63: Disconnecting cables of the slimline ODD in 5.25-inch ODD/HDD bracket
Ê Disconnect cables to the slimline ODD.
1 Power cable connector P4 (see "Power cable T26139-Y4012-V211"
on page 239)
2 SATA cable T26139-Y4028-V201
Ê Close the front cage as described in section "Closing the front cage" on
page 53.
/
