124 Upgrade and Maintenance Manual MX130 S2
HDDs and accessible drives
Ê Open the front cage as described in section "Opening the front cage" on
page 52.

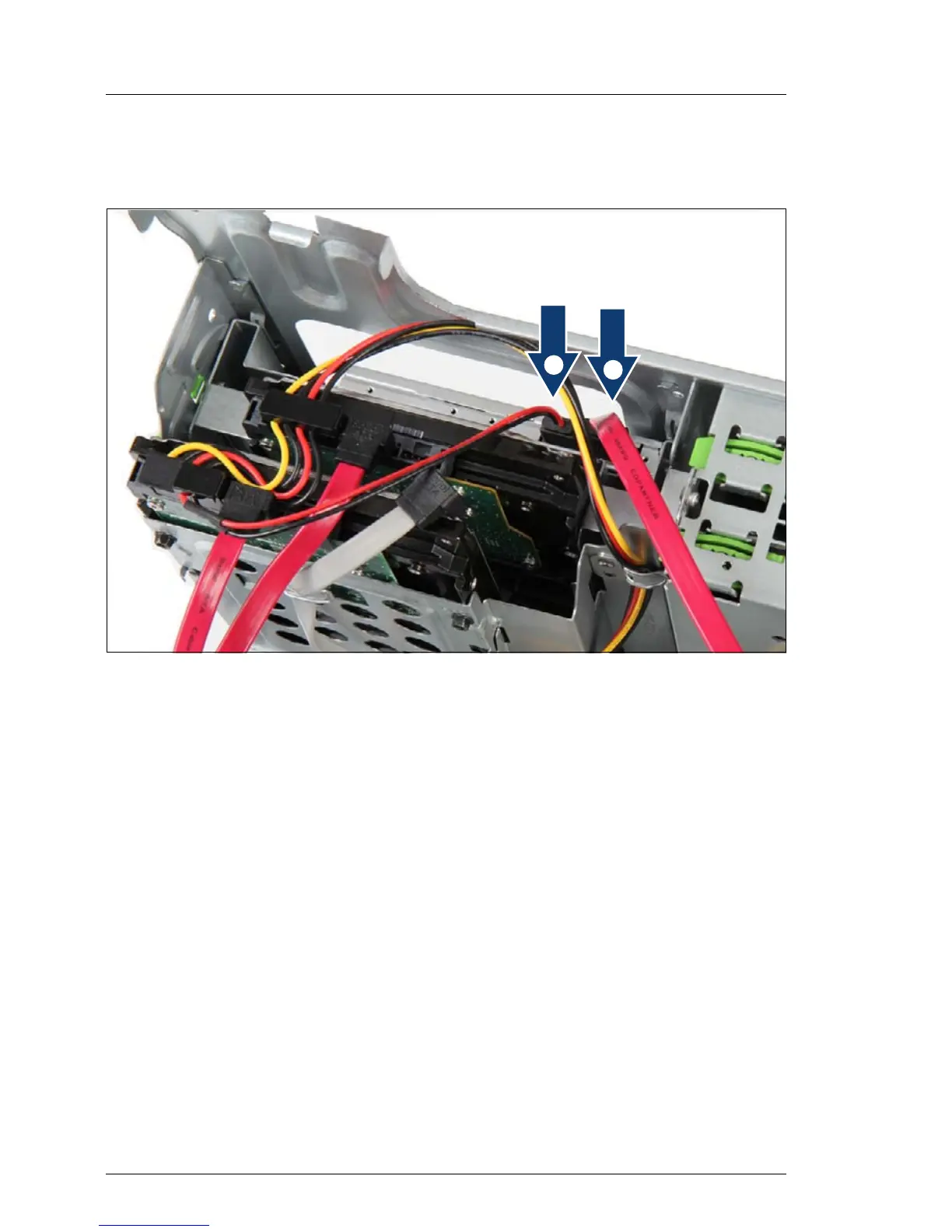

Figure 62: Connecting cables of the slimline ODD in 5.25-inch ODD/HDD bracket
Ê Connect cables to the slimline ODD.
1 Power cable connector P4 (see "Power cable T26139-Y4012-V211"
on page 239)
2 SATA cable T26139-Y4028-V201
7.15.4 Concluding steps
Perform the following procedures to complete the task:
Ê Close the front cage as described in section "Closing the front cage" on
page 53.
Ê Follow all procedures described in section "Closing the server" on page 54.
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task, re-enable BitLocker as described in section "Enabling
BitLocker functionality" on page 66.
/
