122 Upgrade and Maintenance Manual MX130 S2
HDDs and accessible drives
7.15.3 Installing a slimline ODD in 5.25-inch ODD/HDD
bracket

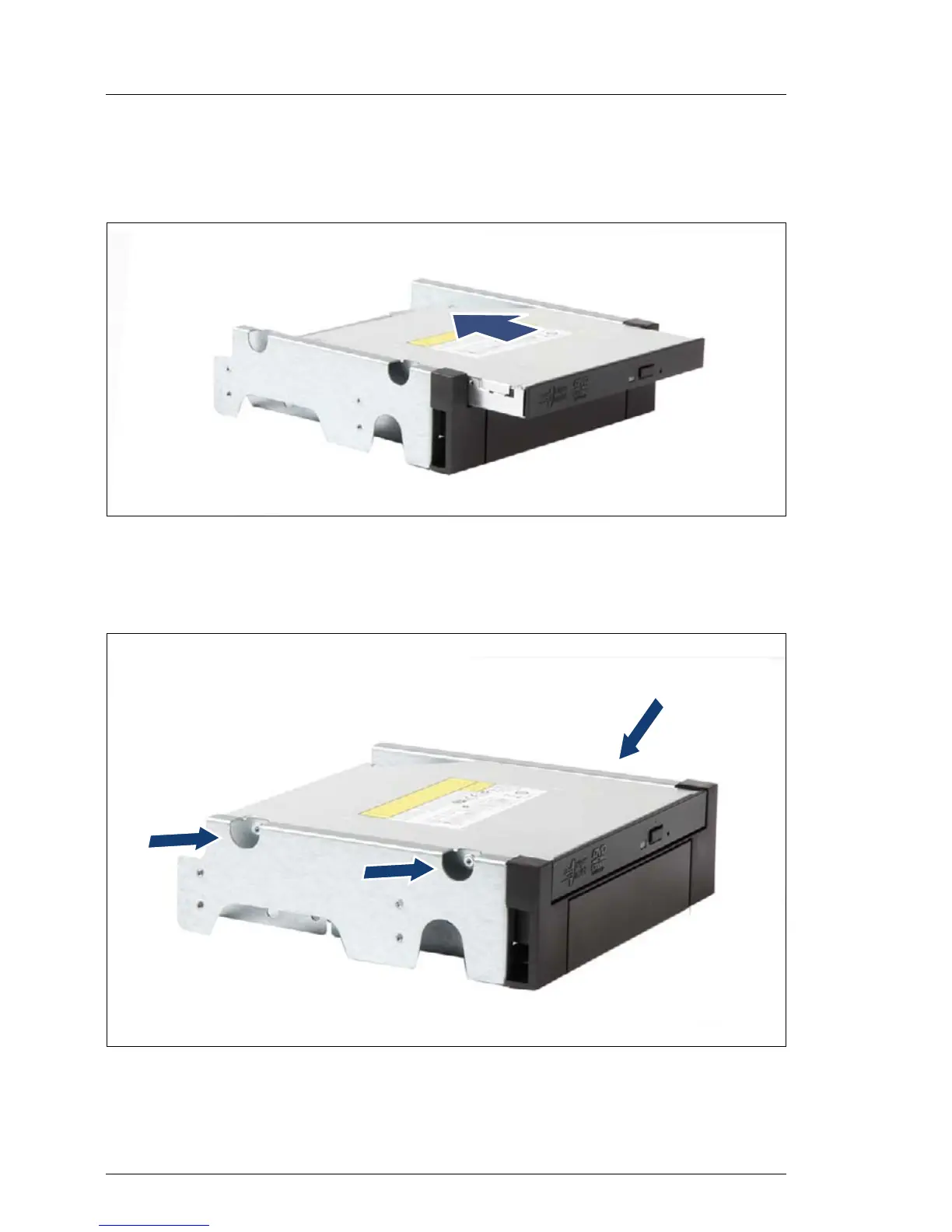

Figure 58: Installing the ODD in the 5.25-inch ODD/HDD bracket
Ê Insert the ODD into its installation bay and carefully push in until the screw
holes are matching.
Figure 59: Fastening the screws
Ê Fasten the three screws.
