MX130 S2 Upgrade and Maintenance Manual 243
Cables

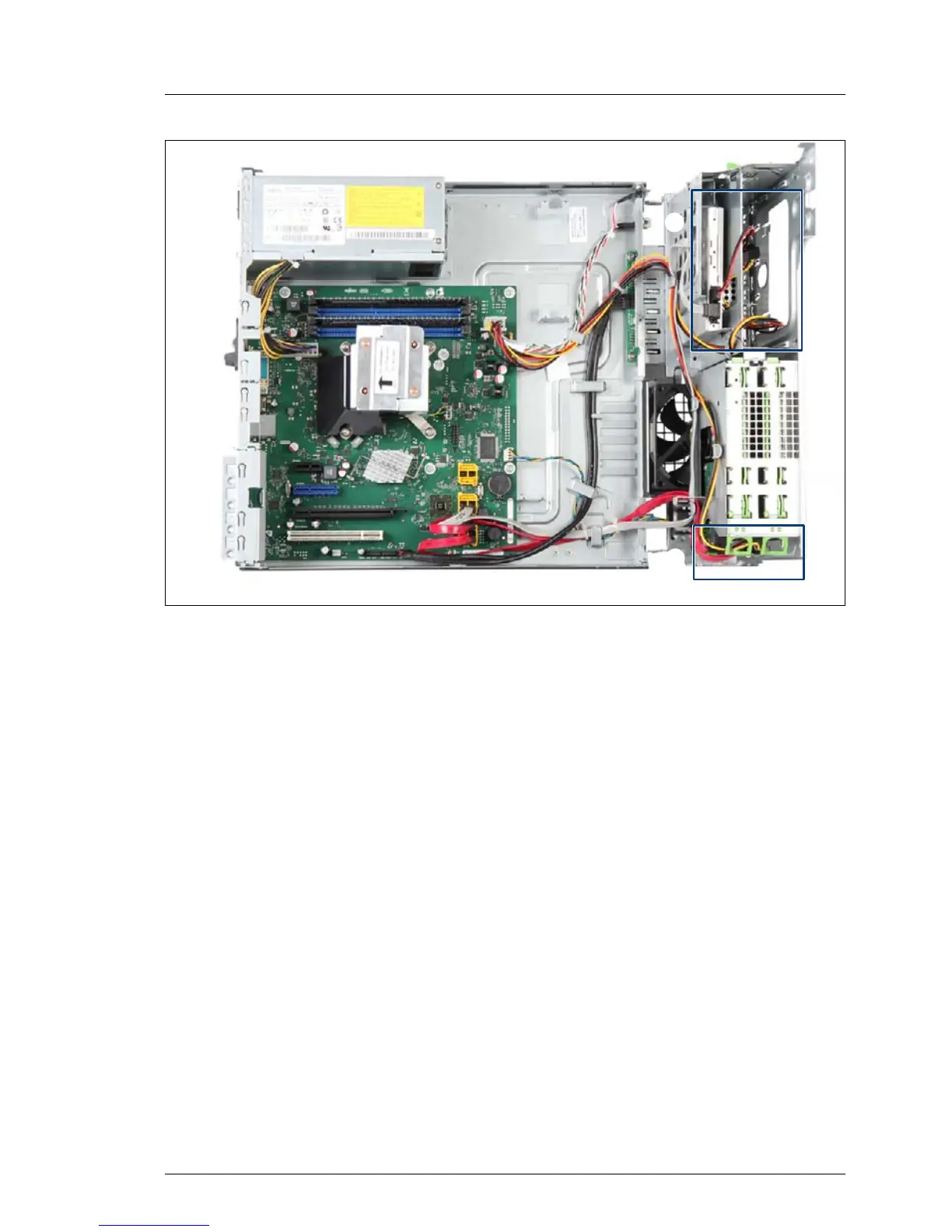

Figure 156: Connecting the power cable
Ê Connect all power cable connectors to the installed drives (1).
It depends on your configuration which drives are installed. For details refer
to section "HDDs and accessible drives" on page 79.
Ê Connect the power cable connectors P5 and P6 to the installed HDDs (2).
For details refer to section "HDDs and accessible drives" on page 79 and
"Power cabling" on page 235.
14.3.5 Concluding steps
Perform the following procedures to complete the task:
Ê Follow all procedures described in section "Closing the server" on page 54.
/
