MX130 S2 Upgrade and Maintenance Manual 93
HDDs and accessible drives

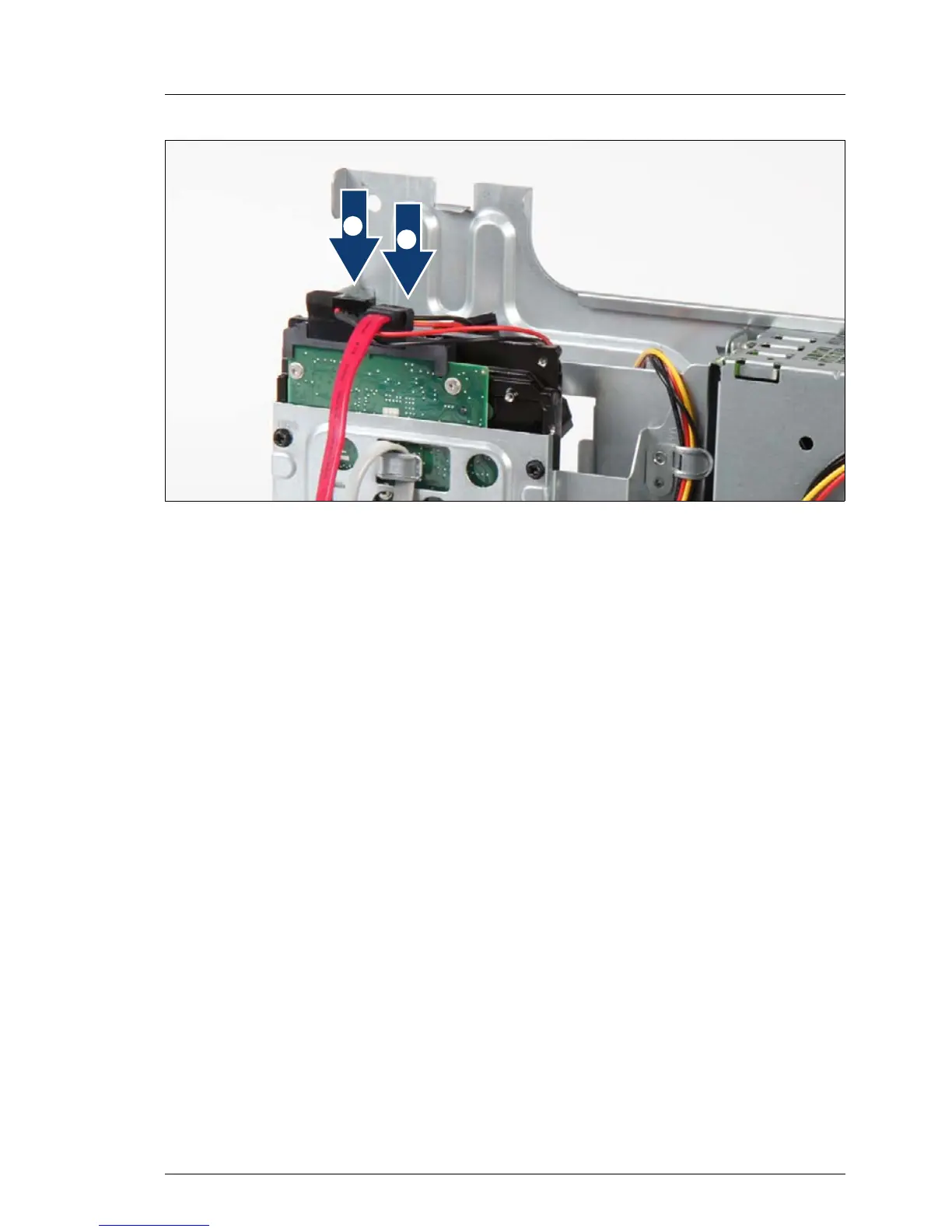

Figure 32: Connecting the cables to the HDD
Ê Connect cables to the HDD.
1 Power cable connector P3 (see "Power cable T26139-Y4012-V211"
on page 239)
2 SATA cable T26139-Y4028-V153
7.5.4 Concluding steps
Perform the following procedures to complete the task:
Ê Close the front cage as described in section "Closing the front cage" on
page 53.
Ê Follow all procedures described in section "Closing the server" on page 54.
Ê Please observe the notes on RAID rebuild in section "Performing a RAID
array rebuild" on page 67.
/
