MX130 S2 Upgrade and Maintenance Manual 167
Expansion cards
9.2.2.4 Installing a PCI slot bracket
V CAUTION!
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.

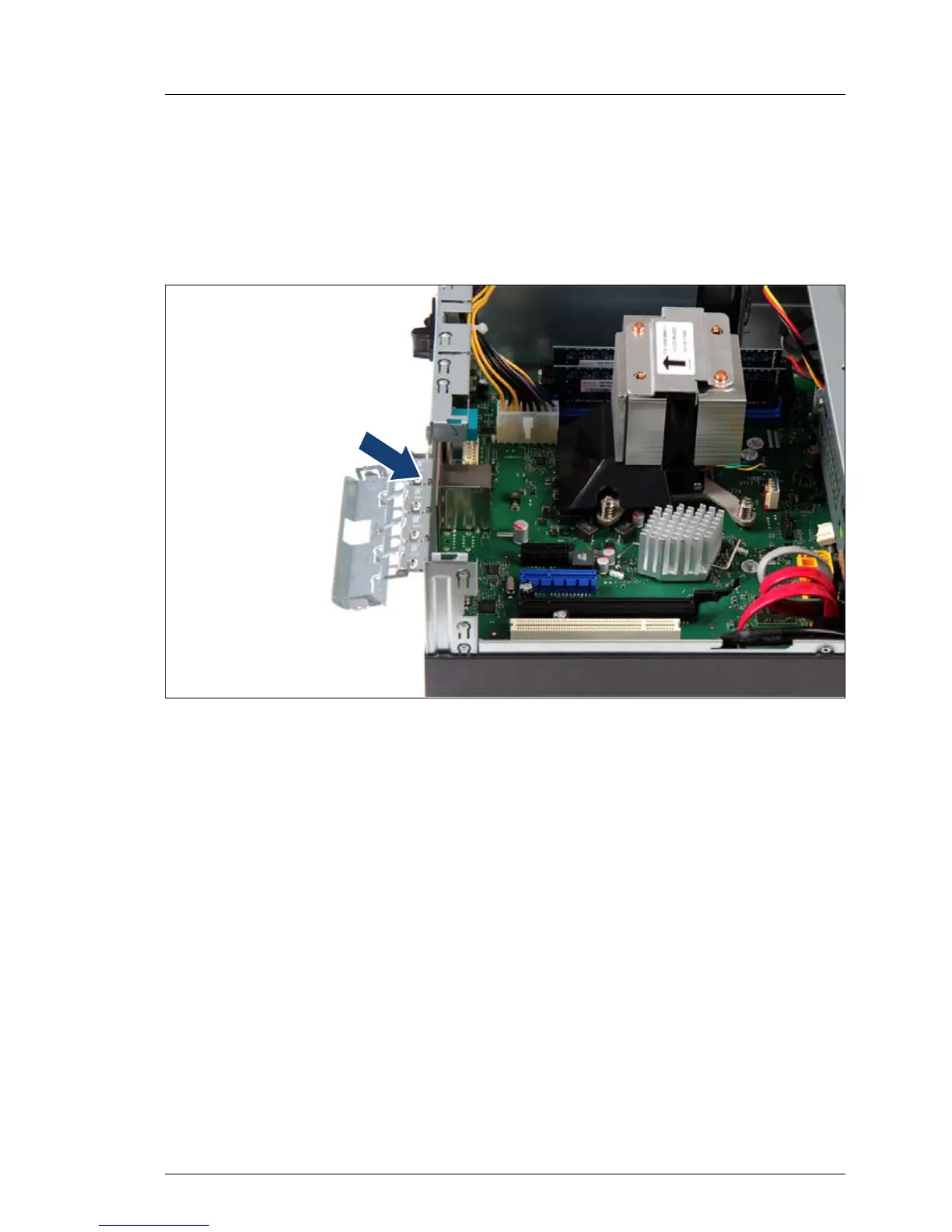

Figure 102: Installing a PCI slot bracket
Ê Insert a PCI slot bracket into the unused PCI slot opening.
Ê Fold down slot bracket clamp until it locks in place.
9.2.2.5 Concluding steps
Perform the following procedures to complete the task:
Ê Follow all procedures described in section "Closing the server" on page 54.
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task, re-enable BitLocker as described in section "Enabling
BitLocker functionality" on page 66.
