240 Upgrade and Maintenance Manual MX130 S2

Cables

14.3.3 Removing the power cable

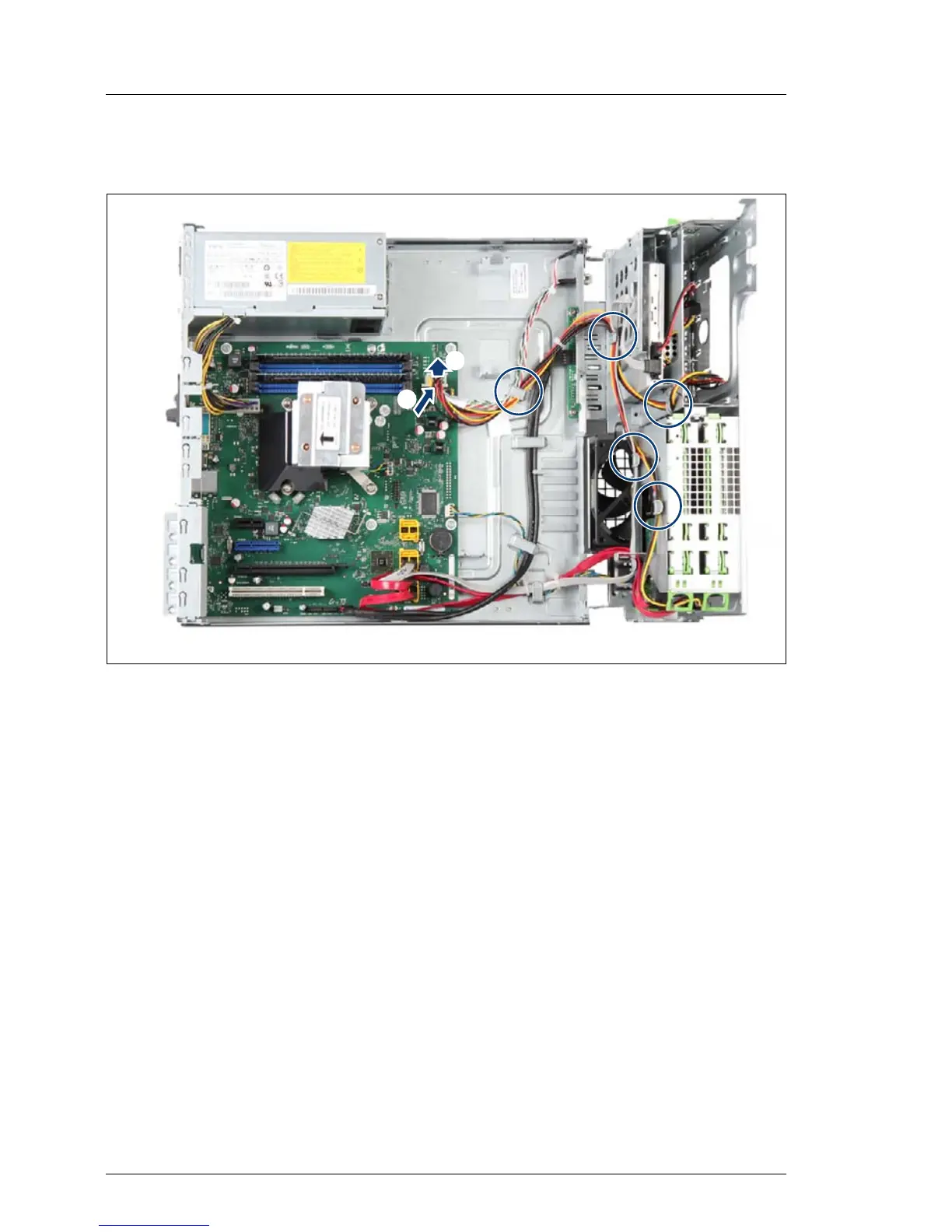

Figure 153: Detaching the power cable

Ê While pressing the release latch on the connector (1), disconnect the power

cable from the POWER SATA connector on the system board (2).

Ê Remove the power cable T26139-Y4012-V211 from the five cable clamps

(see circles).
