Expansion cards
9.1 Basic procedure
The system board is equipped with four expansion slots:

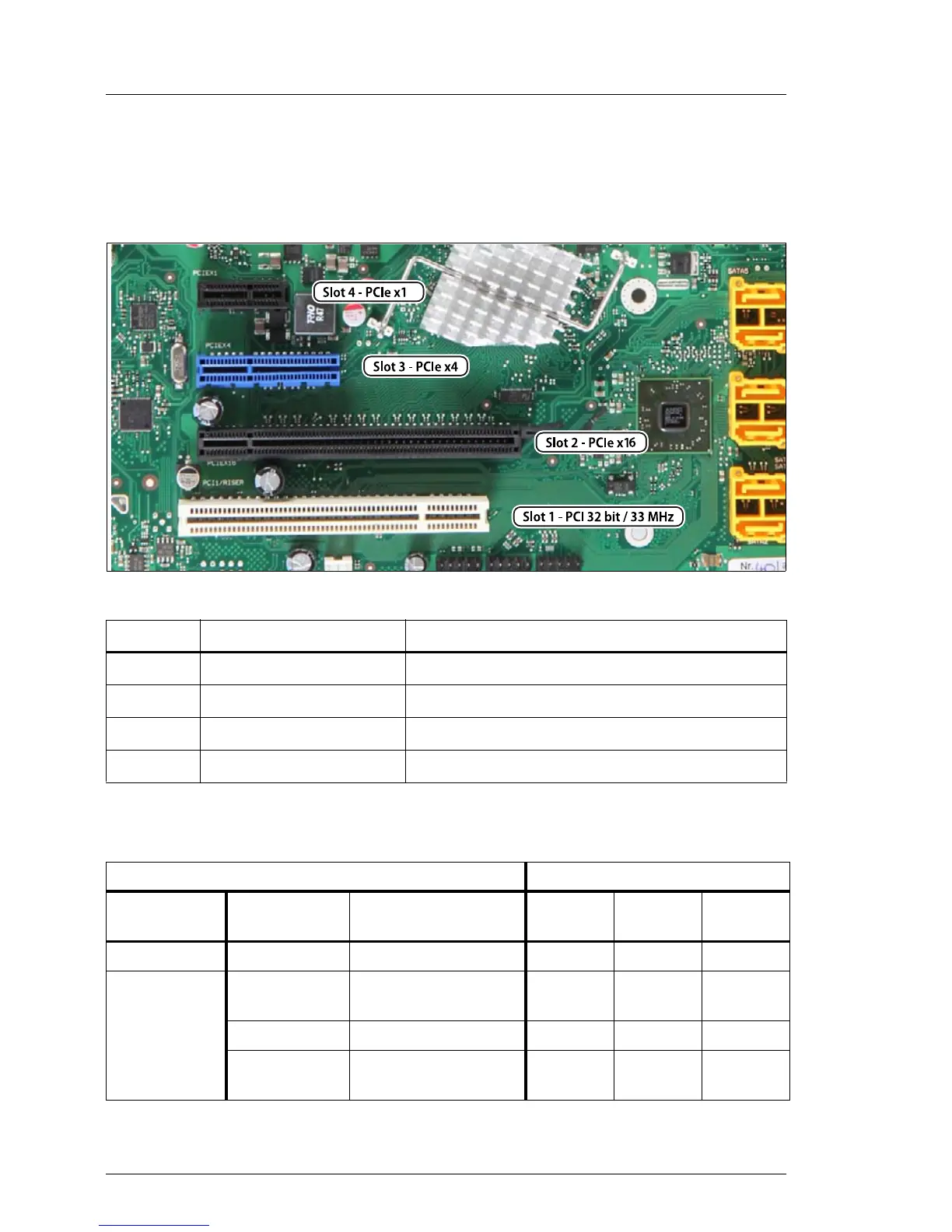

Figure 97: PCI slot overview
Slot sequence
PCI slot Type Function
1 PCI 32 bit / 33 MHz
2 PCIe x16 (mechanical width: x16)
3 PCIe x4 (mechanical width: x4)
4 PCIe x1 (mechanical width: x1)
Expansion Card Slot number / bus type
Type Vendor Model
Slot 2
PCIe x16
Slot 3
PCIe x4
Slot 4
PCIe x1
SATA Onboard AMD 880G Chipset - - -
Ethernet
Onboard
Broadcom
Broadcom BCM
57780
---
Broadcom Dash LAN D2907 - - o
Intel
Quad Port FJ D2745
Server Adapter
-o-
Table 4: Expansion card slot sequence
