232 Upgrade and Maintenance Manual MX130 S2
Front panel and front USB

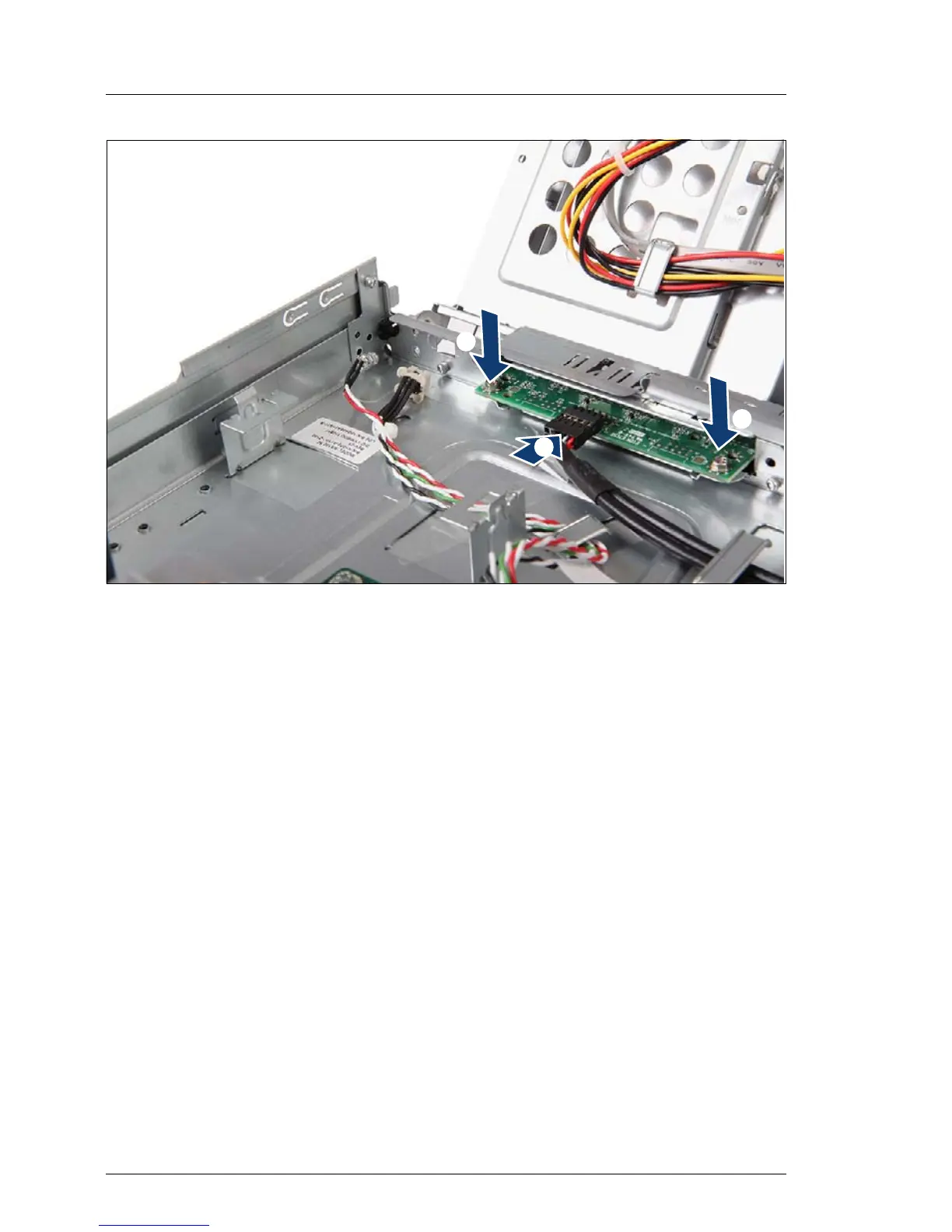

Figure 147: Connecting the USB front cable
Ê Secure the new front USB board with two screws (1)
Ê Connect the front USB cable to the front USB board (2).
13.2.5 Concluding steps
Ê Close the front cage as described in section "Closing the front cage" on
page 53.
Ê Follow all procedures described in section "Closing the server" on page 54.
