HDDs and accessible drives
Ê Open the front cage as described in section "Opening the front cage" on
page 52.

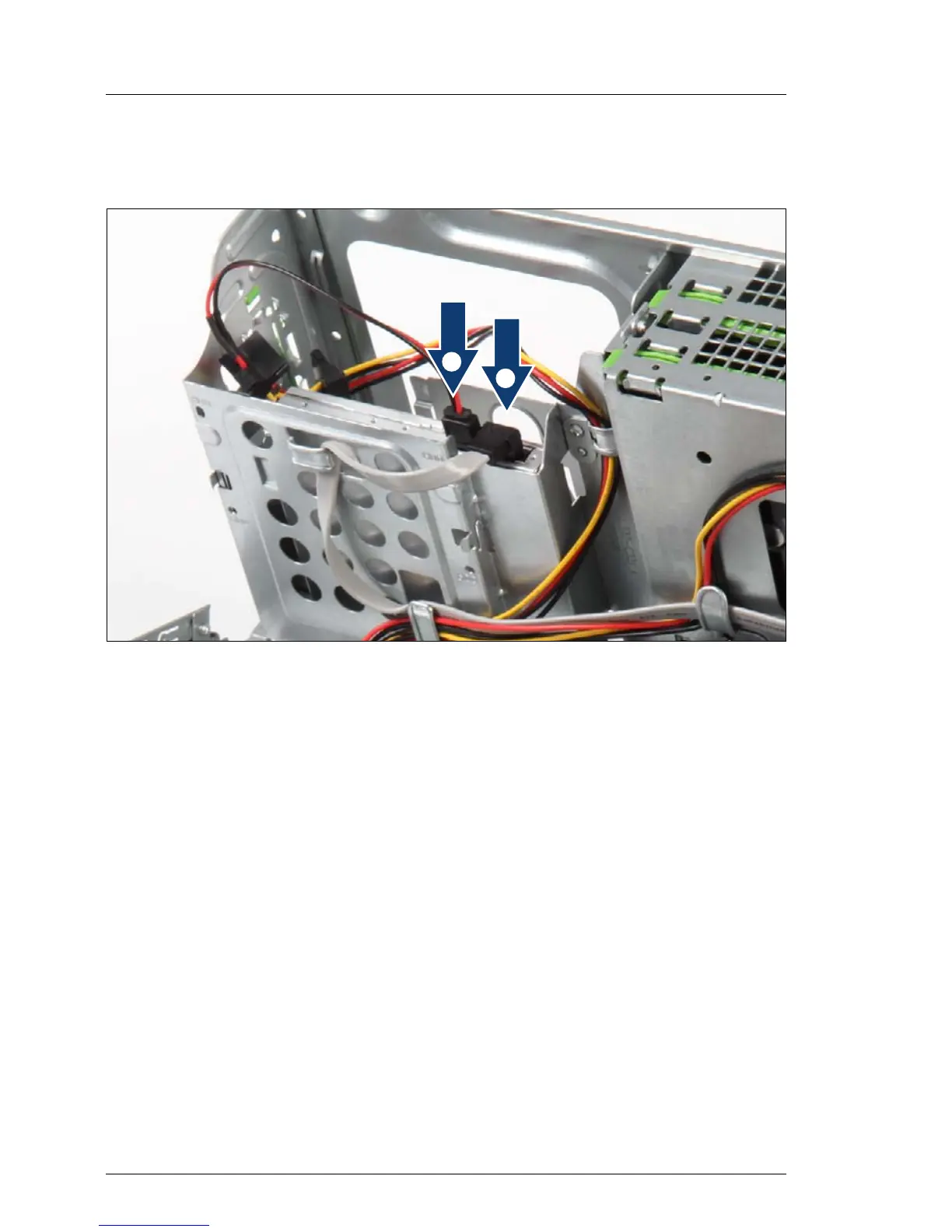

Figure 77: Connecting cables to the ODD
Ê Connect cables to the ODD.
1 Power cable connector P4 (see "Power cable T26139-Y4012-V211"
on page 239)
2 SATA cable T26139-Y4028-V102
/
