164 Upgrade and Maintenance Manual MX130 S2
Expansion cards

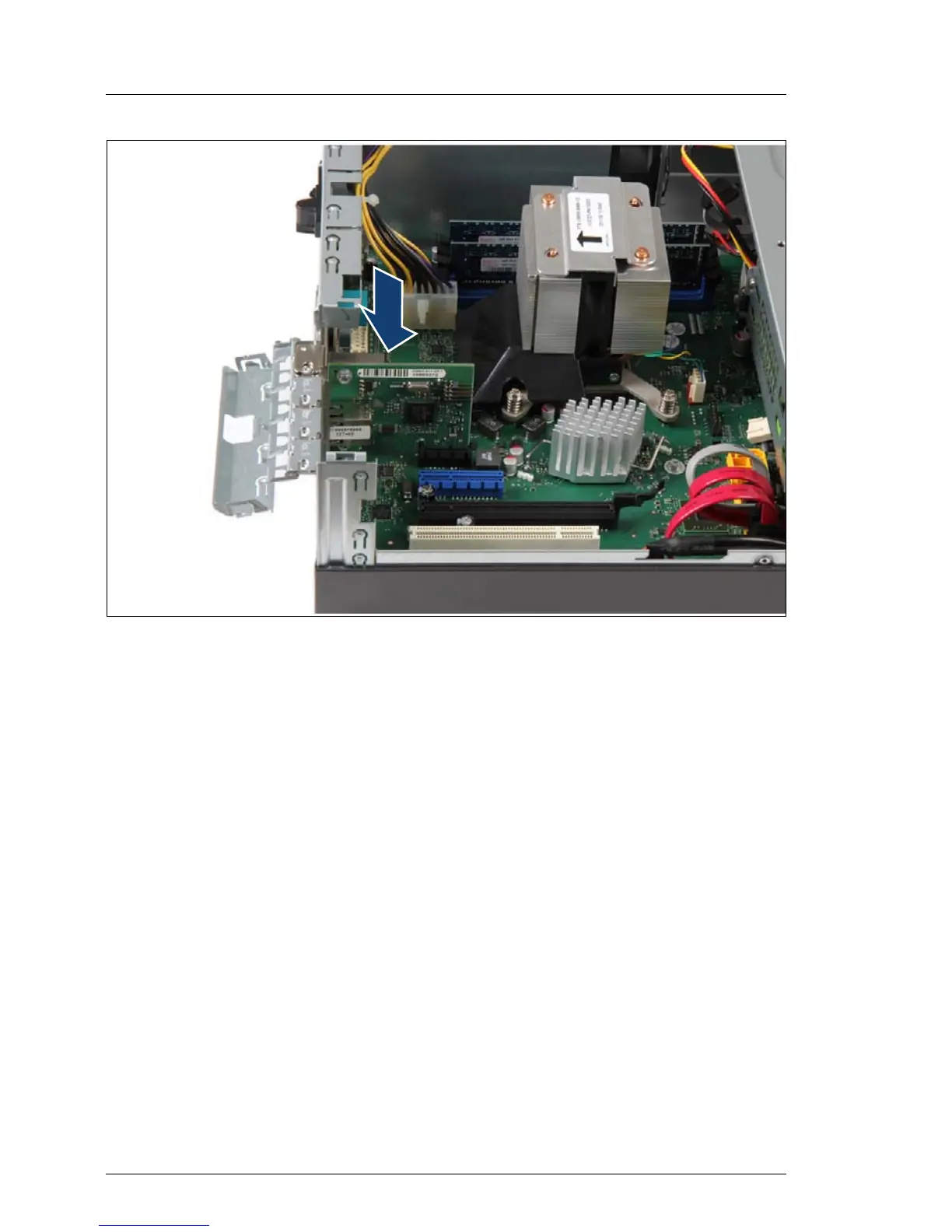

Figure 100: Installing the expansion card
Ê Carefully insert the expansion card into the desired PCI slot and press down
firmly until it is fully seated in the slot.
Ê Fold down slot bracket clamp until it locks in place.
