Fujitsu PRIMERGY RX1330 M5 User Manual

Installing the new 4x 2.5-inch HDD backplane
A
A

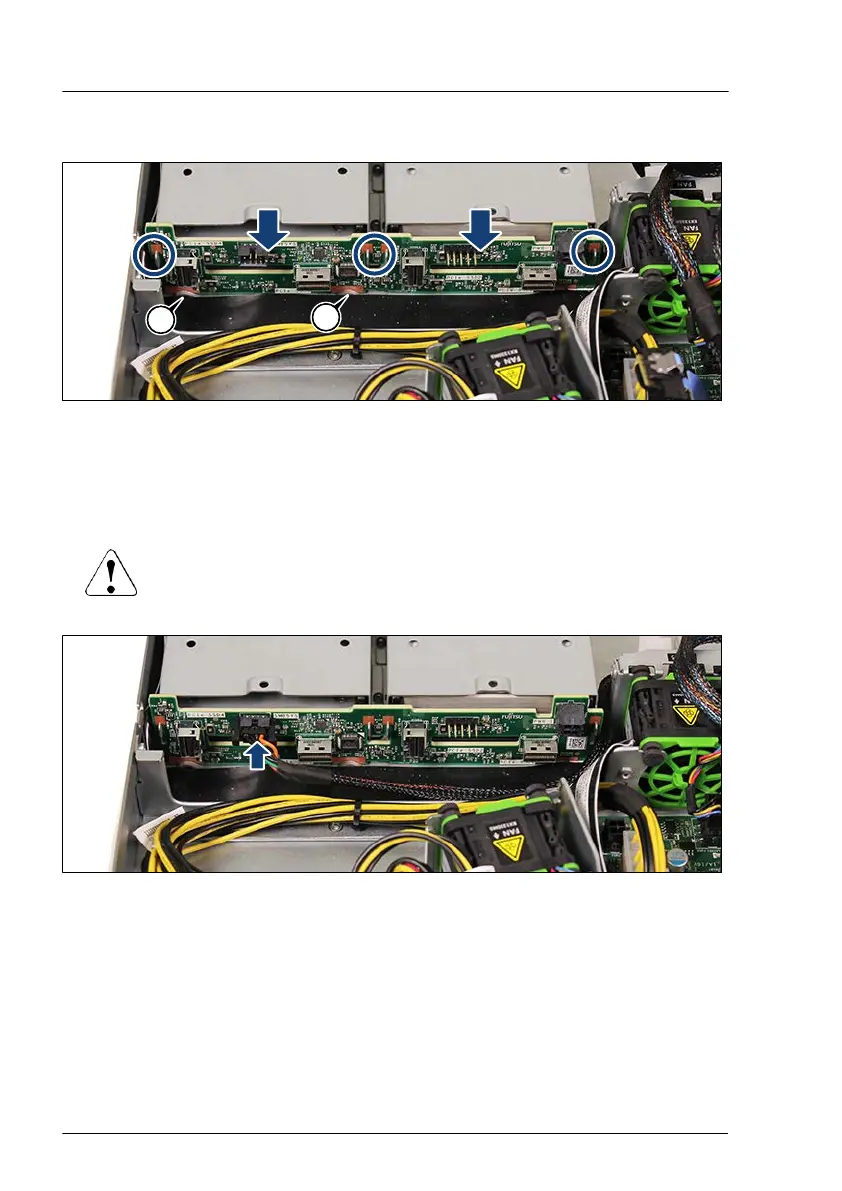

Figure 89: Installing the 4x 2.5-inch HDD backplane (NVMe variant)
▶
Position the HDD backplane on the four hooks (see circles).
▶
Push the HDD backplane downward. Make sure that the HDD backplane fits
behind the guide pins (A).
CAUTION
▶
Ensure that none of the cables are strained or damaged!
Figure 90: Connecting the OOB cable (NVMe variant)
▶
Connect the OOB cable to the HDD backplane.
Hard disk drive (HDD) / solid state disk (SSD)
156 Upgrade and Maintenance Manual RX1330 M5

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
